FX-Block Versatile High-Brightness LED Displays With Superior Durability
High Brightness LED Displays
,Versatile LED Displays
,Superior Durability LED Displays
FX-Block Versatile, High-Brightness LED Displays with Superior Durability
Product Description

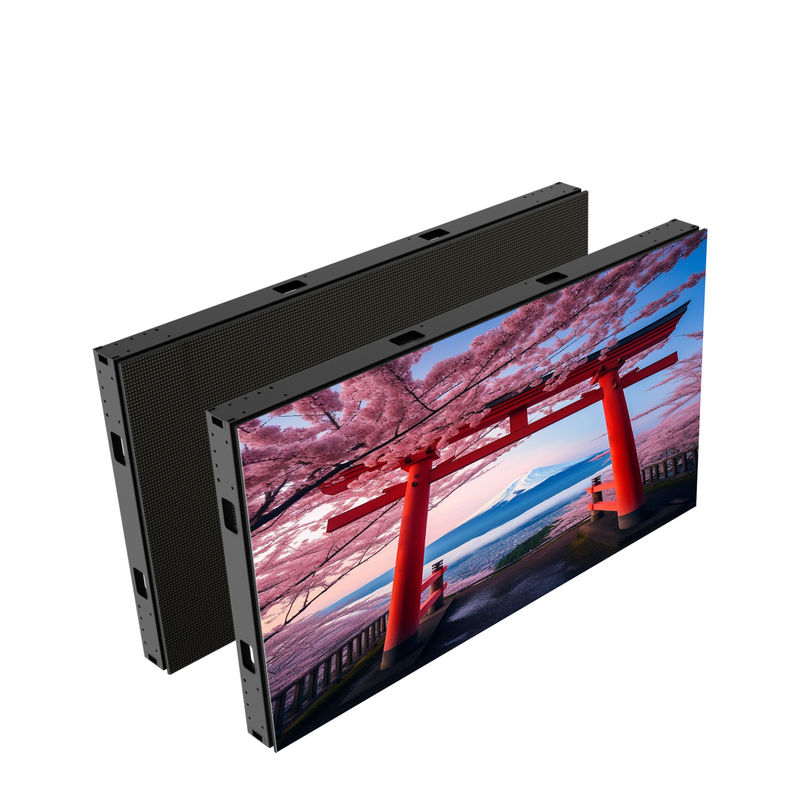

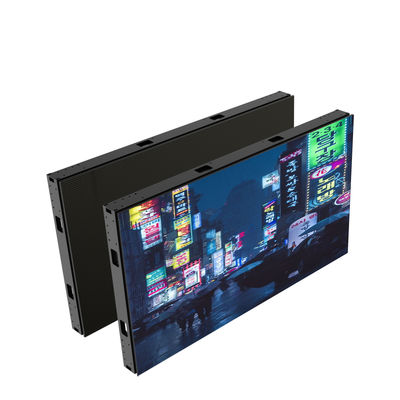

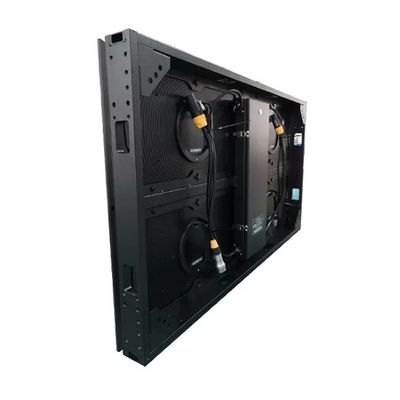

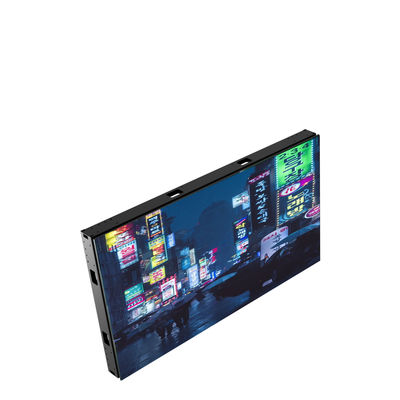

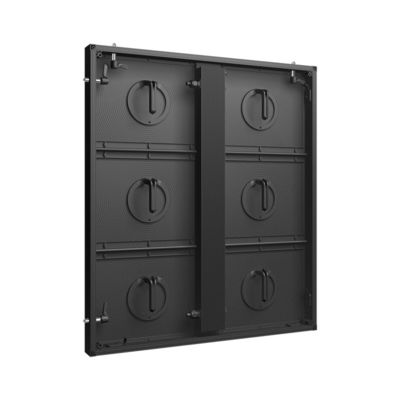

The FX-Block LED display series offers versatile, high-brightness solutions for indoor and outdoor use. With IP54/IP65 ratings and excellent durability, these displays provide smooth, vibrant visuals in all conditions. Lightweight and easy to install, the FX-Block series delivers reliable performance and flexibility for any application.
Product Feature
Versatile Outdoor and Indoor Options
These LED displays are suitable for both indoor and outdoor applications, offering flexible options depending on your needs. The outdoor models feature higher brightness levels, ensuring vibrant visibility even under direct sunlight.
High Brightness and Low Power Consumption
The displays deliver exceptional brightness while maintaining energy efficiency, offering top-quality visuals while keeping operational costs in check.
Superior Durability and Protection
With an IP54 or IP65 rating (depending on the model), the displays are built to withstand harsh weather conditions, offering high protection against dust and water, making them ideal for outdoor use. The wide temperature range ensures reliable performance in both hot and cold environments.
Technical Parameters
| Model | FXBOutdoor3.75 | FXBOutdoor3.75 | FXBIndoor 5 | FXBOutdoor 5 | FXBOutdoor 7 |
| Pixel Pitch | 3.75mm | 3.75mm | 5mm | 5mm | 7mm |
| LED Type | SMD2020 | SMD1921 | SMD2020 | SMD1921 | SMD2727 |
| Module SIze | 480*270mm | ||||
| Cabinet Dimension | 960*540*73mm | ||||
| Cabinet Material | Aluminum Profile | ||||
| Cabinet Weight | 12.5KG | 13KG | 12.5KG | 13KG | 13KG |
| Brightness | 1000nits |
5000nits |
1000nits | 5500nits | 5500nits |
| Max/Avg Power | 560/196 W/㎡ | 660/223 W/㎡ | 560/196 W/㎡ | 660/231 W/㎡ | 660/231 W/㎡ |
| Refresh Rate | >1920HZ | ||||
| Gray Scale | 14 Bit | ||||
| Viewing Angle | H:140 ° V:120° | ||||
| IP Rating | F:IP20 R:IP54 | F:IP65 R:IP54 | F:IP20 R:IP20 | F:IP20 R:IP20 | F:IP65 R:IP54 |
| Operational Temp | -20℃ —— +60℃ | ||||
| Operational Humidity | 10% —— 90% | ||||
Product Application
Ceremonies, Concerts, Speeches, Weddings, Live Competitions


Q&A
Q1: Why choose Green Visual World?
A1: How to Select = High Quality + Strict Quality Control + Aging Time + Prompt Shipping Time + Professional & Quick Reply + Risk Free
Visual World = Assured Quality + 5 Steps Strict QC + 72 Hours Aging Time + Ship as fast as we can + Superior 99.8% Customer Satisfaction + 2 Years Warranty.
Q2: What kind of LED display do you offer?
A2: Our products cover LED full color display for indoor and outdoor, Rental LED Display, LED advertisement display, LED stage display, LED irregular-shape display, truck mobile led display, LED sports display, LED traffic information display etc.
Q3: Are there big differences in vision and price?
A3: Yes. The closer the pixel distance, the clearer the display screen can be seen, and the price is relatively high.
-
