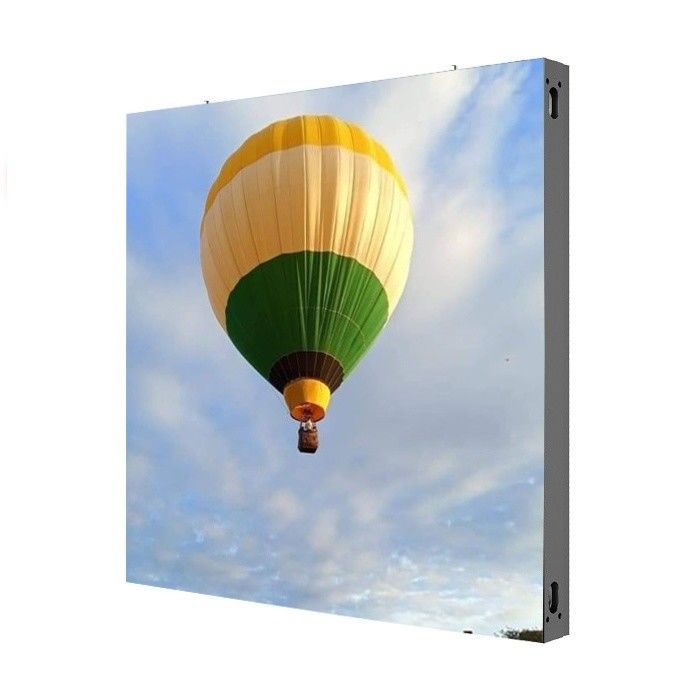

P5.71 Outdoor Fixed LED Display 960x960mm 6000nits Good Heat Dissipation Design
6000nits Outdoor Fixed LED Display
,960x960mm Outdoor Fixed LED Display
,6000nits Outdoor Fixed LED Display
P5.71 Outdoor Fixed LED Display 960x960mm 6000nits Good Heat Dissipation Design
Product Description:
The outdoor LED display's 5.71mm pixel pitch allows it to present high-resolution images, making it ideal for outdoor advertising and information displays. With a brightness of up to 6,000 nits, this display maintains excellent visibility in direct sunlight and is adaptable to a variety of outdoor environments.
Features:

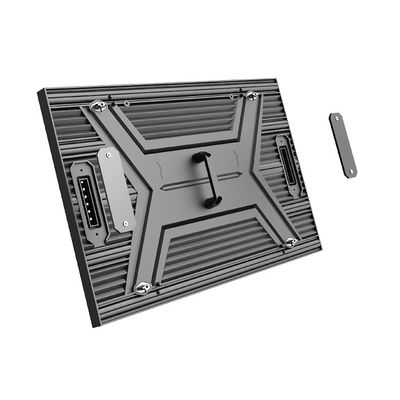

- Dual Port Module
Equipped with two connection ports, these modules allow simultaneous use of both ports, eliminating the need to choose between left or right configurations during installation or maintenance.

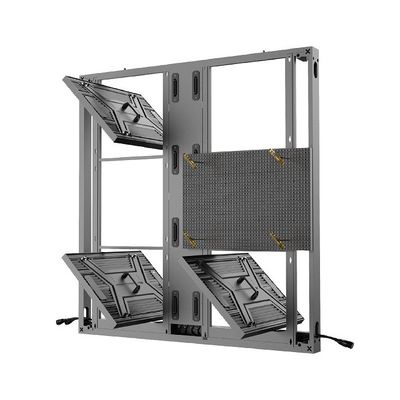

- Front and Rear Service
Both the module and power box are accessible from the front and rear, offering unmatched flexibility and convenience for a variety of project requirements.
- Waterproof Design
With an IP66 protection rating, these displays deliver exceptional durability and stability, making them ideal for outdoor environments.

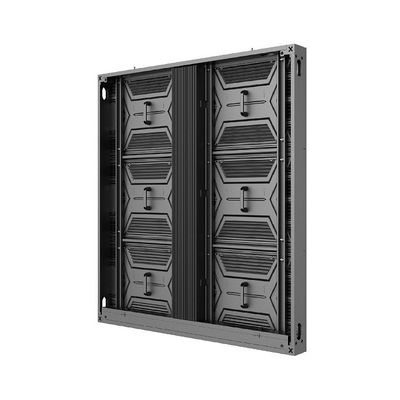

- Efficient Heat Dissipation
The aluminum profile frame and open module design enable effective heat dissipation, enhancing performance and extending the display’s lifespan.
- Hard Connection
Direct module-to-hub board connections eliminate the need for cables, simplifying installation, ensuring precise alignment, and removing the hassle of cable management.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | FIA-Outdoor |
| Pixel Pitch: | 5.71 mm |
| LED Type: | SMD2727 |
| Cabinet Dimension: | 960x960 mm |
| Cabinet Resolution: | 168*168 pixels |
| Module Size: | 480x320 mm |
| Module Resolution: | 84*56 pixels |
| Module Qty/cabinet: | 2x3=6pcs |
| Pixel Density: | 30625 dots/sqm |
| Cabinet Weight: | 22 kg |
| Cabinet Material: | Aluminum profile |
| Cabinet Color: | Black / White |
| Driving Type: | 1/9 |
| Brightness: | 6000 nits |
| Max/Avg Power: | 600/170 W/m2 |
| Maintenance: | Front rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP66 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
- Highway Billboards: Fixed LED displays along highways offer high-visibility advertising with bright, sharp content visible from long distances. Their durable construction ensures reliable performance in all weather conditions.
- Pole LED Walls: Mounted on poles in public spaces and streets, these LED walls are perfect for announcements, advertisements, and public service messages. Their elevated positioning and vibrant displays guarantee excellent visibility, even in daylight.
- Outdoor Advertising: LED screens are highly effective for outdoor campaigns, drawing attention with dynamic, eye-catching content. Ideal for high-traffic locations like shopping centers and plazas, they help brands connect with broad audiences.
Support and service:
Our comprehensive service system is designed to cater to your needs at every stage.
Pre-sale services include prompt responses to inquiries within 24 hours, market research and forecasts, customized solutions tailored to your requirements, and the provision of data sheets and samples. We also offer additional services such as custom packing and arranging factory visits.
In-sale process, we ensure continuous monitoring of production, provide photos and videos upon request, and include free spare parts to enhance your experience.
After-sales support, we address complaints within 24 hours and offer maintenance guidance and solutions within 48 hours. A 24-month warranty, free technician training, and a complete set of documents, including an installation guide, software manual, maintenance guide, and control system software CD back our services.
FAQ:
Q1: Do you accept sample orders?
A1: Yes, we offer sample orders to help you verify quality and conduct market testing.
Q2: Is there a warranty included?
A2: Yes, all products come with a two-year warranty.
Q3: How much does shipping cost?
A3: Shipping costs depend on the weight of the order. We’ll select the most cost-effective and secure option based on the quantity of your order.
Q4: How do you ensure product quality?
A4: We provide a pre-production sample for approval and conduct a thorough final inspection before shipment.
Q5: Can I customize the product?
A5: All products can be customized. Our professional product development team is ready to assist you with your customizations.
-
