P5.71 Outdoor Fixed LED Display SMD2727 960x960mm Cabinet With High Brightness
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, LVD, EMC |
| Model Number: | P5.71 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 8-10 work days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 2000 sqm/month |
|
Detail Information |
|||
| Product Name: | P5.71 Outdoor Fixed LED Display SMD2727 960x960mm Cabinet With High Brightness | Pixel Pitch: | 5.71 Mm |
|---|---|---|---|
| LED Type: | SMD2727 | Cabinet Dimension: | 960x960 Mm |
| Module Size: | 480x320 Mm | Pixel Density: | 30625 Dots/sqm |
| Function: | Module Flash, Synchronous/asynchronous Control, Flame Retardancy | Cabinet Material: | Aluminum Profile |
| Module Connection: | Hard Connection | Brightness: | 6000 Nits |
| Highlight: | SMD2727 Outdoor Fixed LED Display,960x960mm Outdoor Fixed LED Display,P5.71 Outdoor Fixed LED Display |
||
Product Description
P5.71 Outdoor Fixed LED Display SMD2727 960x960mm Cabinet With High Brightness
Product Description:
The outdoor LED display's 5.71mm pixel pitch allows it to present high-resolution images, making it ideal for outdoor advertising and information displays. With a brightness of up to 6,000 nits, this display maintains excellent visibility in direct sunlight and is adaptable to a variety of outdoor environments.
Features:
- Dual Port Module
These modules feature two connection ports, both of which can be used, eliminating the need to choose between a left or right side during installation or repairs.

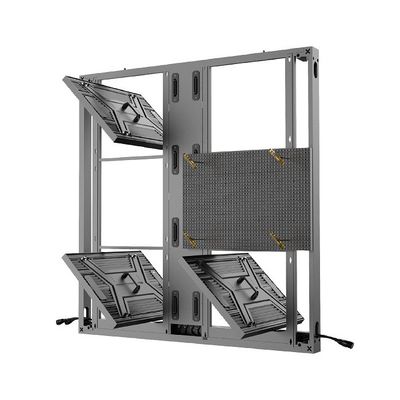

- Front and Rear Service
Both the module and power box can be accessed from either the front or rear, providing flexibility and convenience for various project requirements.
- Waterproof
With an IP66 protection rating, the display is durable and stable, making it ideal for outdoor use.
- Efficient Heat Dissipation

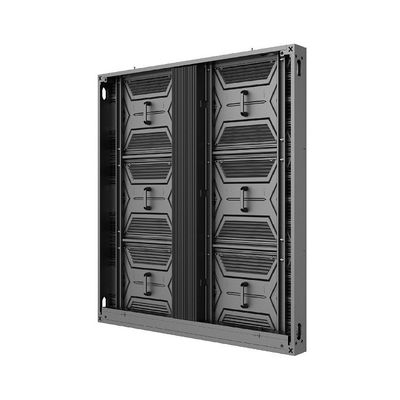

Constructed with an aluminum profile, the frame allows for effective heat dissipation as the open design of the modules enables heat to pass through, extending the display's lifespan.
- Hard Connection
Modules are directly connected to the hub board without the need for cables, offering quick and easy setup with precise alignment, and eliminating the need for cable management.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | FIA-Outdoor |
| Pixel Pitch: | 5.71 mm |
| LED Type: | SMD2727 |
| Cabinet Dimension: | 960x960 mm |
| Cabinet Resolution: | 168*168 pixels |
| Module Size: | 480x320 mm |
| Module Resolution: | 84*56 pixels |
| Module Qty/cabinet: | 2x3=6pcs |
| Pixel Density: | 30625 dots/sqm |
| Cabinet Weight: | 22 kg |
| Cabinet Material: | Aluminum profile |
| Cabinet Color: | Black / White |
| Driving Type: | 1/9 |
| Brightness: | 6000 nits |
| Max/Avg Power: | 600/170 W/m2 |
| Maintenance: | Front rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP66 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
-
Highway Billboards: Fixed LED displays along highways are perfect for high-visibility advertising. They offer bright, clear content to drivers from long distances, and their durability ensures consistent performance in all weather conditions.
-
Pole LED Walls: Mounted on poles in public areas or streets, LED walls are ideal for displaying announcements, advertisements, and public service messages. Their elevated position and vivid display ensure wide visibility, even in daylight.
-
Outdoor Advertising: These screens are widely used in outdoor advertising campaigns due to their ability to attract attention with dynamic content. This ensures brands reach a broad audience in high-traffic areas like shopping centers and plazas.
Support and service:
Our comprehensive service system is designed to cater to your needs at every stage.
Pre-sale services include prompt responses to inquiries within 24 hours, market research and forecasts, customized solutions tailored to your requirements, and the provision of data sheets and samples. We also offer additional services such as custom packing and arranging factory visits.
In-sale process, we ensure continuous monitoring of production, provide photos and videos upon request, and include free spare parts to enhance your experience.
After-sales support, we address complaints within 24 hours and offer maintenance guidance and solutions within 48 hours. A 24-month warranty, free technician training, and a complete set of documents, including an installation guide, software manual, maintenance guide, and control system software CD back our services.
FAQ:
Q1: Do you accept sample orders?
A1: Yes, we offer sample orders to help you verify quality and conduct market testing.
Q2: Is there a warranty included?
A2: Yes, all products come with a two-year warranty.
Q3: How much does shipping cost?
A3: Shipping costs depend on the weight of the order. We’ll select the most cost-effective and secure option based on the quantity of your order.
Q4: How do you ensure product quality?
A4: We provide a pre-production sample for approval and conduct a thorough final inspection before shipment.
Q5: Can I customize the product?
A5: All products can be customized. Our professional product development team is ready to assist you with your customizations.
