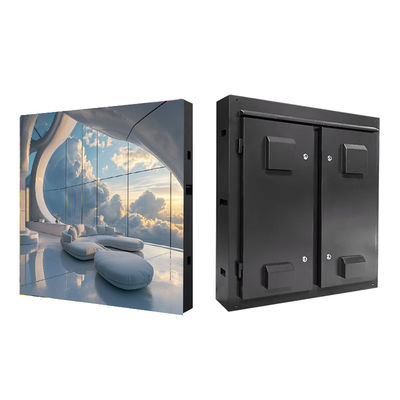

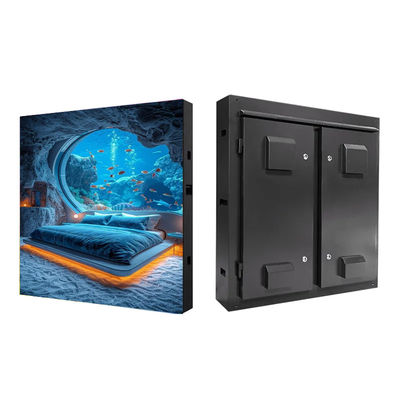

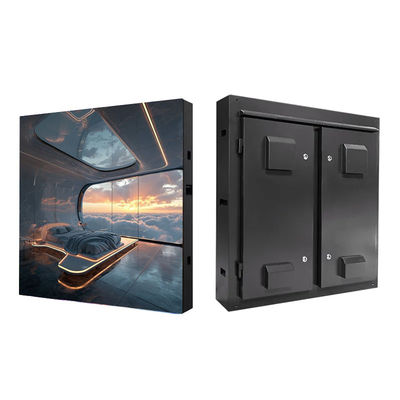

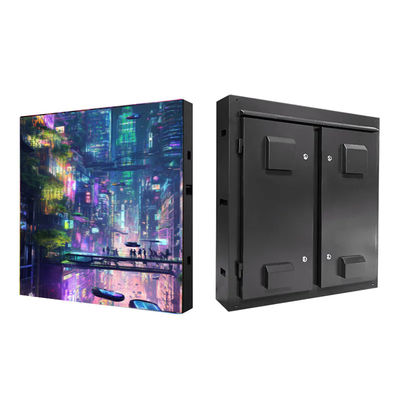

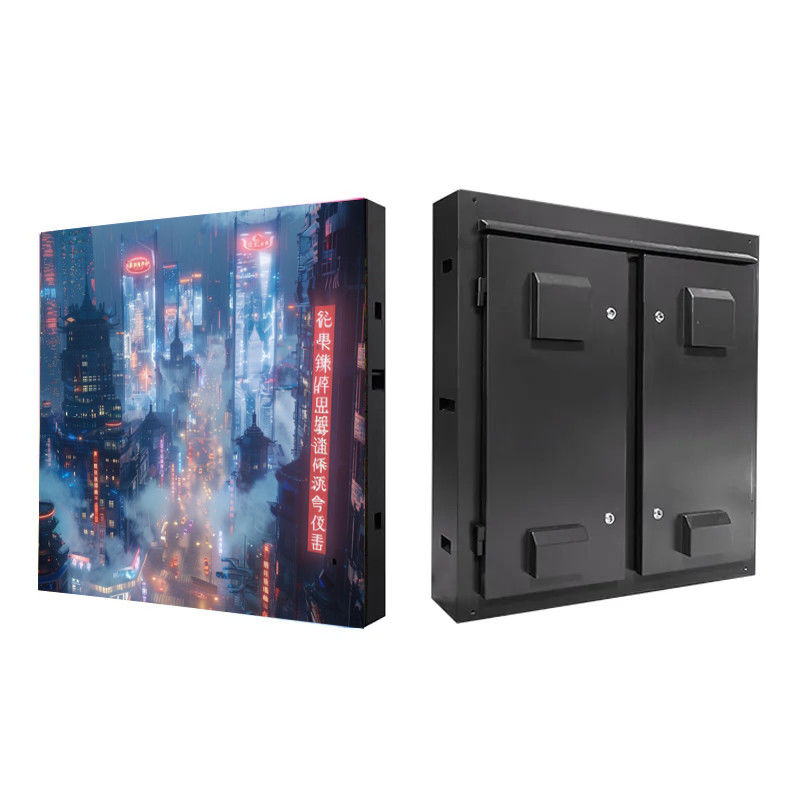

P2.5 P3 P4 IP65 Outdoor Led Display Billboard 5500nits Brightness
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P2.5 P3 P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | less than 6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P2.5 P3 P4 IP65 Outdoor Led Display Billboard 5500nits Brightness | Cabinet Material: | Aliuminum Profile |
|---|---|---|---|
| Cabinet Size: | 1000x1000x90mm | Cabinet Weight: | 30kg/sqm |
| Lifespan: | 100000 Hours | Operating Temperature: | -20°C To +60°C |
| Brightness: | 5500nits | Ip Rating: | IP65 |
| LED Type: | SMD1415 SMD1921 | Installation Type: | Mounting Hanging |
| Highlight: | P3 Outdoor Led Display Billboard,P2.5 Outdoor Led Display Billboard,P4 Outdoor Led Display Billboard |
||
Product Description
P2.5 P3 P4 IP65 Outdoor Led Display Billboard 5500nits Brightness
Product Description:
The P2.5, P3, and P4 Outdoor LED Display Billboard is a high-performance solution designed for outdoor advertising and large-scale digital displays. With IP65 weatherproofing and a brilliant 5500 nits brightness, it ensures stunning visuals that remain vibrant even in direct sunlight and harsh weather conditions.
Features:
- Pixel Pitch Options: P2.5 (2.5mm), P3 (3mm), P3.076 (3.076mm), P3.33 (3.33mm), and P4 (4mm) for varying resolution needs.
- High Brightness: 5500 nits for clear visibility in all outdoor lighting conditions.
- Durable and Weatherproof: IP65-rated steel cabinets with rear service access, ensuring resistance to water, dust, and harsh environments.
- Cabinet Dimensions: 960 × 960mm (P2.5–P3.33, P4) or 1024 × 1024mm (P4), optimized for modular installations.
- Energy Efficient: Power consumption of 800W/m² (max) and 280W/m² (average).
- High Refresh Rate: >1920 Hz for smooth, flicker-free visuals.
- Gray Scale: 14-bit processing for vibrant color depth and image clarity.
- Viewing Angle: Horizontal 140° / Vertical 120°, ensuring wide audience coverage.
- Operational Range: Works reliably in -20°C to +60°C with 10%–90% humidity.
- Flexible Installation: Supports both mounting and hanging options for versatile outdoor applications.
Technical Parameters:
| Product Model: | P2.5 | P3 | P3.076 | P3.33 | P3.33 | P4 | P4 |
| Pixel Pitch: | 2.5mm | 3mm | 3.076mm | 3.33mm | 3.33mm | 4mm | 4mm |
| LED Type: | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 1024x1024mm | 960x960mm |
| Module Size: | 160×160mm | 192×192mm | 192×192mm | 160×160mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | ||||||
| Cabinet Weight: | 38 kg | ||||||
| Cabinet Material: | Steel | ||||||
| Driving Type: | 1/16 | 1/16 | 1/13 | 1/12 | 1/12 | 1/8 | 1/10 |
| Brightness: | 5500 nits | ||||||
| Max/Avg Power: | 800/280 W/㎡ | ||||||
| Environment: | Outdoor | ||||||
| IP Rating: | IP65 | ||||||
| Refresh Rate: | >1920 Hz | ||||||
| Installation Type: |
Mounting/Hanging |
||||||
| Gray Scale: | 14 bit | ||||||
| Viewing Angle: | H:140°；V:120° | ||||||
| Operational Temp: | -20℃~+60℃ | ||||||
| Operational Humidity: | 10%~90% RH | ||||||
Application:
For Entertainment
For Advertising In SuperMarket
For Advertising In Suburbs
FAQ:
Q1: What control system is used, and how does it work?
A1: We use the Nova Taurus Series asynchronous control system, which supports cluster playback and management. You can easily control it via various devices, including APP, smartphone, Wi-Fi, iPad, laptop, PC, or through cloud control. It's very user-friendly and convenient.
Q2: Can I place a sample order for an LED screen?
A2: Yes, we encourage sample orders for testing and quality evaluation. Mixed samples are also accepted.
Q3: Can I have my logo printed on the product?
A3: Absolutely. Please let us know in advance and confirm the design based on our sample before production begins.
Q4: What is your delivery time?
A4: Typically, delivery takes 7-15 days after the deposit is received. However, the exact time depends on the order size and items.
Q5: What is your warranty policy?
A5: We offer a 2-year warranty. We also provide full support for structure design, installation issues, system troubleshooting, and screen usage.
Our professional after-sales team, along with your dedicated sales engineer, will assist with any questions you may have after your order.
