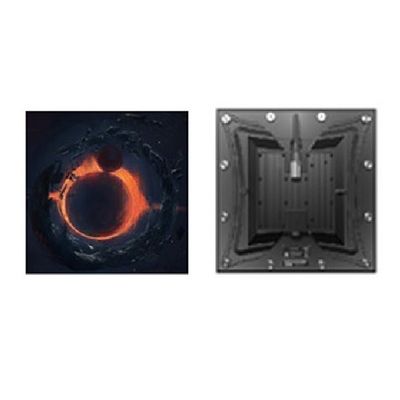

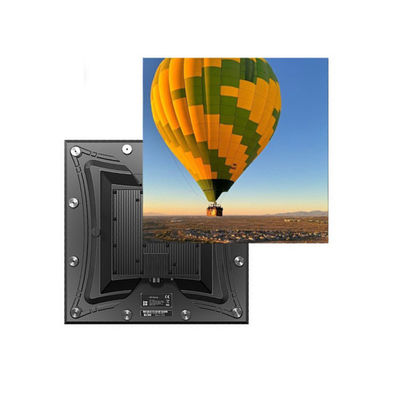

Outdoor Rental LED Display Smart Module 320*320 IP65 Aluminum Cabinet High Refresh Rate
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | Smart Module P2.85 P4 P6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Product Name: | P2.85 P4 P6 Smart Module 16Bit Gray Scale IP65 Aluminum Cabinet Bset Choice For LED Screen Rental | Cabinet Dimension: | 320mm * 320mm |
|---|---|---|---|
| Cabinet Material: | Die-Casting Aluminum | Maintance: | Front/Back |
| Max/Avg Power: | 620/200 W/㎡; 800/280W/㎡;1000/320w/㎡ | Refresh Rate: | >3840HZ |
| IP Rating: | IP42 ；IP67 | Operational Temperature: | -20 —— +50 ℃ |
| Operational Humidity: | 10% —— 90% | Module Size: | 320mm * 320mm |
| Cabinet Weight: | 3 Kg/set | Cabinet Deminsion: | 320 Mm * 320mm * 53.5mm |
| Highlight: | Outdoor Rental LED Display Smart Module,Outdoor Rental LED Display 320*320,IP65 Outdoor Rental LED Display |
||
Product Description
Smart Module 320*320 IP65 Aluminum Cabinet High Refresh Rate For Outdoor Rental
Product Description
- Captivate Your Audience: Immersive Displays with Our Smart LED Modules
- Take Your Events to the Next Level: Professional-Grade LED Solutions
- The Smart Choice for Rental Success: Versatile and Reliable LED Modules
Technical Parameter
| Product Type | Smart Module | |||
| Pixel PItch | 2.85mm | 4mm | 6.67mm | 6.67mm High Brightness |
| LED Type | SMD1415 | SMD1921 | SMD2727 | SMD2727 |
| Module Size | 320*320mm | |||
| Cabinet Dimension | 320*320*53.5mm | |||
| Cabinet Weight | 3kg/set | |||
| Brightness | 4500nits | 5000nits | 5000nits | 7000nits |
| Max/Avg Power | 600/210 W/㎡ | |||
| IP Rating | IP67 | |||
| Refresh Rate | >3840HZ | |||
| Gray Scale | 16 Bit | |||
| Viewing Angle | H;120° V:120° | |||
| Operational Temp | -20° —— +60° | |||
| Operational Humidity | 10% —— 90% | |||
Product Feature
- LIGHT WEIGHT
Die-casting aluminum material, only 15kg/sqm, save shipping cost.
- INTEGRATED DESIGN
Integrate power supply, receiving card and module into one cabinet.
- Waterproof IP67
- 45° BEVELEDGE DESIGN
45° Beveledge design, various shapes splicing

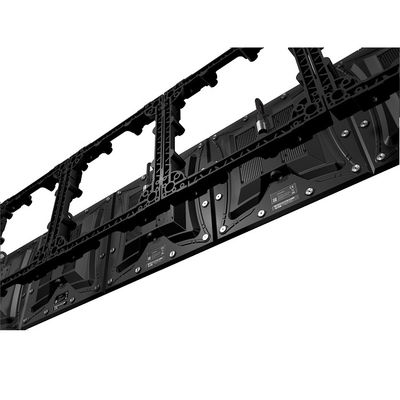

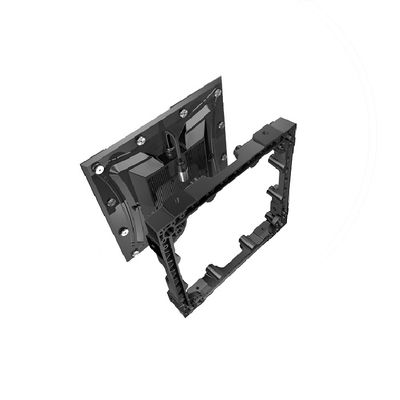

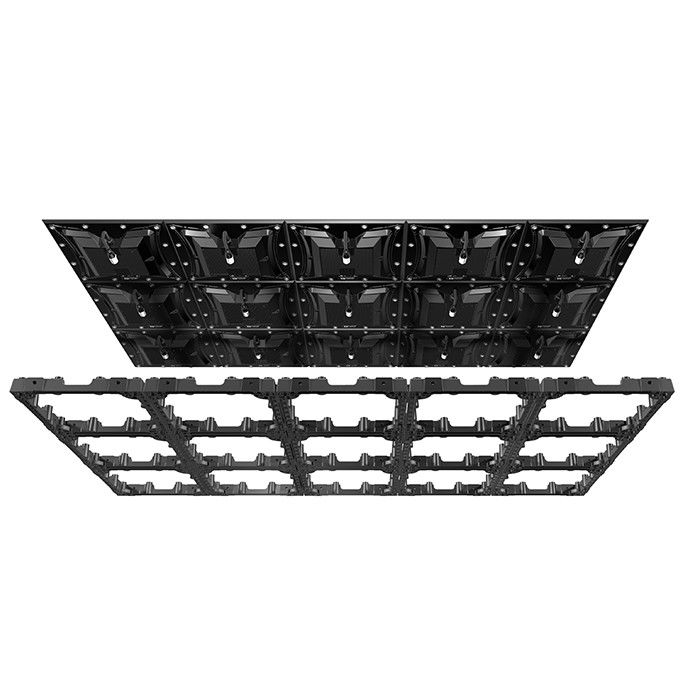

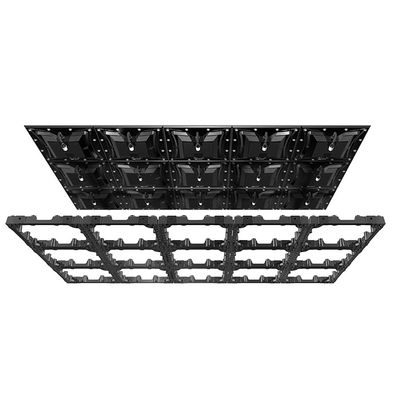

INSTALLATION METHOD
Wall mounted
Cabinet type
Floor standing
Arc-shaped installation
hoisting
Application:
Q&A
Q1: Are you a manufacturer or a trading company?
A1: We are a professional LED manufacturer with over 10 years of experience in the LED industry. We offer OEM & ODM services and provide multi-solution options. Visual World operates as a modern factory, integrating artificial intelligence into LED production to deliver cutting-edge technology and innovation.
Q2: What is your warranty policy?
A2: We offer a minimum 2-year warranty on our products, with some items covered for up to 5 years. Beyond the warranty period, we also provide free repair services—you’ll only need to cover the shipping costs.
Q3: Can I customize my logo on the LED display?
A3: Absolutely! We can print your logo on both the PCB and LED cabinet, allowing you to establish and promote your own brand identity.
