P2.85 Smart Outdoor Fixed LED Screen 320x320mm High Brightness With Front Service
Front Service Outdoor LED Screen
,P2.85 Outdoor LED Screen
,High Brightness Outdoor LED Screen
P2.85 Smart Outdoor Fixed LED Screen 320x320mm High Brightness With Front Service
Product Description:

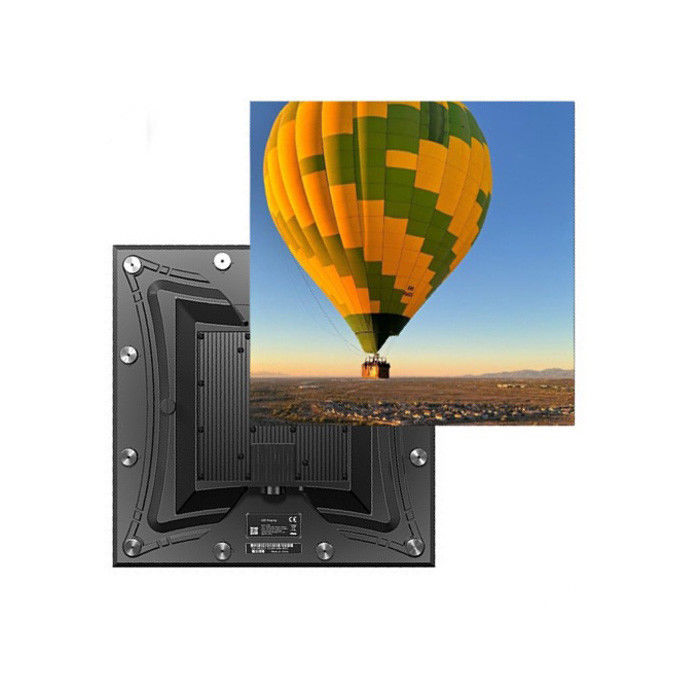

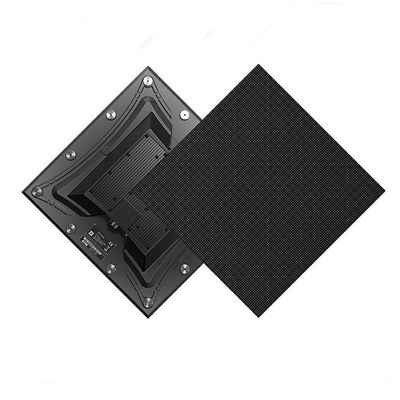

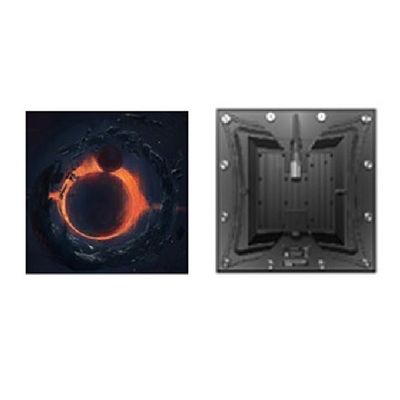

320x320mm Smart LED module / Modular Design / less weight, high protection, easy to rig / IP67 protection level, waterproof and anti-salt / Easy to assemble, install and maintain / Signal and power cable all in one.
Technical Parameters:
| Product Model: | P2.85 | P4 | P6.67 |
| Pixel Pitch: | 2.85 mm | 4 mm | 6.67 mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 |
| Cabinet Dimension: | 320×320x37 mm | 320×320x37 mm | 320×320x37 mm |
| Module Size: | 320x320 mm | 320x320 mm | 320x320 mm |
| Cabinet Weight: | 15 kg | 15 kg | 15 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | 1/16 | 1/16 | 1/6 |
| Brightness: | >4500 nits | >5000 nits | >5000 nits |
| Max/Avg Power: | 800/200 W/m2 | 800/200 W/m2 | 800/200 W/m2 |
| Maintenance: | Front service | Front service | Front service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:160° | H:140°；V:160° | H:140°；V:160° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Features:
- LIGHT WEIGHT
Die-casting aluminum material, only 15kg/sqm, save shipping cost.

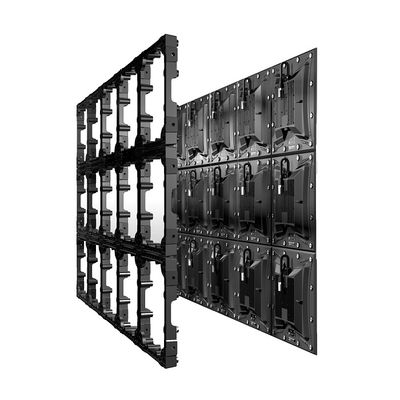

- INTEGRATED DESIGN
Integrate power supply, receiving card and module into one cabinet.
- Waterproof IP67
- 45° BEVELEDGE DESIGN
45° Beveledge design, various shapes splicing
Installation Method
Wall mounted
Cabinet type
Floor standing
Arc-shaped installation
hoisting
Application:
- Shop guide desk
- Park entrance
- Gallery showcase
- Outlets storefront
- Arc video wall
Service and support:
Pre-sale service:
- Inquiries answered within 24 hours.
- Market research and forecasts.
- Customized solutions based on customer needs.
- Data sheets and samples provided.
- Additional services like custom packing and factory visits.
In-sale service:
- Continuous monitoring of production.
- Photos and videos of production upon request.
- Free spare parts.
After-sale service:
- Complaints addressed within 24 hours.
- Maintenance guidance and solutions within 48 hours.
- 24-month warranty.
- Free technician training.
- Free documents: installation guide, software manual, maintenance guide, and control system software CD.
FAQ:
Q1: Can you accept the sample orders?
A1: Yes, we accept sample orders for quality verification and market testing.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: What is the cost of shipping?
A3: Shipping costs vary by weight; we’ll choose the most affordable and secure option based on your quantities.
Q4: How can we guarantee quality?
A4: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q5: Can I customize it?
A5: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
-
