P0.9 Small Pixel Pitch LED Display COB 600x337.5mm High Refresh Rate For Auditorium

P0.9 Small Pixel Pitch LED Display COB 600x337.5mm High Refresh Rate For Auditorium
Brand Name
Visual World
Product Model
P0.9
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

Small Pixel Pitch LED Display

,

P0.9 Small Pixel Pitch LED Display

,

COB Small Pixel Pitch LED Display
Product Name: P0.9 Small Pixel Pitch LED Display COB 600x337.5mm High Refresh Rate For Auditorium
Pixel Pitch: P0.7/P0.9/P1.25/P1.56
Cabinet Material: Die-casting Aliuminum
Size: 600x337.5mm
Maintenance: Front/Rear Service
Brightness: 600-800nits
Refresh Rate: ＞3840Hz
Durability: 100000 Hours
Product Description
Detailed Specifications And Features

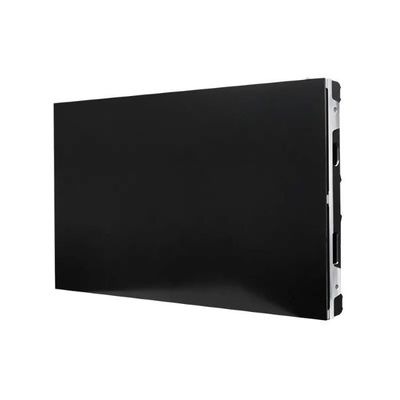

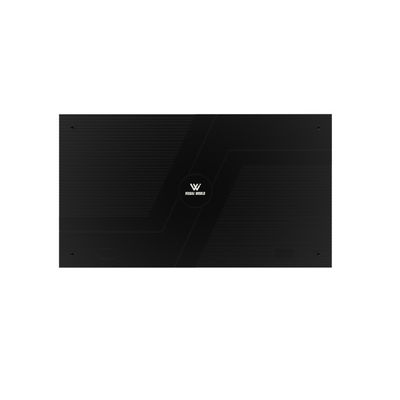

P0.9 Small Pixel Pitch LED Display COB 600x337.5mm
VISUAL WORLD's P0.9 Small Pitch COB LED display delivers ultra-high-definition image quality with a pixel pitch of only 0.9 mm. This advanced display technology provides detailed and lifelike images, making it ideal for applications requiring exceptional visual accuracy and clarity.

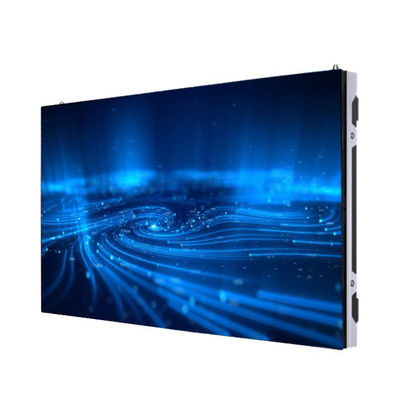

P0.9 COB LED Display showing high-resolution image quality
Key Features
  • Full flip-chip COB process with comprehensive protection: anti-collision, waterproof, moisture-proof, and salt spray resistant
  • 3D ink printing technology increases contrast by 20% and reduces brightness requirements
  • LCD status display panel for real-time monitoring of cabinet operation
  • HDI multi-layer circuit board design ensures excellent color uniformity and temperature distribution
  • Sunrise energy-saving common cathode chip with 16-bit grayscale for superior performance
Technical Specifications
Model P0.9
Pixel Pitch 0.9mm
LED Type COB
Cabinet Dimension 600*337.5*35mm
Module Size 150x168.75 mm
Cabinet Weight 4.6kg
Cabinet Material Die-casting Aluminum
Driving Type 1/36
Maintenance Front service
Brightness 0-2000 nits
Max/Avg Power 420/147 W/m²
IP Rating Front: IP65 / Rear: IP30
Refresh Rate >3840Hz
Installation Type Mounting / Hanging / Stacking
Gray Scale 16bit
Viewing Angle H:170°; V:170°
Operational Temp -20℃~+50℃
Operational Humidity 10%-90%RH
Applications
  • Digital Signage systems
  • Home cinema and theater installations
  • Street furniture displays
  • Billboard advertising
  • Football stadium screens
  • Perimeter LED posters
  • Arena displays and sports venues

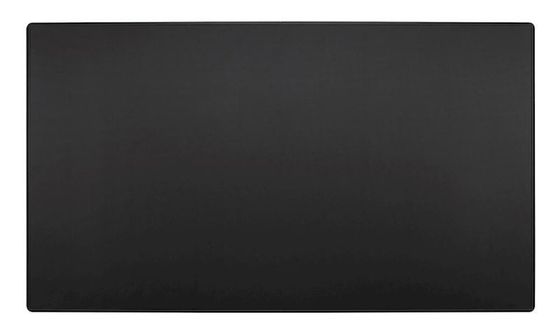

P0.9 LED Display installation and application examples Close-up view of P0.9 COB LED display technology
Pre-Sales Services
  • Project solution design and consultation
  • Project quotation and technical recommendations
  • Project details enrichment and planning
  • Cabinet and screen layout optimization
  • Power and signal calculation with detailed diagrams
  • Customized products, modules, and PCB solutions
Frequently Asked Questions
What control system is used and how does it work?
We use the Nova Taurus Series asynchronous control system that supports cluster playback and management. The system is compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control for easy and convenient operation.
Do you offer a product guarantee?
Yes, we provide a comprehensive 2-year warranty on all our products.
Can the display be customized?
We offer extensive customization services to meet your specific requirements. This includes custom sizes, shapes, features, and even your logo printed directly on the LED display.
How do you guarantee product quality?
We prioritize quality throughout production with rigorous control processes including stringent component selection, advanced manufacturing techniques, and comprehensive testing. Each LED display undergoes meticulous final inspection before shipment to ensure it meets our exacting standards.
How quickly do you provide after-sales technical support?
We commit to providing professional after-sales technical support within 24 hours of receiving customer notification.
