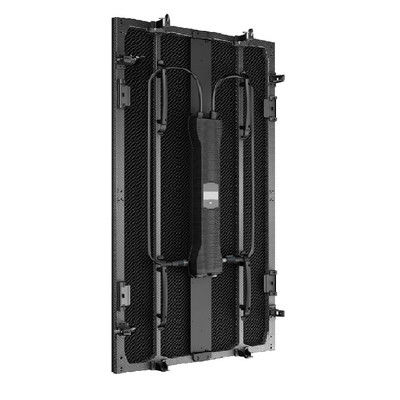

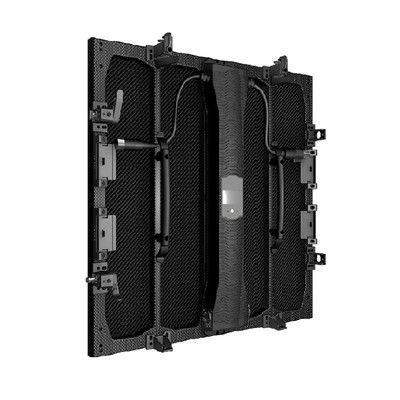

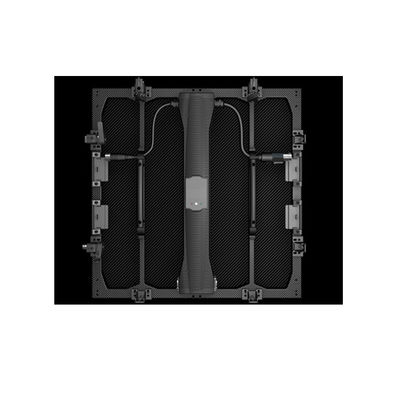

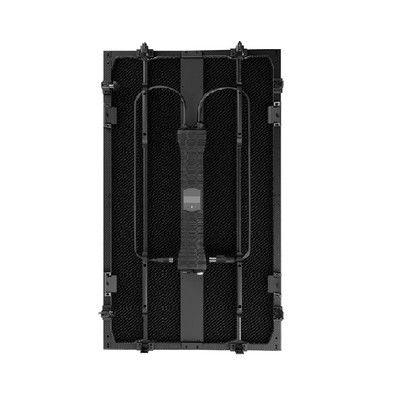

P3.9 P4.8 P6.2 Dustproof Outdoor LED Display Screen Carbon Fiber Cabinet With IP65
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | Indoor Carbon Fiber |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 P4.8 P6.2 Dustproof Outdoor LED Display Screen Carbon Fiber Cabinet With IP65 | Module Size: | 250 Mm * 125 Mm |
|---|---|---|---|
| Cabinet Material: | Carbon Fiber | Cabinet Dimension: | 500 * 500 *65 Mm / 500 * 1000 *65 Mm |
| Cabinet Weight: | 4.5 KG / 7 KG | Refresh Rata: | >3840HZ |
| Gray Scale: | 14 Bit | Brightness: | 1000nits |
| Highlight: | Dustproof Outdoor LED Display Screen,P4.8 Outdoor LED Display Screen,Lightweight Cabinet Outdoor LED Display Screen |
||
Product Description
P3.9 P4.8 P6.2 Dustproof Outdoor LED Display Screen Carbon Fiber Cabinet With IP65
Product Description
Elevate your stage visuals with our Stage Rental Carbon Fiber Lightweight Cabinet, designed to deliver exceptional performance and durability for demanding event environments.
Product Features
-
Flexible Pixel Pitch Options:
- 3.9mm, 4.8mm, and 6.2mm options to suit various event and stage display needs.
-
Premium LED Technology:
- Equipped with SMD2020 (P3.9) and SMD1921 (P4.8, P6.2) for vibrant, consistent image quality.
-
Lightweight Carbon Fiber Build:
- Compact 500×1000×65mm cabinet dimensions.
- Lightweight design: 7–8kg per cabinet, ensuring ease of handling and transport.
-
Superior Visual Performance:
- Brightness of 1000 nits for clear visuals under various lighting conditions.
- >3840Hz refresh rate for smooth, flicker-free video display.
- 14-bit grayscale for vivid and detailed imagery.
-
Wide Viewing Angle:
- Horizontal: 140°, Vertical: 120°, ensuring excellent visibility from all directions.
-
Robust Durability:
- IP65 Waterproof and Dustproof: Built to withstand outdoor and indoor environments.
- Operates in extreme temperatures from -20°C to +60°C and humidity levels of 10%–90% RH.
-
Energy-Efficient Power Consumption:
- Maximum: 800W/sqm
- Average: 200W/sqm
-
Versatile Installation:
- Compatible with mounting, stacking, and hanging setups.
- Easy front and rear maintenance for quick repairs and adjustments.
Technical Parameters
| Product Type | Carbon Fiber Indoor | ||
| Pixel Pitch | 3.9mm | 4.8mm | 6.2mm |
| LED Type | SMD 2020 | SMD 1921 | SMD 1921 |
| Module Size | 250*125mm | ||
| Cabine Dimension | 500*1000*65mm | 500*1000*65mm | 500*1000*65mm |
| Cabinet Weight | 7KG | 8KG | 8KG |
| Cabinet Material | Carbon Fiber | ||
| Brightness | 1000nits | ||
| Max/Avg Power | 800/200 W/sqm | ||
| Driving Type | 1/16 | 1/13 | 1/5 |
| Refresh Rate | >3840 HZ | ||
| Gray Scale | 14 Bit | ||
| Viewing Angle | H:140 ° V:120° | ||
| IP Rating | IP 65 | ||
| Operational Temperature | -20℃ —— +60℃ | ||
| Operational Humidity | 10% —— 90% RH | ||
| Installation | Mounting/Stacking/Hanging | ||
| Maintance | Front/Rear | ||
Product Application
Event Rental Stage Rental GamePlay Rental
