P5.71 Outdoor LED Display 6000 Nits Aluminum Profile For Outdoor Advertising
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, LVD, EMC |
| Model Number: | P5.71 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 8-10 work days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 2000 sqm/month |
|
Detail Information |
|||
| Product Name: | P5.71 Outdoor LED Display 6000 Nits Aluminum Profile For Outdoor Advertising | Pixel Pitch: | 5.71 Mm |
|---|---|---|---|
| LED Type: | SMD2727 | Cabinet Dimension: | 960x960 Mm |
| Module Size: | 480x320 Mm | Pixel Density: | 30625 Dots/sqm |
| Function: | Module Flash, Synchronous/asynchronous Control, Flame Retardancy | Cabinet Material: | Aluminum Profile |
| Module Connection: | Hard Connection | Brightness: | 6000 Nits |
| Highlight: | P5.71 Outdoor LED Display,6000 nits Outdoor LED Display,Aluminum Profile Outdoor LED Display |
||
Product Description
P5.71 Outdoor LED Display 6000 nits Aluminum Profile For Outdoor Advertising
Product Description:

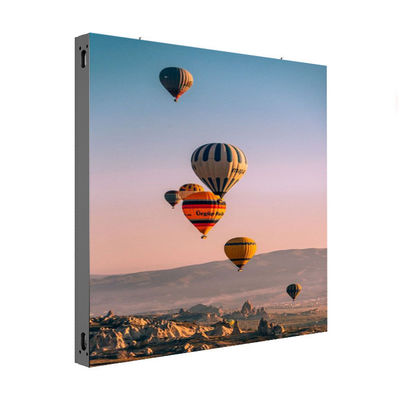

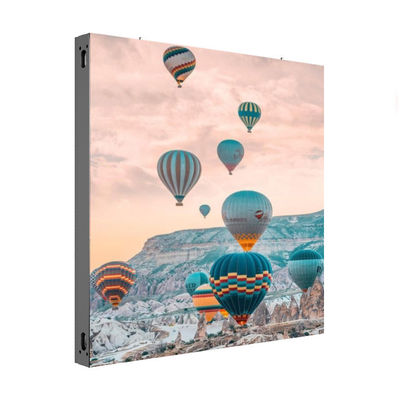

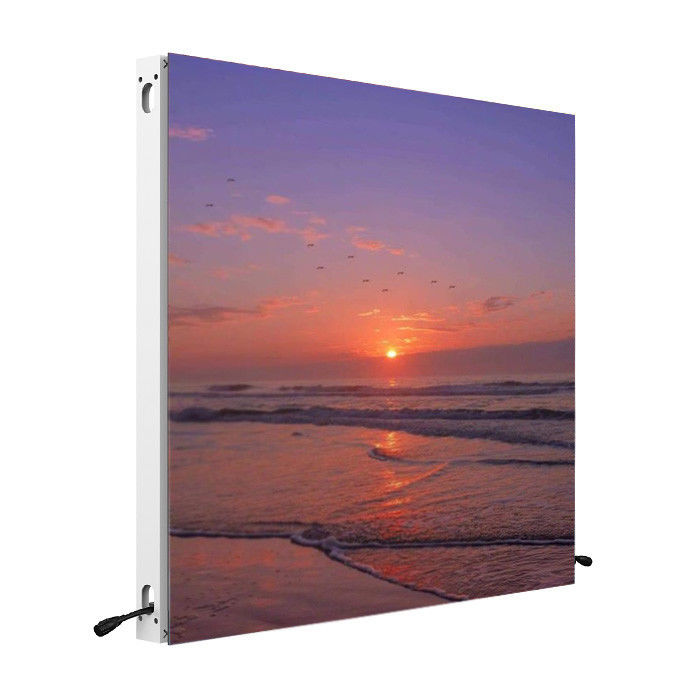

P5.71 Outdoor LED Display is a high-definition display designed to withstand a wide range of outdoor conditions. It features a pixel pitch of 5.71mm, providing detailed and clear images that are perfect for outdoor advertising and messaging. With an impressive brightness of 6000 nits, this display ensures excellent visibility even under direct sunlight.
Features:
- Dual Port Module
These modules feature two connection ports, both of which can be used, eliminating the need to choose between a left or right side during installation or repairs.

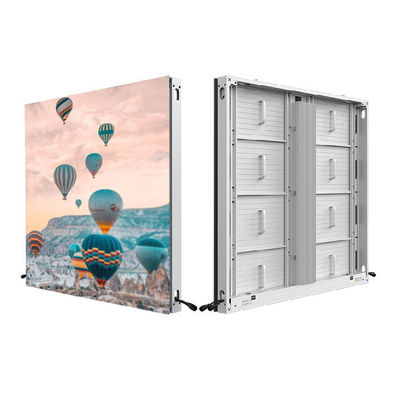

- Front and Rear Service
Both the module and power box can be accessed from either the front or rear, providing flexibility and convenience for various project requirements.
- Waterproof
With an IP66 protection rating, the display is durable and stable, making it ideal for outdoor use.
- Efficient Heat Dissipation
Constructed with an aluminum profile, the frame allows for effective heat dissipation as the open design of the modules enables heat to pass through, extending the display's lifespan.
- Hard Connection
Modules are directly connected to the hub board without the need for cables, offering quick and easy setup with precise alignment, and eliminating the need for cable management.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | FIA-Outdoor |
| Pixel Pitch: | 5.71 mm |
| LED Type: | SMD2727 |
| Cabinet Dimension: | 960x960 mm |
| Cabinet Resolution: | 168*168 pixels |
| Module Size: | 480x320 mm |
| Module Resolution: | 84*56 pixels |
| Module Qty/cabinet: | 2x3=6pcs |
| Pixel Density: | 30625 dots/sqm |
| Cabinet Weight: | 22 kg |
| Cabinet Material: | Aluminum profile |
| Cabinet Color: | Black / White |
| Driving Type: | 1/9 |
| Brightness: | 6000 nits |
| Max/Avg Power: | 600/170 W/m2 |
| Maintenance: | Front rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP66 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
The application of outdoor LED displays can include highway billboards for high-traffic advertising, pole-mounted LED walls for urban messaging, roadside posters for dynamic content, and large LED screens in sports stadiums to enhance both advertising and the fan experience.
Service and support:
Pre-sale:
1. Reply inquiries in 24 hours.
2. Provide unique and professional solutions based on customer's requirements.
3. Offer data sheet.
4. Other services, such as special packing design, factory visits, and so on.
In-sale:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale:
1. A two-year warranty and free software upgrade.
2. Maintenance guidance and problem solutions are supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
FAQ:
Q1: What kind of led display we provide?
A1: We have indoor/outdoor/rental/Advertising/transparent and poster LED display for your choice.
Q2: Do your led display comply with international certification standards?
A2: Yes, our led display comply with various international certification standards, such as CE certification, RoHS
certification, FCC certification, and so on.
Q3: Do you support custom design and customization requests for your led display?
A3: Yes, we can provide custom design and customization production according to customers' needs to meet their special
requirements and demands.
Q4: How Can We Guarantee Quality?
A4: Seven quality control steps ensure your ordered screens good:
1).Our customers are long-term cooperated large famous company.
2).Material check by professional workers and machines.
3).Debug every modules.
4). 48-hour aging test for all modules before assembling.
5).Test every cabinet's function after assembling by engineers and machines.
6).72-hour aging test for whole screen before shipment.
7). All details final inspection again before package.
Q5: How about the warranty?
A5: 2 years warranty.
