Carbon Fiber LED Display Lightweight With Energy Saving For Stage Event

Carbon Fiber LED Display Lightweight With Energy Saving For Stage Event
Brand Name
VW
Product Model
P4.8
Certificate
CE, ROHS
Country Of Origin
China
MOQ
Negotiable
Unit Price
Negotiable
Payment Method
T/T
Supply Capacity
3000 sqm/month
Product Details
Highlight:

Stage Event Lightweight LED Screen

,

Carbon Fiber Cabinet Lightweight LED Screen
Product Name: Carbon Fiber LED Display Lightweight With Energy Saving For Stage Event
Cabinet Dimension: 500 * 500 Mm *65mm / 500 * 1000 Mm*65mm
Module Size: 250mm * 125mm
Cabinet Material: Carbon Fiber
Driving Type: 1/16
Brightness: 5500nits
Max / Avg Power: 800 / 200 W/㎡
Grey Scale: 14 Bit
Viewing Angle: H:140°；V:120°
Operaion Temperature: -20℃ —— +60℃
Product Description
Detailed Specifications And Features

Carbon Fiber LED Display Lightweight With Energy Saving For Stage Event



Product Description:

Introducing the Carbon Fiber Light-Weight Cabinet for Stage Events

Elevate your event experience with our state-of-the-art Carbon Fiber Light-Weight Cabinet, meticulously engineered for exceptional performance and sustainability. This cutting-edge cabinet combines durability with feather-light construction, making it the perfect solution for stage setups where mobility and efficiency are paramount.



Product Features:

  • Ultra-Lightweight Design: Crafted from high-quality carbon fiber, this cabinet is designed to be effortlessly portable, allowing for quick and easy installations and adjustments during your events.

  • Energy Efficient: Our cabinet is built with energy-saving technology, ensuring that you can enjoy vibrant displays while minimizing power consumption, making it both eco-friendly and cost-effective.

  • 14-Bit Gray Scale: Experience stunning visual fidelity with our 14-bit gray scale technology, delivering smooth transitions and an incredible range of colors. Your visuals will be more dynamic and lifelike, captivating your audience like never before.



Product Technical Parameters:



Product Model: CFI-4.8
Pixel Pitch: 4.8 mm
LED Type: SMD2020
Cabinet Dimension: 500x1000 mm
Cabinet Resolution: 128*256
Module Size: 250x250 mm
Module Resolution: 64*64
Pixel Density: 65536 dots/sqm
Cabinet Weight: 58kg
Cabinet Material: Carbon Fiber
Driving Type: 1/16
Brightness: 5500 nits
Max/Avg Power: 800/280 W/m2
Maintenance: Front & Rear service
Environment: Indoor Use
IP Rating: IP30
Refresh Rate: >3840 Hz
Installation Type: Mounting/Hanging
Gray Scale: 14 bits
Viewing Angle: H:140°；V:140°
Operational Temp: -20℃~+50℃
Operational Humidity: 10%~90% RH





Product  Applications:

For events like:Speech,Concert,Party, Game Sports,Wedding,Company Dinner and so on.

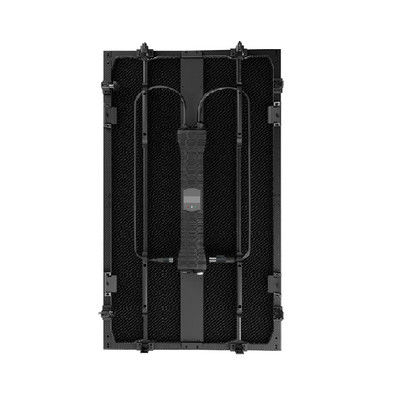

Carbon Fiber LED Display Lightweight With Energy Saving For Stage Event 0

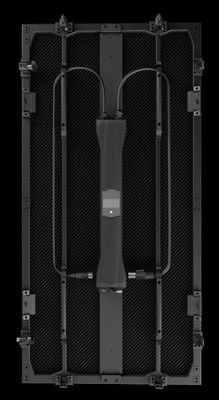

Carbon Fiber LED Display Lightweight With Energy Saving For Stage Event 1

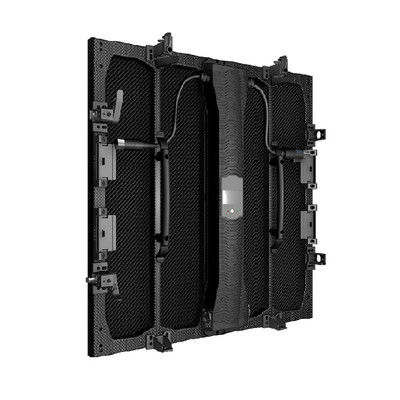

Carbon Fiber LED Display Lightweight With Energy Saving For Stage Event 2



Q & A:



Q1: How many LED modules are included in a panel?
Each 500x1000mm panel contains 8 LED modules, each measuring 250x125mm.

Q2: Can I request a sample of the indoor P2.9 LED panel for demonstration?
Yes, you can. Please reach out to our sales team via email or phone to check for availability.

Q3: Is it safe to install the panel near an indoor swimming pool?
Yes, the panel can be installed near water, but special treatment is required for the modules and PCB to ensure protection against moisture.

Q4: Do you offer a 500x1000mm panel for P2.6?
We do not have a 500x1000mm panel made from carbon material for P2.6. However, we have other models available. Please contact us for more details.

Q5: How do I perform front service on the panel?
You can remove the modules using a vacuum front service tool. To access the power box, simply remove the screws.
