P0.9 Small Pixel Pitch LED Display COB Die-casting Aliuminum For Sport Bar
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Small Pixel Pitch LED Display COB Die-casting Aliuminum For Sport Bar | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Size: | 600x337.5mm |
| Maintenance: | Front/Rear Service | Brightness: | 600-800nits |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | COB Small Pixel Pitch LED Display,Sport Bar Small Pixel LED Display,P0.9 Small Pixel Pitch LED Display |
||
Product Description

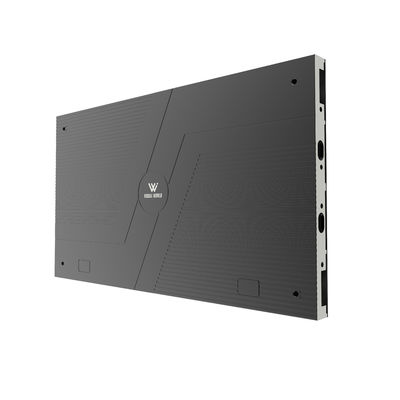

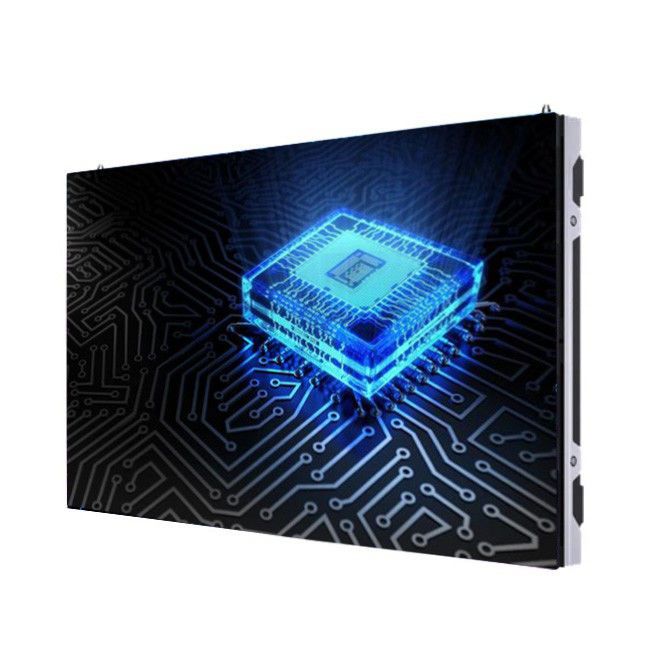

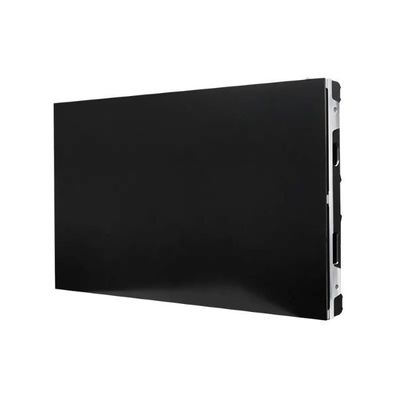

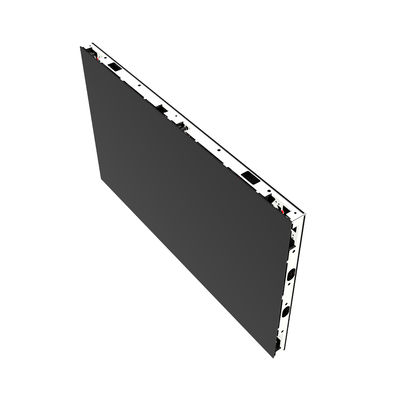

P0.9 Small Pixel Pitch LED Display COB Die-casting Aluminum For Sport Bar
Product Description:
The P0.9 Small Pixel Pitch LED Display COB from VISUAL WORLD is a state-of-the-art display solution that elevates high-definition visuals. With a pixel pitch of just 0.9mm, it guarantees sharp and detailed images, making it perfect for applications that require exceptional visual precision and clarity.
Designed in a compact 600x337.5mm module size, this COB LED display offers flexibility and straightforward installation. Its die-cast aluminum cabinet not only contributes to a sleek, modern look but also ensures the display's durability and lightweight design.
Features:
- The full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance, preventing LED screens from blinding or experiencing failures due to dampness in high-humidity and salt-spray conditions.
- The module features 3D ink printing technology, enhancing contrast by 20% and lowering display brightness requirements. It supports an LCD status display panel for intuitive real-time monitoring of cabinet operations.
- The module's PCB utilizes an HDI multi-layer circuit board design, ensuring good color uniformity and even temperature distribution.
- The entire series incorporates Sunrise's energy-efficient common cathode chip, delivering higher performance with grayscale levels up to 16-bit.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m2 |
| IP Rating |
Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
Support and Service:
Full-service support throughout the process.
Pre-sales: we offer detailed production instructions and professional installation guidance.
Sales: we provide customized solutions, visual designs, and project showcases.
After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
FAQ:
Q1: Can you accept some sample orders?
A1: Yes, the sample order is acceptable for quality check and market test.
Q2: What LED screen size you can do?
A2: Screen size can be customized based on your demand.
Q3: How to control the LED screen?
A3: We can configure the control system, from Novastar or Colorlight, operation is easy.
Q4: Does there have any warranty?
A4: A two-year warranty for all products.
Q5: What will you do if we have problems related to installation, configuration, and use?
A5: Our after-sale service team will solve all the problems until the screen can work normally.
