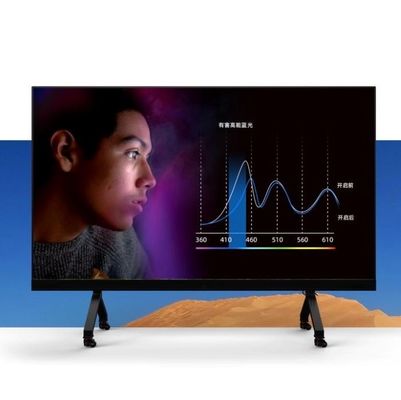

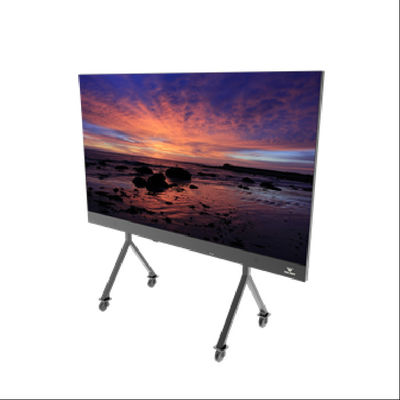

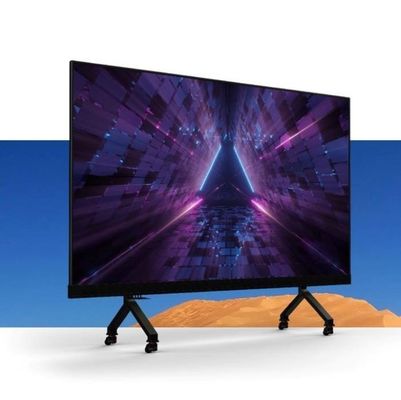

P0.7 Smart LED Poster Display 600*337.5mm COB Die-casting Aluminum Cabinet
600*337.5mm Smart LED Poster Display
,P0.7 Smart LED Poster Display
P0.7 Smart LED Poster Display 600*337.5mm COB Die-casting Aluminum Cabinet
PRODUCT DESCRIPTION
P0.7 Smart LED Poster Display COB is a cutting-edge display solution designed for a variety of applications, including conferences, exhibitions, and advertising. With a pixel pitch of 0.7mm, this 108-inch display offers incredibly detailed imagery and vibrant colors, making it ideal for capturing attention in any setting.
FEATURES
- ULTRA-THIN
Easy+no need install, just work like a big TV.
- ADJUASTABLE HEIGHT
Suitable for more scenes.
- WIRELESS SCREEN SHARING
Supports wireless screen sharing on Windows, Mac OS, iOS, and Android systems
-
FILE MANAGEMENT
It supports file management and playback, management file deletion can be single-selected or all-selected, and files can be classified into pictures, music, videos, etc.
TECHNICAL SPECIFICATIONS
| Model | CrystalTV 108”(4X4) | |||
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
|
Cabinet Dimension (mm) |
600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 |
| Module Size(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| LED Type | COB | COB | COB | COB |
| Display Size(mm) | 2400*1350 | 2400*1350 | 2400*1350 | 2400*1350 |
| Display Resolution | 3072*1728 | 2560*1440 | 1920*1080 | 1536*864 |
|
Display Ratio |
16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Weight |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standing) 100KG (wall-mounted) |
130KG (floor standiing) 100KG (wall-mounted) |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type: | 1/36 | 1/40 | 1/60 | 1/48 |
| maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-800 nits | 0-800 nits | 1000 nits |
|
Max Power Avg Power |
196W/m² 65W/m² |
280W/m² 95W/m² |
330W/m² 110W/m² |
330W/m² 100W/m² |
| IP Rating |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
Floor Standing Wall Mounting Hanging |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°V:170° | H:170°V:170° | H:170°V:170° | H:170°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Input Interface | HDMI2.0 | |||
| Output Interface | HDMI2.0,AUDIO,SPDIF | |||
| hardware configuration | CPU(Cortex A76X4+A55X4) | |||
| RAM(DDR4 4GB) | ||||
| GPU(MailG610) | ||||
| ROM(32G eMMC5.1) | ||||
APPLICATION
FAQ
Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2:Can you provide customized services?
A2:Yes,we can design different category of products according to your demand.
Q3: Is it OK to print our logo on led screen product?
A3: Yes,we can print your logo according your request.
Q4: Can I order a sample for led display screen?
A4: Yes, we warmly welcome you to order a sample to test and check quality. You can choose any item what you want.
Q5: How much is the freight?
A5: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q6: What is price per square meter of screen?
A6: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 2 years warranty to our products.
-
