P4 Adhesive Transparent LED Display 240x1500mm Ultra Thin 2mm and Light 3.5KG Sqm
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC,FCC |
| Model Number: | TP4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export carton box, Plywood case |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P4 Adhesive Transparent LED Display 240x1500mm Ultra Thin 2mm And Light 3.5KG Sqm | Pixel Pitch: | 4-8 Mm |
|---|---|---|---|
| LED Type: | SMD1921 | Module Size: | 240x1500mm |
| Thickness: | 2mm | Cabinet Material: | Aluminum & PC |
| Weight: | 3.5KG/SQM | Maintenance: | Front Service |
| Highlight: | Ultra Thin Adhesive Transparent LED Display,240x1500mm Adhesive Transparent LED Display,3.5KG Sqm Adhesive Transparent LED Display |
||
Product Description
Indoor P4 Transprent Adhesieve soft film led display for fixed installation 240x1000mm
PRODUCT DESCRIPTION
The sophisticated design transparent LED adhesive film is suitable for shopping mall advertisement or window glass. It is extremely easy to install and control with nearly thin as paper. T-PAPER series LED adhesive film maximizes the effect of advertising and replaces conventional signs and boards for promoting.
Product Quick Details:
1, Adhesive film led display to stick on the glass
2, Light weight with 3.5kg/panel
3, Easy do fix installation
4, Can do high brightness 2000-4000nits
TECHNICAL SPECIFICATIONS
| Product Model: | TP4 |
| Pixel Pitch: | 4-8 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | no |
| Module Size: | 240x1500mm |
| Weight: | 3.5 kg/sqm |
| Cabinet Material: | Aluminum & PC |
| Driving Type: | Static |
| Brightness: | 1000-4000 nits |
| Max/Avg Power: | 720/252 W/m2 |
| Maintenance: | Front service |
| Environment: | Indoor Use |
| IP Rating: | IP30 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Fixing/Sticking/Hanging |
| Gray Scale: | 16 bit |
| Viewing Angle: | H:160°；V:160° |
| Operational Temp: | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
FEATURES
- ULTRA THIN
2mm thickness makes it the thinnest led display in the market.

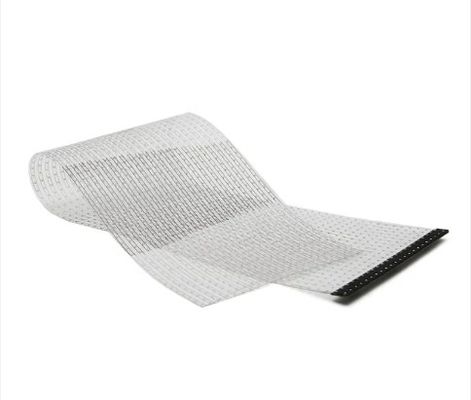

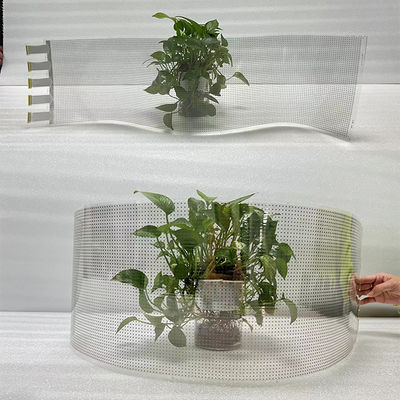

- FLEXIBLE
Bendable adhesive film led panel, can fit on curved glass wall.
- HIGH TRANSPARENCY
Transparent film makes it up to 70% transparency rate. Best choice for store window glass.
- EXTREME LIGHT
Film size 1000x500mm only weighs 3 kg, convenient to handle.
- CLIPPING SIZE
The film panel is cuttable to meet different installation condition such irregular glass.
APPLICATION FIELD
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
Looking for a super light led panel for glass window? Our T-PAPER series adhesive film led display is your premium choice. Flexible and thin film panel enable technicians to easily do installation in short time. If you want more details for this product, please don’t hesitate to message us!
PRE-SALES SERVICE
- Project solution design
- Project quotation and suggestion
- Project details enrichment
- Cabinet and screen layout
- Power and signal calculation and diagram
- Customized product, module, PCB and etc
FAQ
Q1. How to fix the LED film display on the glass?
A1: 1) First use the laser beacon to mark the position
2) Plan the arrangement order of the panel.
3) Keep the glass clean and dry.
4) Remove the protective film on the panel.
5) Stick the panel and scrape it with roller several times to squeeze out the bubbles inside
Q2: Are you manufacturer of LED display. If yes, in which city?
A2: Yes, Our factory with 3000 square meters. And we're in SHENZHEN city, GUANGDONG Province.
Q3: May I know the package details?
A3: For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
Q4: Can it play HD video?
A4: Yes, it can realize HD video function with Linsn/nova controlling system
Q5: What's the controlling system?
A5: Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun, TF, Colorlight, etc.
Q6: What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1)?
A6: SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 LED chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens, it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
Q7: How to deal with the faulty?
A7: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
