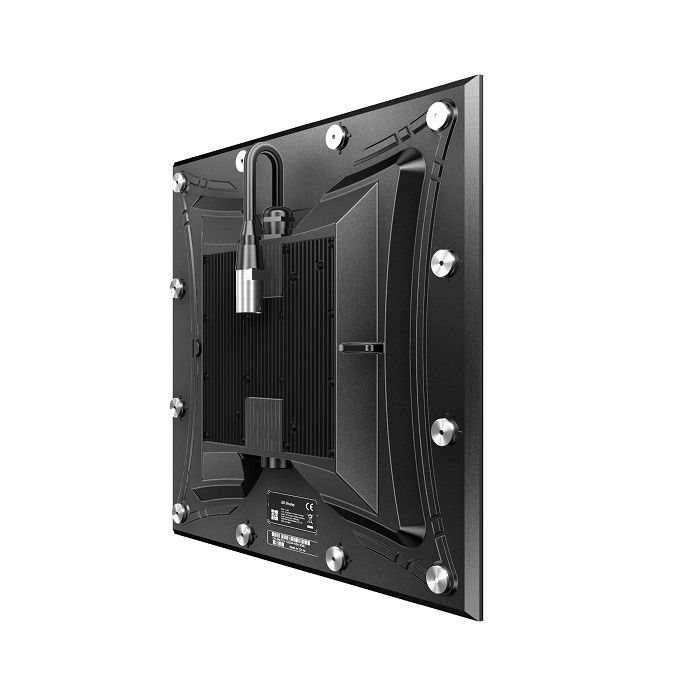

P6.67 Outdoor LED Display Module 320x320mm Cabinet With Die-casting aluminum frame
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, EMC, LVD, ROHS, FCC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | plywood case, carton box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 1.54kg Weight Outdoor LED Display Module With 45 Deg Edges For Curved Walls | Pixcel Pitch: | 6.67mm |
|---|---|---|---|
| LED Type: | SMD2727 | Cabinet Dimension: | 320x320mm |
| Material: | Die-casting Aluminum Frame | Pixel Density: | 22200 Dots/sqm |
| Maintenance: | Front Service | Module Edge Angle: | 45° |
| Module Weight: | 1.54kg | Module+Frame Weight: | 2.22 Kg |
| Highlight: | P6.67 Outdoor LED Display Module,320x320mm Outdoor LED Display Module |
||
Product Description
P6.67 Outdoor LED Display Module 320x320mm Cabinet With Die-casting aluminum frame
Product Description:
Visual World P6.67 Outdoor LED Display Module were created to meet high graded outdoor fixed led display project. It combines power and signal into one power box and cable, which makes the appearance simple but elegant. Zero flicker and low latency video image display, giving the audience the best visual experience.
Features:
- Diecasting aluminum:Light and durable die-casting aluminum panel makes accurate assembling of corresponding hole position
- Front access:Magnetic led modules strongly connect to the module frame. Safety rope is optional to tighten the connection.
- Power box integration:The power supply, receiving card and hub board are simplied into a small power box. The module can work individually.
- Curved video wall:The 45° edges modules are compatible with simple customized metal cabinet by magnets, which allows the module to build curved led walls.
- 2-in-1 transmiting cable:Customized 2 in 1 cable allows the led screen to transmit the current and signal simultaneously.
Technical Parameters:
| Technical Parameters | Outdoor LED Display Module |
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 6.67 mm |
| LED Type: | SMD2727 |
| Pixel Density: | 22200 dots/sqm |
| Cabinet Dimension: | 320x320mm |
| Module Resolution: | 48*48 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:160°；V:160° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
Apllication:
This product can be used for advertising, informational displays, and even as a background for events and performances. With its high brightness and resolution, it can easily attract the attention of passersby and deliver your message effectively.
FAQ
Q1. What accessories do you have for this module?
A1: It equips a 320x320mm die-casting aluminum frame which also has magnets on it. The frames are for fixed installation. LED modules just connect to the frame after getting the frames settled.
Q2. Can the module work without frames?
A2: Yes, it can. The modules are magnetic, they can work with customized metal cabinets to make different LED shapes.
Q3: What kind of display we provide?
A3: We have indoor/outdoor/rental/fixed LED display/Floor LED Display/Fine Pixel Pitch LED Display/Irregular LED display for you choose.
Q4: Are you manufacturer of LED display. If yes, in which city?
A4: Yes, Our factory with 3000 square meters. And we're in SHENZHEN city, GUANGDONG Province.
Q5: May I know the package details?
A5: For fixed installation, we use wooden case, usually 2 or 4 cabinets in 1 wooden case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
Q6: Can it play HD video?
A6: Yes, it can realize HD video function with Linsn/nova controlling system
Q7: What's the controlling system?
A7: Our standard controlling system for this model is Linsn/ Novastar. Also support other controlling system, like Xixun, TF, Colorlight, etc.
