• COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet
  • COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet
  • COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet
  • COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet

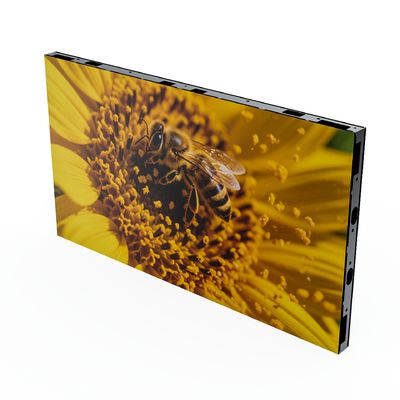

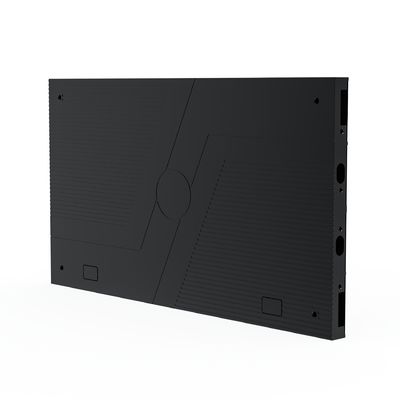

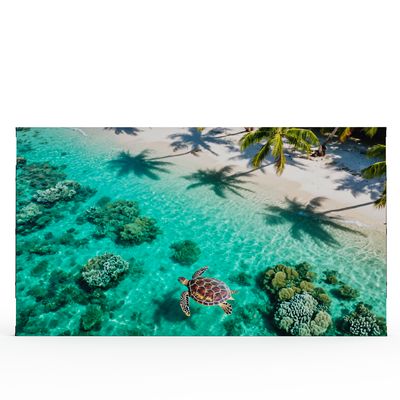

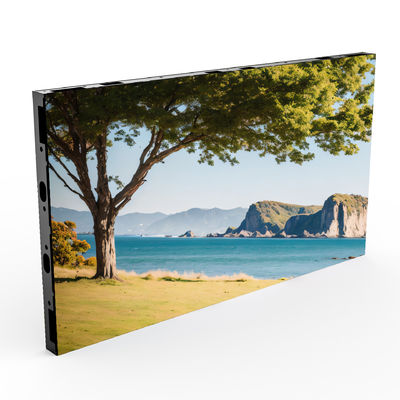

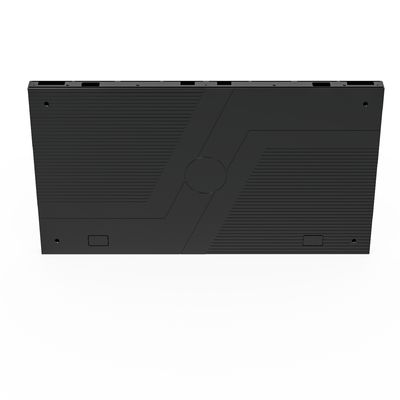

COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet

COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet

Product Details:

Place of Origin: CN
Brand Name: Visual World
Certification: EMC,CE,FCC,ROHS
Model Number: P1.25

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Plywood case, export carton box
Delivery Time: 12 work days
Payment Terms: T/T
Supply Ability: 5000 sqm/month
Get Best Price Contact Now

Detail Information

Pixel Pitch: P0.7/P0.9/P1.2 Refresh Rate: >3840Hz
Brightness: 600-800nits Durability: 100000 Hours
Cabinet Material: Die-casting Aliuminum Display Type: LED
Size: 600x337.5mm Maintenance: Front/Rear Service

Product Description

COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet



Product Description:

Full inverted COB process, protection technology with: anti-knock, waterproof, moisture, put salt spray, (to put an end to the LED screen in the high humidity and high salt spray environment due to the lamp moisture caused by blind lights or caterpillars and other failures).



Features:

  • Full flip-chip COB process, protection technology includes: anti-collision, waterproof, moisture-proof, salt spray, (to prevent LED screens from blinding or caterpillar failures caused by lamp tubes getting damp in high-humidity and salt-spray environments) .
  • The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
  • Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
  • The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
  • The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.



Technical Parameters:

Model P0.7 P0.9 P1.25 P1.56
Pixel Pitch 0.7mm 0.9mm 1.25mm 1.56mm
LED Type COB COB COB COB
Cabinet Dimension 600*337.5*35mm 600*337.5*35mm 600*337.5*35mm 600*337.5*35mm
Module Size 150x168.75 mm 150x168.75 mm 150x168.75 mm 150x168.75 mm
Cabinet Weight 4.6kg 4.6kg 4.6kg 4.6kg
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Driving Type: 1/36 1/36 1/27 1/48
maintenance Front service Front service Front service Front service
Brightness 0-2000 nits 0-2000 nits 1500 nits 1000 nits
Max/Avg Power 390/136 W/m2 420/147 W/m2 330/100 W/m2 330/100 W/m2
IP Rating Front: IP65 / Rear: IP30 Front: IP65 / Rear: IP30 Front: IP65 / Rear: IP30 Front: IP65 / Rear: IP30
Refresh Rate >3840Hz >3840Hz >3840Hz >3840Hz
Installation Type

Mounting

Hanging

Stacking

Mounting

Hanging

Stacking

Mounting

Hanging

Stacking

Mounting

Hanging

Stacking

Gray Scale 16bit 16bit 16bit 16bit
Viewing Angle H:170°;V:170° H:170°;V:170° H:170°;V:170° H:170;°V:170°
Operational Temp -20℃~+50℃ -20℃~+50℃ -20℃~+50℃ -20℃~+50℃
Operational Humidity 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH



Applications:

  • Digital Signage system
  • Chain store
  • Street furniture
  • Billboard
  • Football stadium
  • Perimeter LED poster
  • Arena display, etc.

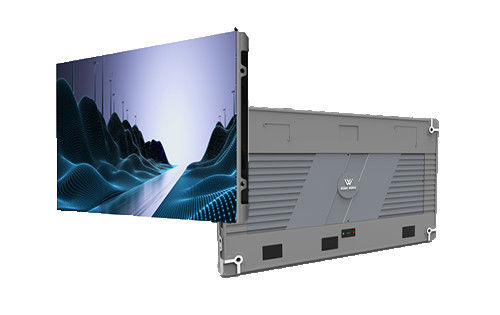

COB P1.25 Fine Pixel Pitch LED Display Die-casting Aliuminum With 600x337.5mm Cabinet 0



Packing and Shipping:

  • Packaging

The Fine Pixel Pitch LED Display is first wrapped in a protective layer of bubble wrap to prevent any damage during transportation. It is then placed in a sturdy cardboard box with foam padding to provide additional protection.

The box is then sealed and labeled with the product name, model number, and shipping information.

  • Shipping

We offer multiple shipping methods to ensure timely and secure delivery of our Fine Pixel Pitch LED Display.

For domestic orders, we use reliable courier services such as FedEx, UPS, and DHL. For international orders, we use air or sea freight depending on the customer's preference and location.

Our team carefully tracks and monitors the shipment until it reaches its final destination.

Upon arrival, the Fine Pixel Pitch LED Display is inspected and tested to ensure it is in perfect working condition before being delivered to the customer.



FAQ:

Q1. Can I have a sample order for LED display?

A1: Yes, we welcome sample order to test and check quality. Both for module or whole screen.



Q2. What about the lead time?

A2:Order less than 100 square meter led time take 15 working days



Q3. Do you have any MOQ limit for LED display order?

A3: Low MOQ, 1 square meter or a moudle checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A4: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance



Q5. How to proceed an order for LED display?

A5: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
