P4 Indoor Flexible LED Display Front Service 960×720mm Cabinet 120º Bendable
Product Details:
Place of Origin: | CN |
Brand Name: | VW |
Certification: | EMC,CE,FCC,ROHS |
Model Number: | P4 |
Payment & Shipping Terms:
Minimum Order Quantity: | Negotiate |
---|---|
Price: | Negotiate |
Packaging Details: | flight case, plywood box |
Delivery Time: | 5-10 days |
Payment Terms: | T/T, L/C, D/A, D/P |
Supply Ability: | 1100sqm/month |
Detail Information |
|||
IP Rating: | IP20 | Gray Scale: | 12 Bit |
---|---|---|---|
Pixel Pitch: | 4mm | Driving Method: | 1/15 |
Maintenance: | Front Service | Cabinet Dimension: | 960×720mm |
Installation Type: | Mounting/Hanging | Viewing Angle: | H:140°;V:140° |
Highlight: | P4 Indoor Flexible LED Display,120º Bendable Indoor Flexible LED Display |
Product Description

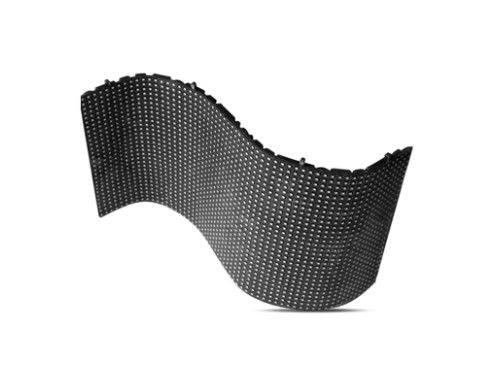

P4 Front Service Indoor Flexible LED Display, can be bent to 120º
Product Description:

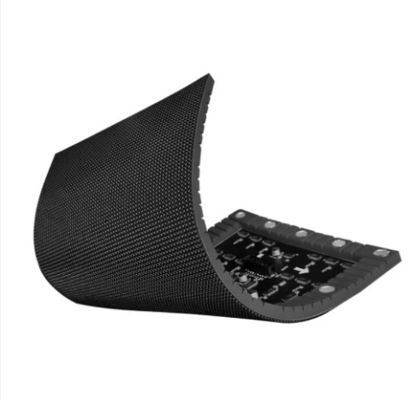

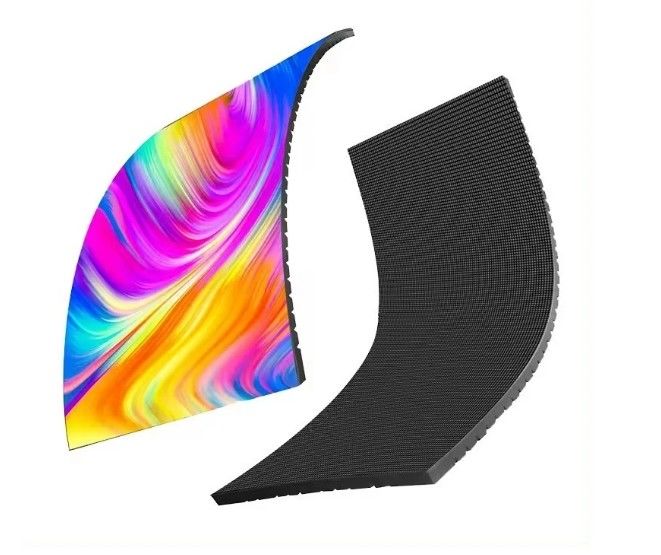

P4 Indoor Front Service Flexible LED Display can fit the metal frame with different camber surfaces due to the soft characteristics of its PCB, thus realizing the LED display effect of curved surfaces. Different pictures and video content can be played, which makes the soft module very well applied in creative design and urban beautification.
- Good flexibility, arbitrarily bendable, meeting individual design;
- Adapt to more complex environments, better viewing angle brightness;
- Special PCB technology, can be bent to 120º;
- The soft bottom shell prevents static electricity;
- The magnet is fully hollowed out, and the magnetic force is large;
- Good flatness;
Features:
- Flexible:Soft pcb design, can be curved, flexible installation
- Curved:Curved angle from 110° to 180°, inner and outer curved
- Multi-shapes available:Flexible modules work for round, convex, concave, shapes and other irregular shapes.
- Magnetic front service:Completely front service with magnets on the modules. Safety rope can be added to the module for hanging or high installation position.
Technical Parameters:
Technical Parameters | Flexible LED Display Screen |
Pixel Pitch: | 4 mm |
LED Type: | SMD2121 |
Cabinet Dimension: | 960×720mm |
Module Size: | 240x120 mm |
Cabinet Weight: | 19kg |
Cabinet Material: | Simple Steel |
Driving Type: | 1/15 |
Brightness: | 800-1000nits |
Max/Avg Power: | 800/280 W/m2 |
Maintenance: | Front service |
IP Rating: | IP20 |
Refresh Rate: | >1920 Hz |
Installation Type: | Mounting/Hanging |
Gray Scale: | 12 bit |
Viewing Angle: | H:140°;V:140° |
Operational Temp: | -20℃~+50℃ |
Operational Humidity: | 10%~90% RH |
Applications:
- Creative design
- Science Museum
- Heteromorphic building
- Advertising signs
- Interior decoration
Our Service
We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.
Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.
We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.
Service Concept:
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.
Service Content:
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.
FAQ:
Q1. Can I have a sample order for LED display?
A1: Yes, we welcome sample order to test and check quality. Both for module or whole screen.
Q2. What about the lead time?
A2:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for LED display order?
A3: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A4: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for LED display?
A5: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the products?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 1 years warranty to our products
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
