Front Service P2.97 Outdoor LED Display Module Smart 250x500mm Cabinet

Front Service P2.97 Outdoor LED Display Module Smart 250x500mm Cabinet

Product Details:

Place of Origin: China
Brand Name: VW
Certification: EMC,CE,FCC,ROHS
Model Number: P2.97,P3.91

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Plywood case, export carton box
Delivery Time: 3-6 work days
Payment Terms: T/T
Supply Ability: 3000sqm per month
Get Best Price Contact Now

Detail Information

Pixel Pitch: 2.97mm,3.91mm IP Level:: IP66
Panel Size: 250x500mm Maintenance: Front Service
Cabinet Material: Aliuminum Cabinet Weight: 3.5kg/pcs
Brightness: 5000nits Power Consumption: 97w/pcs
High Light:

Front Service Outdoor LED Display Module

,

250x500mm Outdoor LED Display Module

,

Smart Outdoor LED Display Module

Product Description

Front Service P2.97 Outdoor LED Display Module Smart 250x500mm Cabinet



DESCRIPTION:

SMART BLOCK-PLUS series display:flexible installa on, high protec on, light weight,front servicing, being able to have quick assembling methods like hanging method, standing method, laying against wall; suppor ng flat and curve surface. It is perfect to fit show window and outdoor.



FEATURES:

  • LIGHT WEIGHT

only 3.5kg/pcs, save shipping cost.

  • INTEGRATED DESIGN

Integrate power supply, receiving card and module into one cabinet.

  • STRONG MAGNETIC SUCTION
Strong Magnetic Suction, full front service
  • 45° BEVELEDGE DESIGN

45° Beveledge design, Cube, Square, circle shape are possible



TECHNICAL SPECIFICATIONS:

Product Model: P2.97 P3.91
Pixel Pitch: 2.97 mm 3.91 mm
LED Type: SMD1415 SMD1921
Cabinet Dimension: 250×500 mm 320×320x37 mm
Module Size: 250x250 mm 250x250 mm
Cabinet Weight: 3.5 kg/pcs 3.5 kg/pcs
Cabinet Material: Die-casting Aluminum Die-casting Aluminum
Driving Type: 1/21 1/16
Brightness: >5000 nits >5000 nits
Max/Avg Power: 97w/pcs 97w/pcs
Maintenance: Front service Front service
Environment: Outdoor Use Outdoor Use
IP Rating: F: IP66, R: IP66 F: IP66, R: IP66
Refresh Rate: >3840 Hz >3840 Hz
Installation Type: Mounting/Hanging Mounting/Hanging
Gray Scale: 14 bit 14 bit
Viewing Angle: H:140°;V:140° H:140°;V:140°
Operational Temp: -20℃~+60℃ -20℃~+60℃
Operational Humidity: 10%~90% RH 10%~90% RH



PICTURES:

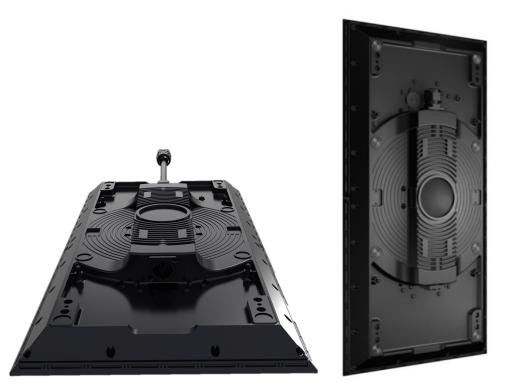

500x500mm Front maintenance LED Cube.



Front Service P2.97 Outdoor LED Display Module Smart 250x500mm Cabinet 0



250x500 Smart LED module for curved LED screen

Front Service P2.97 Outdoor LED Display Module Smart 250x500mm Cabinet 1

Front Service P2.97 Outdoor LED Display Module Smart 250x500mm Cabinet 2



APPLICATION:

The Outdoor LED Display Module from VW is the perfect choice for outdoor advertising applications. The Smart Block Plus is designed to provide a high quality image in a wide range of outdoor settings. It is equipped with a CE and ROHS certification, and is available at a minimum order quantity of 1pcs, with a negotiable price. It is packed in a plywood box and will be delivered within 15 days, with payment terms of T/T. An impressive supply ability of 1500sqm/month is ensured, with an unbeatable IP rating of IP67. The module supports Synchronization/ Asynchronization control systems, is 250mm*500mm in size, and offers 64*128 module resolution. It is powered by AC220V/50Hz input voltage.

Front Service P2.97 Outdoor LED Display Module Smart 250x500mm Cabinet 3



FAQ:

Q1. Can I have a sample order for LED display?

A1: Yes, we welcome sample order to test and check quality. Both for module or whole screen.



Q2. What about the lead time?

A2:Order less than 100 square meter led time take 15 working days



Q3. Do you have any MOQ limit for LED display order?

A3: Low MOQ, 1 square meter or a moudle checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A4: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance



Q5. How to proceed an order for LED display?

A5: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on the products?

A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A7: Yes, we offer 1 years warranty to our products



Q8: How to deal with the faulty?

A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution

including re-call according to real situation.
