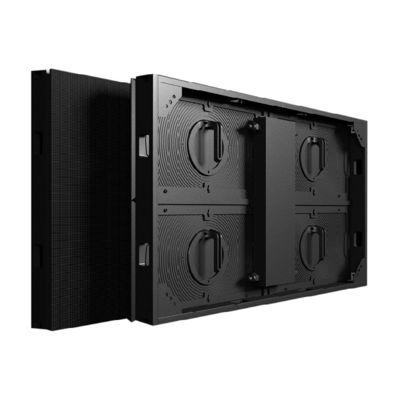

IP42 P3.75 Ultra-Slim Indoor Fixed LED Display Aluminum Profile 960×540mm Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | CE, ROHS, EMC |
| Model Number: | P3.75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Cabinet Size: | 960×540 | Lifespan: | 100,000 Hours |
|---|---|---|---|
| Operating Temperature: | -20℃~+50℃ | Brightness: | 1000nits |
| IP Rating: | IP42 | Viewing Angle: | H:140°；V:140° |
| Cabinet Material: | Aluminium Profile | Gray Scale: | 14bit |
| Highlight: | Aluminum Profile Indoor Fixed LED Display,960×540mm Indoor Fixed LED Display,IP42 Indoor Fixed LED Display |
||
Product Description
IP42 P3.75 Ultra-Slim Indoor Fixed LED Display Aluminum Profile 960×540mm Cabinet
Product Description:
The Indoor Fixed LED Display from Visual World is the perfect solution for any indoor advertising or display needs. With its high-quality display and customizable features, this LED monitor is suitable for a wide range of applications and scenarios.
As a leading manufacturer and supplier of LED display products, Visual World is committed to providing top-of-the-line products with the latest technology and design. The Indoor Fixed LED Display is no exception, with its sleek design and advanced features.
The cabinet size of 960×540 ensures a compact and seamless display, making it easy to install and maintain. The high refresh rate of >3840Hz ensures a flicker-free and stable display, even under high-speed camera shooting, making it perfect for broadcasting and live events.
Features:
- Special size:Indoor p3.75 module size 480x270mm, cabinet size 960x540mm, customized pixel pitch for winning tender projects.

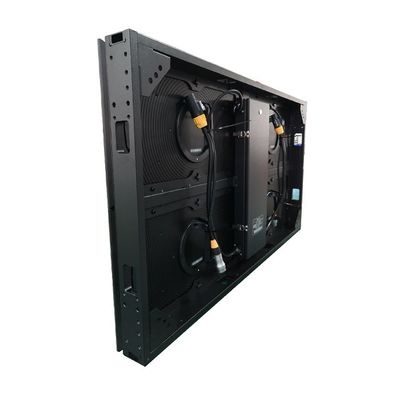

- Full front/full rear service:Module magnet and lock design allows to do full front or full rear maintenance. Fits most projects with severe maintenance conditions.
- Slim cabinet:The thickness is only 70mm(module+cabinet), which is thinner than most of the cabinets in the market (90mm~120mm). Suitable for wall mounted led video wall project with limited depth.
- Light weight:The 960x540mm led cabinet made of aluminum profile only weights 12kg/pcs, 24kg/sqm. Easy to handle and install.
- High refresh rate:When shooting with a mobile or camera, a high refresh rate ensures that the screen presents a perfect image content without moire and flickering.
Technical Parameters:
| Technical Parameters | Indoor Fixed LED Display |
| Pixel Pitch: | 3.75 mm |
| LED Type: | SMD2121 |
| Cabinet Dimension: | 960x540 mm |
| Cabinet Resolution: | 256*144 pixels |
| Module Size: | 480x270 mm |
| Module Resolution: | 128*72 pixels |
| Module Qty/cabinet: | 2x2=4pcs |
| Pixel Density: | 70756 dots/sqm |
| Cabinet Weight: | 12 kg |
| Cabinet Material: | Aluminum profile |
| Driving Type: | 1/18 |
| Brightness: | 800-1000 nits |
| Max/Avg Power: | 540/190 W/m2 |
| Maintenance: | Front/Rear service |
| Environment: | Indoor Use |
| IP Rating: | IP20/IP43(Optional) |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
The Indoor Fixed LED Display is designed for indoor use, providing high definition and high brightness images with a wide viewing angle. It can be used for various applications such as advertising, information display, and entertainment, bringing a visual feast to the audience.
Packing and Shipping:
Each LED display panel is individually wrapped with foam and bubble wrap to prevent any damage during transit.
After the panels are protected, they are then placed in sturdy wooden crates for added protection.
We offer various shipping options to accommodate the needs of our customers, including air, sea, and land transportation.
Our team works diligently to ensure that your order is processed and shipped in a timely manner, so you can receive your Indoor Fixed LED Display as soon as possible.
For any special packaging or shipping requests, please contact our customer service team for assistance.
FAQ:
Q1: How to deal with the faulty?
A1: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Q2: What's the delivery time?
A2: Standard delivery time is 15 working days. If there is stock, we could ship within 7 days. Feel free to tell if you have urgent case.
Q3: Can you support ODM&OEM?
A3: Yes, we support if the quantity is ok.
Q4:Do you have any certificates?
A4: Yes, the certificates we have is CCC, CE, FCC.
