5500nits P3.33 Outdoor Fixed LED Display Panels Screen with Light and Thin Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE, FCC,ROHS, |
| Model Number: | P3.33 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, Export carton box |
| Delivery Time: | 25-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000 sqm/month |
|
Detail Information |
|||
| Material: | Die-casting Aluminum | Cabinet Size: | 960x960mm |
|---|---|---|---|
| Module Size: | 320x160mm | Maintenance: | Rear Service |
| Application: | Building,Street,Wall | Use: | Advertising,display |
| IP Level: | IP65 | Brightness: | 5500nits |
| High Light: | 5500nits Outdoor Fixed LED Display,P3.33 Outdoor Fixed LED Display Screen,Thin Cabinet Outdoor Fixed LED Display |
||
Product Description

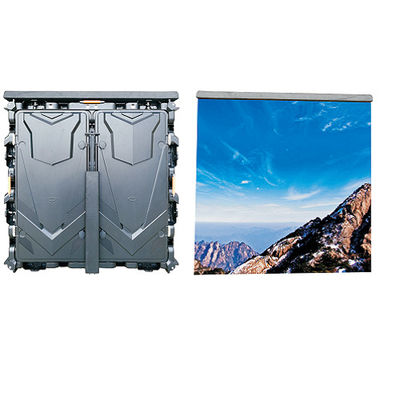

5500nits P3.33 Outdoor Fixed LED Display Panels Screen with Light and Thin Cabinet
Product Description:
P3.33 Outdoor Fixed LED Display has slim and light weight design, convenient for installation and save transportation costs.Die-casting aluminum forming process, cabinet tolerance is controlled within 0.1mm, using special connection lock, whole screen flatness and the stitching gap is less than 0.5mm.Low power consumption PCB design, anti-noise cabinet design.Support hanging installation and stand on floor installation, fast stitching without tools.Support Rear service option and angle adjustment.
Features:
- With high refresh, high contrast and large gray scale, the picture is fine with high definition;
- The cabinet is light and thin, easy to assemble, disassemble and transport;
- Humanized power supply and signal indicator to facilitate fault detection and save time;
- The connector is made of professional-grade aviation plug, which is quality and safety guaranteed ;
Technical Parameters:
| Pixel Pitch: |
2.5mm
|
3.33mm | 4 mm | 5.33 mm | 6.67 mm | 8 mm | 10 mm |
| LED Type: | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960×960×137mm | 960×960x137mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm | 960×960x137 mm |
| Module Size: | 320×160mm | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm |
| Cabinet Weight: | 28 kg | 28kg | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg |
| Cabinet Material: | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium | Die-casting magnalium |
| Driving Type: | 1/16 | 1/12 | 1/10 | 1/7&8 | 1/6 | 1/5 | 1/2 |
| Brightness: | 6000 nits | 5500 nits | 6000 nits | 5000 nits | 5500 nits | 5500 nits | 5500 nits |
| Max/Avg Power: | 880/308 W/m2 | 1025/359 W/m2 | 850/298 W/m2 | 750/263 W/m2 | 800/280 W/m2 | 700/245 W/m2 | 800/270 W/m2 |
| Maintenance: | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | -20°C~+60°C | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Applications:
The Outdoor Fixed LED Display Screen is also a popular choice for sports arenas and stadiums. Its high brightness and wide viewing angle make it ideal for displaying live sports events and replays. Its IP65 rating also ensures that the screen can withstand any weather conditions, making it suitable for outdoor sports venues.
Why Choose Us?
- Support ODM& OEM
- Reasonable price with best quality
- Clear cost initially to save your time and money.
- Superproduct quality, quick and professional services
- Recommend the best proper solution for your LED project.
FAQ:
Q1:What after service can provide?
A1: We have professional engineers providing 24h online technical support and by email; We also send technical personnel to the scene in customers significant activities.
Q2:How to maintenance led screen?
A2: In usually every year to maintenance led screen one time, clear the led mask, checking the cables connection, if any led screen modules fail, you can replace it with our spare modules
Q3. What if I don't know how to install the screen?
A3: a. We will provide your details drawing for installation led screen, But you need provide us on-site picture for installation place.
b. We provide training 2 people in the factory for free.
c. We can send our engineers to your country to guide how to install the screen.
Q4. What if I don't know how to maintain the screen?
A4: We will provide you with operation manuals and software when you place an order, and we can help you debug remotely.
