Fixed P10 Outdoor LED Display 960x960mm With Die Casting Aluminum Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | LED Type:: | SMD3535, 3 In 1 |
|---|---|---|---|
| Module Size: | 320x160mm | Cabinet Size: | 960x960mm |
| Cabinet Material: | Die-casting Aliuminum | Cabinet Weight: | 28kg |
| Brightness: | 6000nits | Power Consumption: | 850/298 W/sqm |
| High Light: | Fixed p10 outdoor led display,Aluminum p10 outdoor led display,960x960mm p10 led display |
||
Product Description
Outdoor Advertising Fixed LED Display P10 960x960mm Die-Casting Aluminum LED Cabinet
DESCRIPTION
Outdoor fixed installation LED Display / Big commercial advertising LED screen / IP65 protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption, energy-saving design optional.
FEATURES
- LIGHT WEIGHT
Die-casting aluminum material, only around 23kg/cabinet, save shipping cost.
- EASY INSTALLATION
Fast fixed lock design, easy and quick installation, save labor cost.
- HIGH PRECISION
Good flatness, no bright and dark lines after splicing.
- GENERAL DESIGN CRITERION
Can be used for indoor, outdoor, fixed, rental and perimeter display.
TECHNICAL SPECIFICATIONS
| Product Model: | P5 | P6.67 | P8 | P10 |
| Pixel Pitch: | 5 mm | 6.67 mm | 8 mm | 10 mm |
| LED Type: | SMD1921 | SMD2727 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960×960x111 mm | 960×960x111 mm | 960×960x111 mm | 960×960x111 mm |
| Module Size: | 320x160 mm | 320x160 mm | 320x160 mm | 320x160 mm |
| Cabinet Weight: | 28 kg | 28 kg | 28 kg | 28 kg |
| Cabinet Material: | Die-casting AL | Die-casting AL | Die-casting AL | Die-casting AL |
| Driving Type: | 1/8 | 1/6 | 1/5 | 1/2 |
| Brightness: | >5200 nits | >6000 nits | >5800 nits | >6000 nits |
| Max/Avg Power: | 732/256 W/m2 | 900/315 W/m2 | 900/315 W/m2 | 850/298 W/m2 |
| Maintenance: | Rear service | Rear service | Rear service | Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 | F: IP65, R: IP54 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING

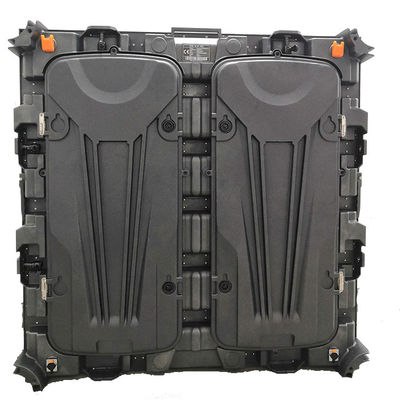

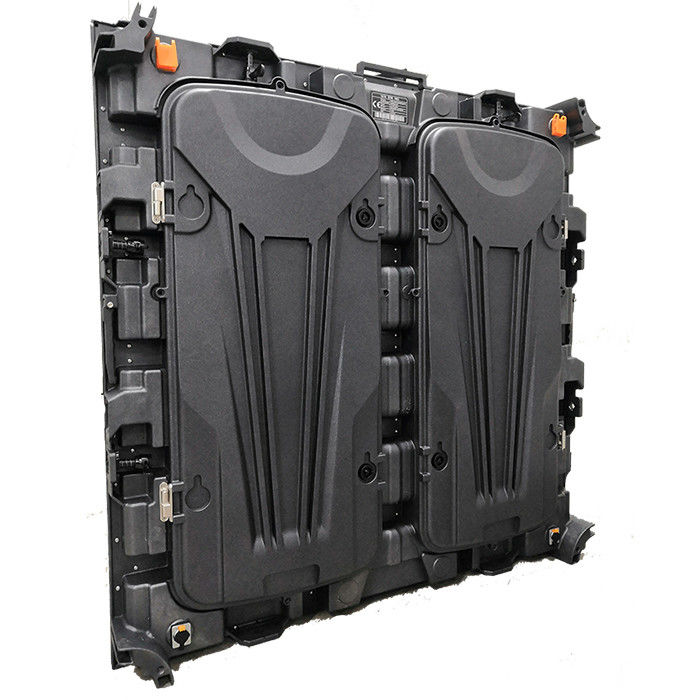

Outdoor 960x960x111mm Die-casting Aluminum LED Cabinet.
PICTURES

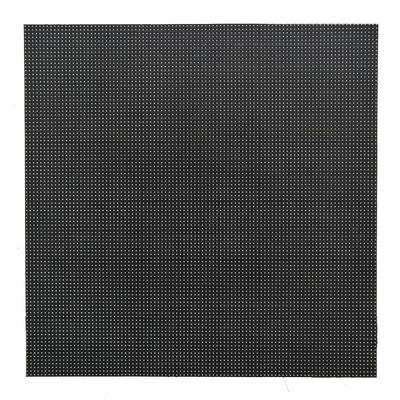

320x160mm rear maintenance LED module

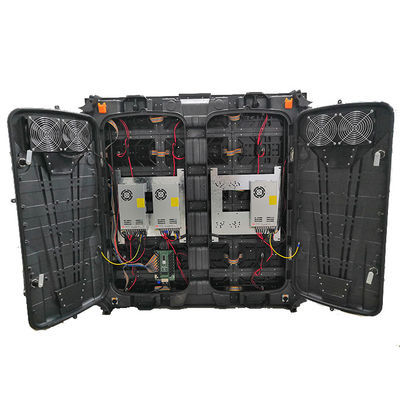

Good heat dissipation, certificated meanwell power supply.
LED module aging 72 Hours, LED screen aging 48 hours in factory before shipping.
APPLICATION
FAQ:
1. Q: Are you a manufacturer or trading company?
A: We are LED manufacturer, OEM & ODM optional, multi-solutions provider, more than 10 years experience in LED industry! What’s more, Visual World is a modern factory dedicated to applying artificial intelligence to the LED industry.
2. Q: How about the warranty?
A: We provide at least 2 years warranty, and some products can be 5 years warranty. Even after the warranty, we can still repair product for free, you just need to pay for the shipping cost.
3. Q: Can you customize my logo on LED display?
A: Of course, we can print your logo on PCB and LED Cabinet if you need. Thus you will keep your own brand.
