P1.25 Onyxa Series Fixed LED Display Screen IP65 Cabinet 500*500mm For Outdoor
Dettagli:
| Luogo di origine: | Cina |
| Marca: | VW |
| Certificazione: | EMC,CE,FCC,ROHS |
| Numero di modello: | P1.25 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | Negoziare |
|---|---|
| Prezzo: | Negotiate |
| Imballaggi particolari: | Cassa in compensato, scatola di cartone da esportazione |
| Tempi di consegna: | 3-6 giorni lavorativi |
| Termini di pagamento: | T/t |
| Capacità di alimentazione: | 1000 mq al mese |
|
Informazioni dettagliate |
|||
| Nome prodotto: | P1.25 Serie Onyxa Schermata del display LED fisso IP65 Cabinet 500*500mm per esterno | Pixel pitch: | P1.25 |
|---|---|---|---|
| Dimensione del modulo: | 500*250mm | dimensione del mobile: | 500*500*65mm |
| Temperatura del colore: | 6000K-8000K | Valutazione IP: | IP65 |
| Manutenzione: | Prima/dopo | Nota: | *Informazioni di riferimento/ Configurazioni diverse/ parametri diversi |
| Evidenziare: | P1.25 outdoor LED display screen,IP65 fixed LED display cabinet,500x500mm Onyxa Series LED screen |
||
Descrizione di prodotto

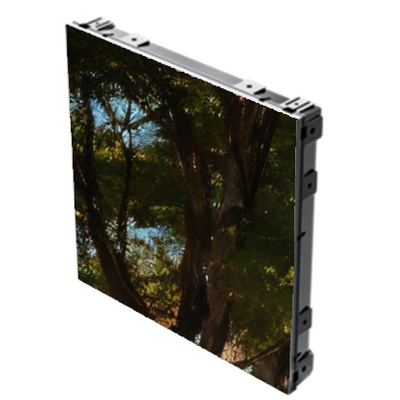

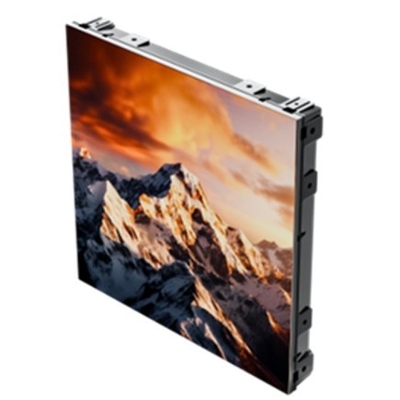

P1.25 Onyxa Series Fixed LED Display Screen IP65 Cabinet 500*500mm For Outdoor
Product Description:
The innovative magnetic suction module supports quick-front, quick-mount maintenance, and its fanless design ensures ultra-quiet operation at a noise level of ≤40dB. Point-by-point calibration technology realizes pixel-level uniform display, and 3840Hz high brush eliminates 1/3000s shutter shooting residual shadow. It’s suitable for conference centers, stage performances, and real estate showrooms.
Features:
-

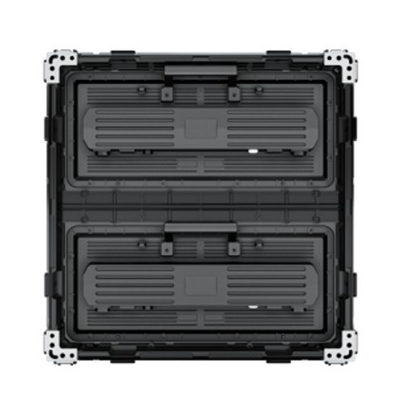

Magnetic Module: Module with magnet and lock design, fast to maintain and safe, can be Front and rear access
-
Work In Silence: Adopt fanless passive cooling design, working noise ≤ 40dB (whisper level)
-
Point By Point Calibration: Through the point-by-point white balance calibration technology, each LED lamp bead is independently compensated for color temperature
-
IP65 Protection: Full-sealed die-casing aluminum with IP65 weather protection resists water, moisture and dust from entering the display even in some of the harshest environments
Technical Parameters:
| Item | P1.25 |
| Pixel Pitch | 1.25mm |
| Resolution rate | 400*200Dots |
| Module size | 500*250 |
| Pixel color | 1R1G1B |
| Pixel LED | MIP0606 |
| Working voltage | DC3.8V/2.8V |
| Module Power | 65W |
| Driving IC | XC11206 |
| Driving way | 1/25 |
| HUB | HUB75 |
| Material | Die-CastAluminum |
| Cabinet Weight | 26kg/m² |
| Resolution rate | 400*400Dots |
| Cabinet size | 500*500*65mm |
| Module quantity | 2X1 |
| Density | 640000 Dots/㎡ |
| White balance | 2500-3500CD/㎡ |
| Color temperature | 6000K-8000K |
| view angel | H/V:140°/140° |
| Non-Flatness | ＜0.2mm |
| Module interval | ＜0.2mm |
| Maximal power/㎡ | ≤590W/㎡ |
| Average power/㎡ | ≤180W/㎡ |
| Frame frequency | 60Hz |
| Refresh frequency | 3840Hz |
| Gray grade | ≥16bit |
| Working temperature | -20~70℃ |
| Protecting rate | IP65 |
| Maintainace | Front/Back |
| Note | *Reference information/ different configurations/ different parameters |
Applications:
Our products are widely used in a variety of settings, including stage rentals, song and dance performances, conferences, exhibitions, stadiums, theaters, auditoriums, lecture halls, multi-function halls, conference rooms, performance venues, nightclubs, high-end entertainment venues, TV events like the Spring Festival Gala, and important cultural activities across provinces and cities.
Service and support:
Pre-Sale Services
-
Prompt Responses: Inquiries are addressed within 24 hours to provide timely assistance.
-
Market Insights: Detailed market research and forecasts help you make informed decisions.
-
Tailored Solutions: Customized proposals are designed to meet your specific requirements.
-
Sample Provision: Datasheets and product samples are readily available for evaluation.
-
Additional Services: Custom packaging options and factory visit arrangements are offered for added convenience.
In-Sale Services
-
Production Monitoring: Continuous updates and progress tracking throughout production.
-
Visual Updates: Photos and videos are provided upon request to keep you informed.
-
Free Spare Parts: Complimentary spare parts are included to enhance reliability and performance.
After-Sales Support
-
Rapid Complaint Handling: Issues are addressed within 24 hours with solutions provided within 48 hours.
-
Comprehensive Warranty: A 24-month warranty ensures peace of mind and reliability.
-
Technical Training: Free training sessions for technicians empower your team with essential skills.
-
Complete Documentation: A full set of documents, including an installation guide, software manual, maintenance guide, and control system software CD, ensures smooth operation and maintenance.
FAQ:
Q1: Can you accept the sample orders?
A1: Yes, we accept sample orders for quality verification and market testing.
Q2: Does there have any warranty?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: What is your MOQ?
A4: Any quantity is acceptable for your order. And the price is negotiable for large quantities.
Q5: Can it play HD video?
A5: Yes, it can realize HD video function with Novastar or Colorlight controlling system.
Q6: How can we guarantee quality?
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
