Outdoor P5.2-10.4 Transparent LED Video Wall 1000×500mm 5000 nits Front Service
Productdetails:
| Place of Origin: | CN |
| Merknaam: | VW |
| Certificering: | CE, ROHS |
| Model Number: | P5.2-10.4 |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Prijs: | Negotiate |
| Packaging Details: | Plywood box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2200 sqm/month |
|
Gedetailleerde informatie |
|||
| Product Name: | Outdoor P5.2-10.4 Transparent LED Video Wall 1000×500mm 5000 nits Front Service | LED Type: | SMD1921 |
|---|---|---|---|
| Operating Temperature: | -20℃~+50℃ | Lifespan: | 100,000 Hours |
| Module Size: | 500x125 MM | Viewing Angle: | H:140°；V:140° |
| Gray Scale: | 14bit | Pixel Pitch: | 5.2-10.4mm |
| Markeren: | P5.2-10.4 Transparent LED Video Wall,Front Service Transparent LED Video Wall |
||
Productomschrijving

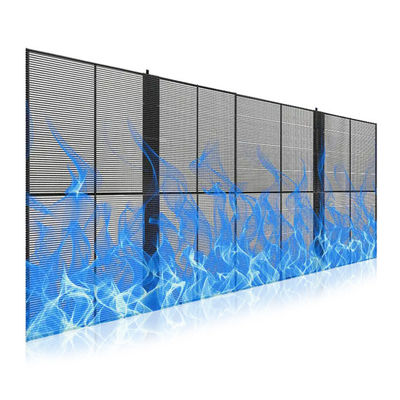

Outdoor P5.2-10.4 Transparent LED Video Wall 1000×500mm 5000 nits Front Service
Product Description:
Transparent LED screens provide an effective and compelling alternative to large format LED screens. The images on the screen are created by programming the LED to work together. By displaying the relevant pixel colors on the mapped LED, the lights are brought together to create the image. When integrated into a glass curtain wall, this effect is particularly powerful, allowing designers to provide screen solutions for retail buildings, with a focus on glass buildings without affecting the overall design.
Features:
- High contrast and brightness:Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm. Very convenient to use and move, saving a lot of transportation and assembling costs
- Stability long life time:Low power comsumption and energy saving, Low consumption of electricity to increase the lifetime of LED
- High Transparency and High Brightness:20-80% transparency rate, see through, suitable for glass wall mounting；>6500 nits brightness, for all outdoor environment
Technical Parameters:
| Technical Parameters | Transparent LED Display |
| Pixel Pitch: |
5.2-10.4 mm
|
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 60% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
Widely used for shopping malls, entertainment venues, building construction, government agencies, trade fair, fair, aiming at the exhibition, press conference, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
FAQ:
Q1: Can you provide OEM/ODM services?
A1: Sure, we have a mature technical team that can customize products and labels
Q2:ls your company a genuine manufacturer?
A2: We are a factory directly supplying from Shenzhen, Guangdong Province. Welcome to visitour factory.
Q3:How to choose a suitable display screen?
A3: Determine size and resolution based on usage scenarios and requirements, And the quality and stability of the display screen.
Q4: What kind of after-sales service can you provide?
A4: Technical support: Provide technical consultation and guidance to help users solve problemsencountered during use, Remote collaboration: A dedicated after-sales department operatesremotely online to ensure the normal use of the screen.
Q5: ls there a quality check before delivery of the displays?
A5: Absolutely. We conduct a thorough 100% quality test with a 72-hour aging process to ensureeach display unit meets our stringent quality standards before delivery.
Q6: How long is the delivery time for your displays?
A6: The typical delivery time is 15-20 days after receiving the deposit. However, delivery time may vary depending on order quantity and specific requirements.
