P5.2-10.4 Outdoor Transparent LED Display 1000×500mm Front Service 5000 nits
Productdetails:
| Place of Origin: | CN |
| Merknaam: | VW |
| Certificering: | CE, ROHS |
| Model Number: | P5.2-10.4 |
Betalen & Verzenden Algemene voorwaarden:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Prijs: | Negotiate |
| Packaging Details: | Plywood box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2200 sqm/month |
|
Gedetailleerde informatie |
|||
| Product name: | P5.2-10.4 Outdoor Transparent LED Display 1000×500mm Front Service 5000 nits | Pixel Pitch: | 5.2-10.4mm |
|---|---|---|---|
| LED Type: | SMD1921 | Cabinet dimension: | 1000×500mm |
| Module Size: | 500x125mm | Brightness: | 5000nits |
| Transparency rate: | 75% | Refresh rate: | 1920Hz |
Productomschrijving
P5.2-10.4 Outdoor Transparent LED Display 1000×500mm Front Service 5000 nits
Product Description:

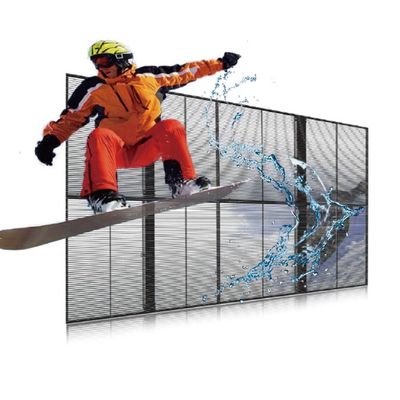

P5.2-10.4 Transparent LED screens provide a highly effective and captivating alternative to traditional large-format LED displays. These screens produce cohesive images by coordinating LEDs to light up in precise pixel colors. When integrated into glass curtain walls, they create an imposing effect, allowing designers to implement display solutions for retail spaces—particularly those with glass facades—without interrupting the architectural design.
Features:
- High contrast and brightness
Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm. Very convenient to use and move, saving a lot of transportation and assembling costs
- Stability long life time
Low power comsumption and energy saving, Low consumption of electricity to increase the lifetime of LED
- High Transparency
75% transparency rate, see through, suitable for glass wall mounting；>5000 nits brightness, for all outdoor environment
Technical Parameters:
| Technical Parameters | Transparent LED Display |
| Pixel Pitch: |
5.2-10.4 mm
|
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m² |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 75% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
| Installation Type: | Mounting/Hanging |
Applications:
Widely utilized in shopping malls, entertainment venues, architectural projects, government institutions, trade shows, and for purposes such as exhibitions, press conferences, airports, hotels, station waiting areas, indoor arenas, and various other public facilities.
FAQ:
Q1:Are you a manufacturer or trading company?
Q2:How does your factory do regarding quality control?
Q3:What is your MOQ?
A4:We can make the delivery within 3-5 working days for the led modules and 10-15days for the led finished screen according to the size and quantities of your order.
Q5:What technical supports can you offer?
A5:We provide all kinds of technology trainings for free, including the operation and maintenance training of the LED screens in our factory. We can send an engineer team to the country of the customer to instruct the installation.
Q6:Do you provide any free spare parts in each order?
A6:Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED lamp, IC, mask, power supply, receiving card, etc. ONE-STOP Supply of Ground Support and Truss.
