P2.85 Display Module Full Front Access Die-casting Aluminum Curved Video Wall
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | CN |
| Hàng hiệu: | VW |
| Chứng nhận: | CE, EMC, LVD, ROHS, FCC |
| Số mô hình: | P2.85 |
| Document: | SMART BLOCK series（waterm....pdf |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | Thương lượng |
|---|---|
| Giá bán: | Negotiate |
| chi tiết đóng gói: | Vỏ gỗ dán, hộp carton |
| Thời gian giao hàng: | 15 ngày làm việc |
| Điều khoản thanh toán: | T/T |
| Khả năng cung cấp: | 2000m2/tháng |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | Mô-đun hiển thị P2.85 Truy cập toàn bộ mặt trước Tường video cong bằng nhôm đúc | Độ phân giải pixel: | 2,85mm |
|---|---|---|---|
| Loại dẫn: | SMD1415 | BẢO TRÌ: | Truy cập đầy đủ phía trước |
| Độ sáng: | 5000 nits | tốc độ làm mới: | 3840Hz |
| Vật liệu mô-đun: | Nhôm đúc | Hệ thống điều khiển: | Novastar |
| Làm nổi bật: | P2.85 LED display module,die-cast aluminum video wall,full front access LED display |
||
Mô tả sản phẩm

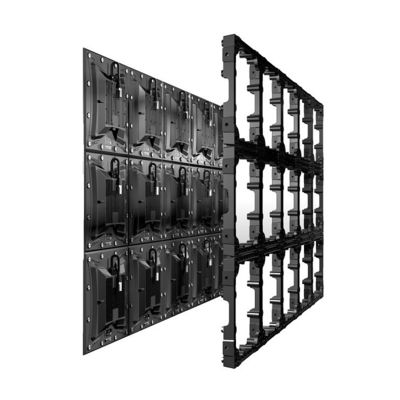

P2.85 Display Module Full Front Access Die-casting Aluminum Curved Video Wall
The P2.85 Outdoor LED Display Module delivers exceptional visual performance for various outdoor applications. With a precise 2.85mm pixel pitch, this module ensures high-definition imagery with superior clarity and detail, effectively capturing viewer attention from extended distances.
Engineered with a lightweight yet durable die-casting aluminum cabinet, this display module offers straightforward installation and seamless integration into diverse structural applications including building facades and freestanding frames.
Key Features
- Die-casting Aluminum Construction: Lightweight and durable aluminum panels ensure precise assembly with accurate hole alignment

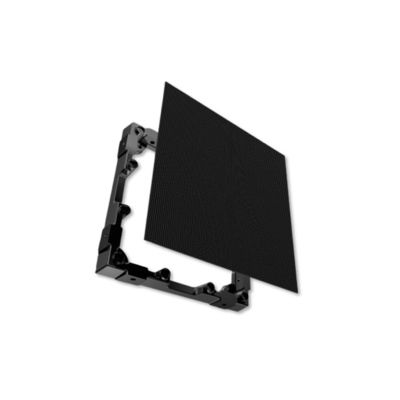

- Front Access Maintenance: Magnetic LED modules securely connect to the frame with optional safety rope reinforcement
- Integrated Power Box: Compact design combines power supply, receiving card, and hub board for individual module operation
- Curved Video Wall Capability: 45° edge modules with magnetic mounting enable seamless curved display configurations
- 2-in-1 Transmission Cable: Customized cable design allows simultaneous current and signal transmission
Technical Specifications
| Product Model | SMART BLOCK |
|---|---|
| Pixel Pitch | 2.85 mm |
| LED Type | SMD1415 |
| Pixel Density | 122,500 dots/sqm |
| Cabinet Dimension | 320×320mm |
| Module Resolution | 112×112 |
| Module Weight | 1.54 kg |
| Module + Frame Weight | 2.22 kg |
| Module Material | Die-casting aluminum |
| Driving Type | 1/16 |
| Brightness | 5000 nits |
| Max/Avg Power | 800/280 W/m² |
| Maintenance | Front service |
| Environment | Outdoor Use |
| IP Rating | IP67 |
| Refresh Rate | >3840 Hz |
| Installation Type | Mounting/Hanging |
| Gray Scale | 16 bits |
| Viewing Angle | H:140°; V:160° |
| Operational Temperature | -30℃ to +60℃ |
| Operational Humidity | 10% to 80% RH |
Applications
This versatile LED display module is ideal for advertising displays, informational signage, and event backdrops. With high brightness and superior resolution capabilities, it effectively captures audience attention and delivers impactful messaging in outdoor environments.
Frequently Asked Questions
Q1: How much is the freight?
Shipping costs are calculated based on screen dimensions and project specifications. Please provide your requirements for a detailed quotation.
Q2: What is the price per square meter?
Our professional sales engineers will provide customized pricing based on your specific project needs and requirements.
Q3: Can I customize the display?
Yes, we offer comprehensive customization services through our dedicated product development team to meet your specific requirements.
Q4: What is the minimum order quantity?
We have no minimum order restrictions. However, for optimal viewing quality, we recommend screens with at least 50,000 pixels to ensure clear video display.
Q5: How does your factory handle quality control?
We use genuine LED lamp beads exclusively, avoiding scattered or substandard components. Our manufacturing process incorporates silver-containing solder paste, pure copper power cords, and optimized cable routing to deliver superior screen quality and reliability for every customer.
