P3.9 Outdoor LED Display Module Magnetic 45° Design Front Service Die-casting AL
P3.9 Outdoor LED Display Module Magnetic 45° Design Front Service Die-casting AL
Brand Name
VW
Product Model
Smart Block Plus
Certificate
CE, ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
2000sqm/month
Product Details
Highlight:
P3.9 outdoor LED display module
,Magnetic outdoor LED display
,Die-casting AL LED module
Product Name:
P3.9 Outdoor LED Display Module Magnetic 45° Design Front Service Die-casting AL
Module Size:
250mm*500mm
Edge:
45° Design
Brightness:
5000nits
IP Rate:
IP67
Material:
Aluminum
Installation Method:
Wall Mounted/Hanging
Power Consumption:
600W/㎡
Operating Humidity:
10%~90%
Operating Temperature:
-20°C~50°C
Product Description
Detailed Specifications And Features
P3.9 Outdoor LED Display Module Magnetic 45° Design Front Service Die-casting AL
Our SMART BLOCK-PLUS series Outdoor LED Display Module is engineered for diverse outdoor applications. This 250mm × 500mm module integrates advanced technology into a high-performance product. The highly integrated design combines main LED display components into a single panel, enabling compact displays that can be assembled into various irregular sizes and used as multi-angle corner displays.
Key Features
- Integrated Design: Combines power supply, receiving card, and module into one cabinet
- IP67 Rating: High protection level for waterproof and dustproof performance
- Efficient Heat Dissipation: No external air conditioning required
- Cable All-in-One Design: Signal and power cables integrated
- Light Weight: Only 3.5kg per piece, reducing shipping costs
- Magnetic Design: Quick disassembly and installation
- 45° Design: Bevel edge design enables various shape splicing
Technical Parameters
| Parameter | P2.97 | P3.91 |
|---|---|---|
| Pixel Pitch | 2.97 mm | 3.91 mm |
| LED Type | SMD1415 | SMD1921 |
| Cabinet Dimension | 250×500 mm | 250×500 mm |
| Module Size | 250×250 mm | 250×250 mm |
| Cabinet Weight | 3.5 kg/pcs | 3.5 kg/pcs |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/21 | 1/16 |
| Brightness | >5000 nits | >5000 nits |
| Max/Avg Power | 97w/pcs | 97w/pcs |
| Maintenance | Front service | Front service |
| Environment | Outdoor Use | Outdoor Use |
| IP Rating | F: IP66, R: IP66 | F: IP66, R: IP66 |
| Refresh Rate | >3840 Hz | >3840 Hz |
| Installation Type | Mounting/Hanging | Mounting/Hanging |
| Gray Scale | 14 bit | 14 bit |
| Viewing Angle | H:140°; V:140° | H:140°; V:140° |
| Operational Temp | -20℃~+60℃ | -20℃~+60℃ |
| Operational Humidity | 10%~90% RH | 10%~90% RH |

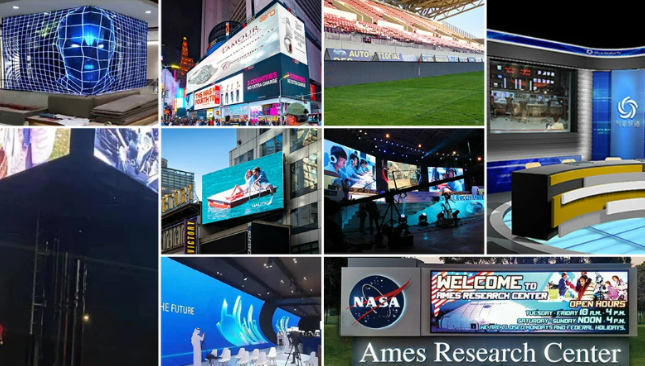

Applications
Our SMART BLOCK PLUS integrated LED module is highly recommended for outdoor video wall projects. The special 45° edges design enables construction of LED screens with various shapes and display areas. Contact us to learn more about this versatile product.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
We are Visual World, a professional LED display manufacturer with our own 5000㎡ factory in Shenzhen. You buy directly from the source with no middleman markup.
Q2: How fast can you deliver?
15-20 working days for standard orders. Rush orders and installation support available on request.
Q3: How long does shipping take?
Express and air shipping: 5-10 days. Sea shipping: 15-55 days depending on destination country.
Q4: What about your quality?
We use genuine lamp beads only—no scattered lights or tail lights. Our manufacturing includes silver-containing solder paste, pure copper power cords, and short cables to ensure reliable performance.
Q5: Why purchase from Visual World?
Stable and reliable quality, efficient professional customer service, competitive factory pricing, and fast delivery times.
Q6: Any certificate?
Our products have Patent numbers, CE and ROHS certification. Contact us for other certification requirements.
