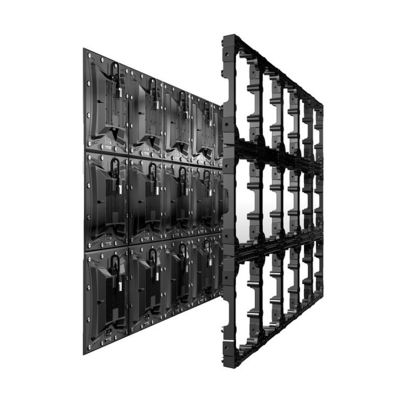

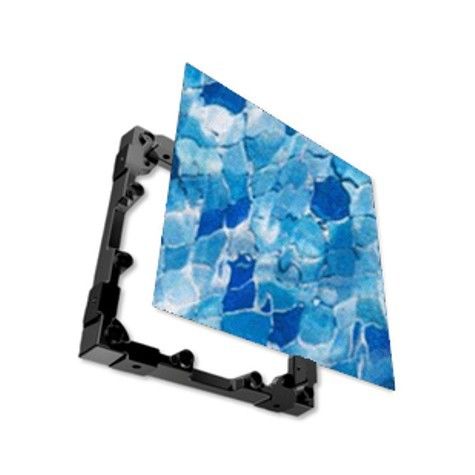

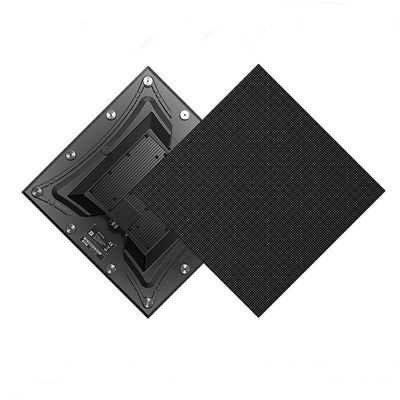

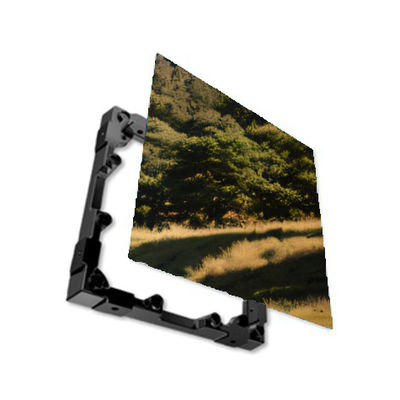

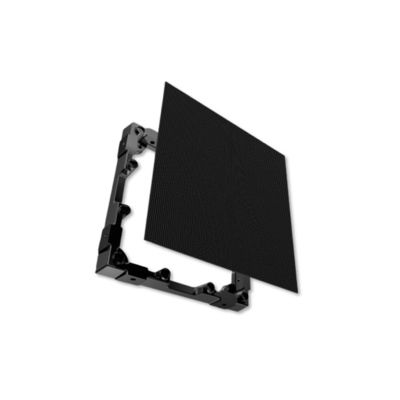

P2.85 Outdoor LED Display Module Full Front Access 320x320mm Curved Video Wall
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, EMC, LVD, ROHS, FCC |
| Model Number: | P2.85 |
| Document: | SMART BLOCK series（waterm....pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | plywood case, carton box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P2.85 Outdoor LED Display Module Full Front Access 320x320mm Curved Video Wall | Pixel Pitch: | 2.85mm |
|---|---|---|---|
| LED Type: | SMD1415 | Maintenance: | Full Front Access |
| Brightness: | 5000 Nits | Refresh Rate: | 3840Hz |
| Module Material: | Die-casting Aluminum | Control System: | NovaStar |
| Highlight: | P2.85 outdoor LED display module,320x320mm curved LED video wall,full front access LED display module |
||
Product Description
P2.85 Outdoor LED Display Module Full Front Access 320x320mm Curved Video Wall
The P2.85 Outdoor LED Display Module delivers exceptional visual performance for various outdoor applications. With a 2.85mm pixel pitch, this module ensures high clarity and detailed image display that captures viewer attention from distance.
Constructed with die-casting aluminum cabinets, this display combines lightweight design with superior durability. The cabinet design facilitates easy installation and integration into building facades, freestanding frames, and other structures.
Key Features
- Die-casting Aluminum: Lightweight and durable aluminum panel ensures precise assembly with accurate hole positioning
- Front Access Maintenance: Magnetic LED modules securely connect to frame with optional safety rope for enhanced connection
- Integrated Power Box: Power supply, receiving card, and hub board simplified into compact power box for individual module operation
- Curved Video Wall Capability: 45° edge modules compatible with custom metal cabinets using magnets for curved display configurations
- 2-in-1 Transmitting Cable: Custom cable design enables simultaneous current and signal transmission
Technical Specifications
| Product Model | SMART BLOCK |
| Pixel Pitch | 2.85 mm |
| LED Type | SMD1415 |
| Pixel Density | 122,500 dots/sqm |
| Cabinet Dimension | 320x320mm |
| Module Resolution | 112×112 |
| Module Weight | 1.54 kg |
| Module+Frame Weight | 2.22 kg |
| Module Material | Die-casting aluminum |
| Brightness | 5000 nits |
| Max/Avg Power | 800/280 W/m² |
| IP Rating | IP67 |
| Refresh Rate | >3840 Hz |
| Viewing Angle | H:140°; V:160° |
| Operational Temperature | -30℃ to +60℃ |
Applications
Ideal for advertising displays, informational signage, and event backgrounds. The high brightness and resolution effectively attract attention and deliver messages in outdoor environments.
Frequently Asked Questions
How can I get an accurate quote for an advertising signage LED video wall display screen?
Please specify: indoor/outdoor requirements, pixel pitch, screen size, usage scenarios (concerts, churches, exhibition halls, conference rooms, shopping mall billboards). CAD drawings or artwork specifications are helpful for accurate pricing.
How long does it take to receive pricing for indoor and outdoor LED display screens?
We provide immediate quotes upon receiving your inquiry. For urgent pricing requests, please contact us via TM message, email, WhatsApp, or other communication channels.
What is your delivery time for fixed video walls and rental LED panels?
LED modules in stock ship next day. Customized products typically ship within 15 days for small quantities, and 15-20 working days for large quantity orders.
How many years is your LED screen warranty?
Warranty periods range from 2-5 years depending on LED screen configuration and order specifications.
How is your digital HD LED advertising screen packaged?
Screens are packed in cartons, wooden cases, or flight cases to ensure safe transportation and delivery.
