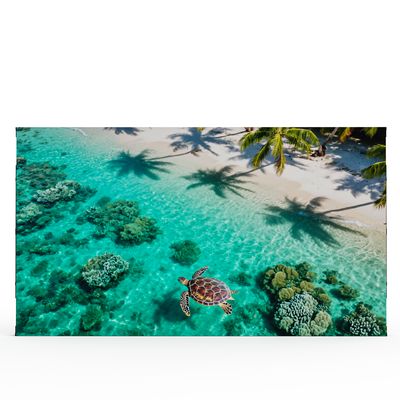

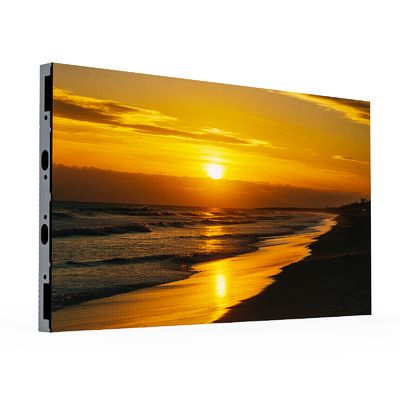

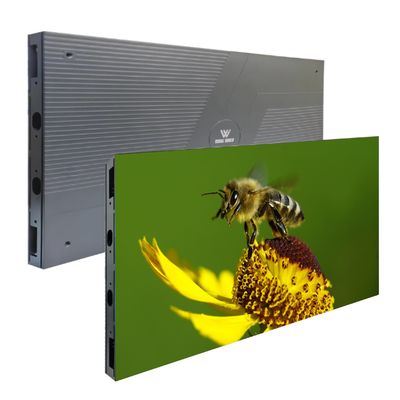

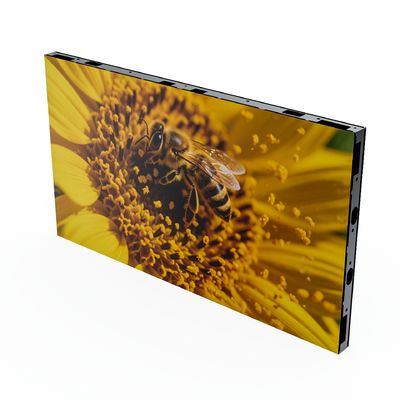

P1.25 Fine Pitch LED Display Flip-COB Die-casting Aluminum Front Service 4.6kg
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pitch LED Display Flip-COB Die-casting Aluminum Front Service 4.6kg | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aluminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P1.25 fine pitch LED display,Flip-COB die-casting aluminum LED,4.6kg lightweight LED display |
||
Product Description
P1.25 Fine Pitch LED Display Flip-COB Die-casting Aluminum Front Service 4.6kg
Product Description:
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
|
Model |
P0.7 |
P0.9 |
P1.25 |
P1.56 |
|
Pixel Pitch |
0.78mm |
0.9375mm |
1.25mm |
1.56mm |
|
LED Type |
Flip-COB (common cathode) |
|||
|
Cabinet Dimension (mm) |
600*337.5*29.5 |
|||
|
Cabinet Resolution |
768*432 |
640*360 |
480*270 |
384*216 |
|
Module Size(mm) |
150x168.75 |
|||
|
Cabinet Weight |
4kg |
|||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Scan Mode |
1/36 |
1/54 or 1/36 |
1/60 or 1/27 |
1/48 |
|
maintenance |
Front service |
|||
|
Brightness |
600/2000 nits |
600/2000 nits |
600/1500 nits |
600/1000 nits |
|
Max Power |
390W/m² |
420W/m² |
330W/m² |
330W/m² |
|
Avg Power |
136W/m² |
147W/m² |
100W/m² |
100W/m² |
|
Waterproof Level |
Front: IP54 Rear: IP30 |
|||
|
Refresh Rate |
>3840Hz |
|||
|
Installation Type |
Mounting/Hanging/Stacking |
|||
|
Gray Scale |
16bit |
|||
Applications:
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
