P8 Adhesive Transparent LED Display SMD2121 80% Transparency 3.5KG Per Panel
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC,FCC |
| Model Number: | TP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export carton box, Plywood case |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P8 Adhesive Transparent LED Display SMD2121 80% Transparency 3.5KG Per Panel | Pixel Pitch: | P6/P8/P10 |
|---|---|---|---|
| Brightness: | 1500-3000nits | Module Size: | 1000*240mm |
| Thickness: | 3mm | Transparency: | 65%/70%/80% |
| IP Rating: | IP43 | Weight: | 3.5kg |
| Highlight: | adhesive transparent LED display SMD2121,transparent LED display 80% transparency,LED display panel 3.5KG lightweight |
||
Product Description
P8 Adhesive Transparent LED Display SMD2121 80% Transparency 3.5KG Per Panel
Product Description:
The P8 adhesive transparent LED display is paper-thin and lightweight, seamlessly adhering to curved surfaces like a sticker. The flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, which can be quickly completed without bracket deployment, for architectural curtain walls, and window displays offer an invisible display technology.
Features:
- Ultra thin
3mm thickness makes it the thinnest led display in the market.

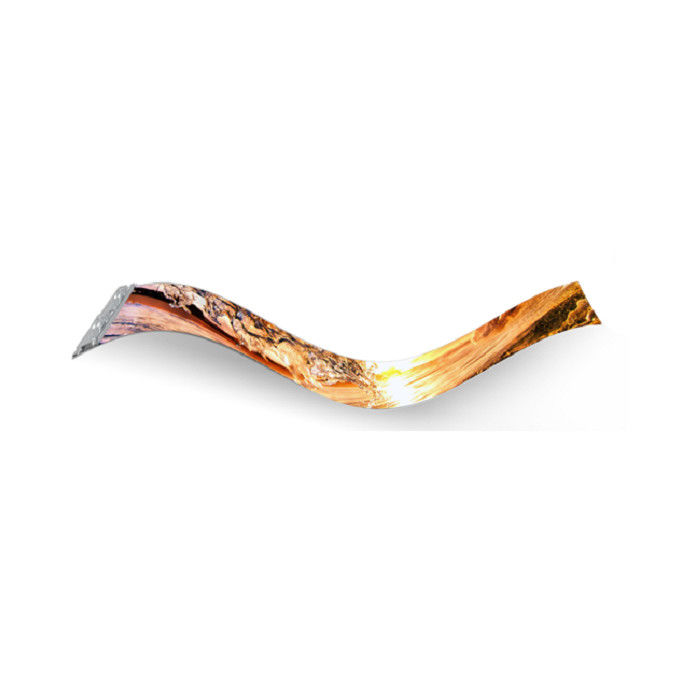

- Flexible
Bendable adhesive film led panel, can fit on curved glass wall.
- High transparency
Transparent film makes it up to 80% transparency rate. Best choice for store window glass.
- UV Resistance
Anti-UV material to avoid to become yellowish.
- Clipping size
The film panel is cuttable to meet different installation condition such irregular glass.
Technical Parameters:
| Product Model | TP6 | TP8 | TP10 |
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | ||
| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
Applications:
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
FAQ
Q1: Are you a manufacturer or trading company?
- We are a professional OEM/ODM manufacturer ,which has specialized in the LED display industry for more than 10 years.
- We has cooperated with more than 30 brands and has projects in more than 90 countries.
Q2: How to install?
- Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use;
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Q3: What about your quality?
- The lamp beads used in our LED display are all genuine lamp beads. We are do not need to be used scattered lights and tail lights.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q4: What about the warranty?
- Calculated from the goods to the customer, the warranty period is 5 years, don’t worry, there is a problem with the module, you can send it back to us for repair.
Q5: What about the lead time?
- Orders less than 50 square meter display, lead time is 15 working days.
Q6: Can I order a sample?
-Yes, We welcome customers to order samples to check our product quality of our products and service.
Q7: What is your MOQ?
- Any quantity is acceptable for your order. And the price is negotiable for large quantities.
