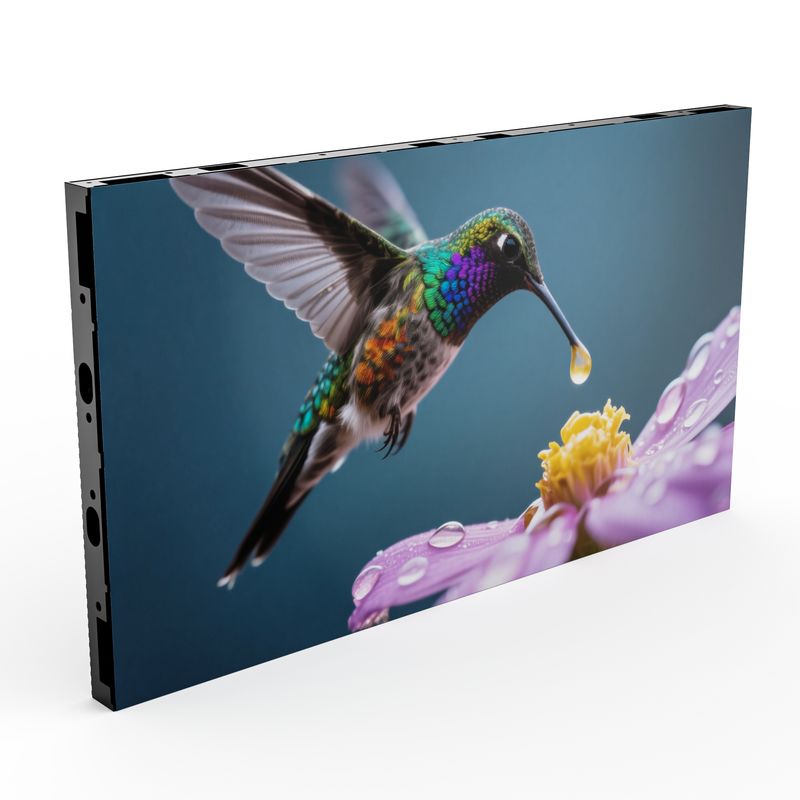

P1.25 Fine Pitch LED Display Flip-COB Front Service 600x337.5mm Die-casting Aluminum
P1.25 fine pitch LED display
,Flip-COB front service LED screen
,Die-casting aluminum LED display
P1.25 Fine Pitch LED Display Flip-COB Front Service 600x337.5mm Die-casting Aluminum
Product Description:
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
|
Model |
P0.7 |
P0.9 |
P1.25 |
P1.56 |
|
Pixel Pitch |
0.78mm |
0.9375mm |
1.25mm |
1.56mm |
|
LED Type |
Flip-COB (common cathode) |
|||
|
Cabinet Dimension (mm) |
600*337.5*29.5 |
|||
|
Cabinet Resolution |
768*432 |
640*360 |
480*270 |
384*216 |
|
Module Size(mm) |
150x168.75 |
|||
|
Cabinet Weight |
4kg |
|||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Scan Mode |
1/36 |
1/54 or 1/36 |
1/60 or 1/27 |
1/48 |
|
maintenance |
Front service |
|||
|
Brightness |
600/2000 nits |
600/2000 nits |
600/1500 nits |
600/1000 nits |
|
Max Power |
390W/m² |
420W/m² |
330W/m² |
330W/m² |
|
Avg Power |
136W/m² |
147W/m² |
100W/m² |
100W/m² |
|
Waterproof Level |
Front: IP54 Rear: IP30 |
|||
|
Refresh Rate |
>3840Hz |
|||
|
Installation Type |
Mounting/Hanging/Stacking |
|||
|
Gray Scale |
16bit |
|||
Applications:
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
FAQ:
Q1: Are you a manufacturer or trading company?
- We are a professional OEM/ODM manufacturer ,which has specialized in the LED display industry for more than 10 years.
- We has cooperated with more than 30 brands and has projects in more than 90 countries.
Q2: How to install?
- Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use;
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Q3: What about your quality?
- The lamp beads used in our LED display are all genuine lamp beads. We are do not need to be used scattered lights and tail lights.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q4: What about the warranty?
- Calculated from the goods to the customer, the warranty period is 5 years, don’t worry, there is a problem with the module, you can send it back to us for repair.
Q5: What about the lead time?
- Orders less than 50 square meter display, lead time is 15 working days.
Q6: Can I order a sample?
-Yes, We welcome customers to order samples to check our product quality of our products and service.
Q7: What is your MOQ?
- Any quantity is acceptable for your order. And the price is negotiable for large quantities.
-
