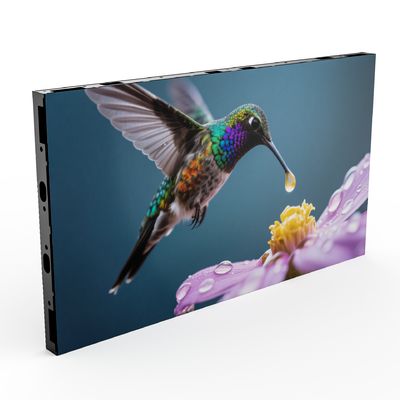

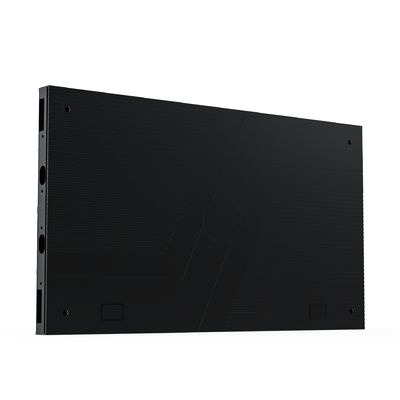

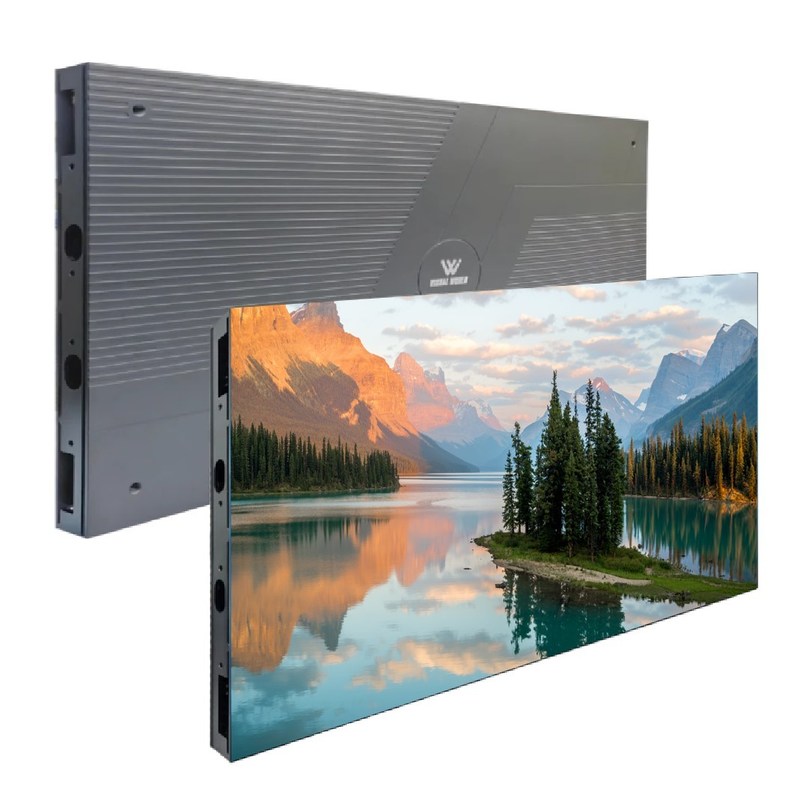

P1.25 Fine Pitch LED Display Flip-COB Die-casting Aluminum Front Service
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pitch LED Display Flip-COB Die-casting Aluminum Front Service | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aluminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P1.25 fine pitch LED display,Flip-COB LED display,Die-casting aluminum LED screen |
||
Product Description
P1.25 Fine Pitch LED Display Flip-COB Die-casting Aluminum Front Service
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Key Features
- Full flip-chip COB process with comprehensive protection including anti-collision, waterproof, moisture-proof, and salt spray resistance
- Module utilizes 3D ink printing technology, increasing contrast by 20% and reducing brightness requirements
- Integrated LCD status display panel for real-time monitoring of cabinet operation status
- Module PCB features HDI multi-layer circuit board design for superior color uniformity and even temperature distribution
- Complete series employs Sunrise's energy-saving common cathode chip technology with 16-bit grayscale performance
Technical Specifications
| Parameter | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size (mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Scan Mode | 1/36 | 1/54 or 1/36 | 1/60 or 1/27 | 1/48 |
| Maintenance | Front Service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| Waterproof Level | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
Applications
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment
Frequently Asked Questions
Why should you buy from us instead of other suppliers?
With dedicated product and technology R&D and a long-term cooperation philosophy, Visual World delivers quality equivalent to major enterprises at more favorable pricing with comprehensive service support before, during, and after sale. We provide complete technical support and solutions.
What types of displays do you provide?
We offer comprehensive LED display solutions including indoor, outdoor, rental, advertising, transparent, and poster LED displays.
Do your display screens comply with international certification standards?
Yes, our display screens meet various international certification standards including CE, RoHS, FCC, and others.
Do you support custom design and customization requests for your display screens?
Yes, we provide custom design and manufacturing services tailored to specific customer requirements and demands.
What technical support do you offer?
We provide comprehensive technical training at no cost, including operation and maintenance training at our facility. We can also deploy engineering teams to customer locations for installation guidance and support.
