P3.9 Holographic Transparent LED Display Rear Maintenance 85% High Transparency
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T,L/C,D/A,D/P |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 Holographic Transparent LED Display Rear Maintenance 85% High Transparency | Brightness: | 1000-5000nits |
|---|---|---|---|
| Waterproof: | IP42 | Led Type: | SMD1415 1R1PG1PB UV |
| Driving Method: | Static | Transparent Rate: | 70% |
| Maintenance: | Rear Service | Cabinet Size: | 600/1200/1800x500/600/700/800mm |
| Cabinet Material: | Aluminum+PCB | Panel Weight: | 6 Kg/sqm |
| Highlight: | P3.9 transparent LED display,holographic LED display rear maintenance,high transparency indoor LED screen |
||
Product Description

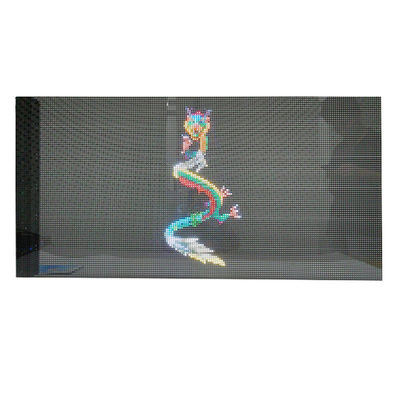

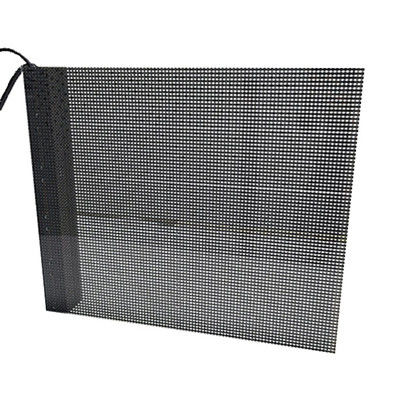

P3.9 Holographic Transparent LED Display Rear Maintenance 85% High Transparency
Product Description:
P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.
Features:
-
Transparent:Industry premiere,with no structural backbone；Real fully transparent；Permeability can reach 85%
- Thin:Module thickness<6mm；Seamless curved surface mounting Integrated seamlessly onto glass
- Foldable and arbitrarytransformation shape；Soft and bendable.lt can becustomized into different shapes according to different scenes, for example,triangles, ellipses, etc.
Technical Parameters:
| Pixel Pitch (H/V) | W:3.9;H:3.9mm | W:6.25;H:6.25mm |
| Module Size | 250x1000/250x1200/250x1500mm | |
| LED Configuration | SMD1415 1R1PG1PB UV | |
| Pixel Density | 65536dot/㎡ | 25600dot/㎡ |
| Transparency | 80% | 85% |
| Material | Case Aluminum+PCB 1.8mm | |
| Maintenance | Rear | |
| Driving Type | Static | |
| Control Method | Synchronous/Asynchronous | |
| Viewing Distance | > 4m | > 6m |
| Cabinet Weight | 6kg/㎡ | |
| IP Rating ( front/back) | IP20 | |
| Brightness | 2000-3000 nits | |
| Viewing Angle (H/V) | H:160°；V:160° | |
| Refresh Rate | 3840 Hz | |
| Gray Scale | 16 bit | |
| Max/Avg Power | 800/280 W/m² | |
| Environment | indoor | |
| Operational Temp | -20℃~+60℃ | |
| Operational Humidity | 10%~90% RH | |
| Operating Life | 100,000hours | |
Applications:
-
Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.
-
Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.
-
Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.
-
Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.
FAQ:
Q1: How can we guarantee quality?
A1: Six quality control steps ensure your ordered screens good:
1).Material check by professional workers and machines.
2).Debug every modules.
3). 48-hour aging test for all modules before assembling.
4).Test every cabinet's function after assembling by engineers and machines.
5).72-hour aging test for whole screen before shipment.
6). All details final inspection again before package.
Q2:What can you buy from us?
A2: LED Display,LED Screen,LED Sign,LED modules,LED billboard,etc.
Q3: Why should you buy from us not from other suppliers?
A3: After the 10 years' development, Visual World Co., Ltd has accumulated rich experience of R&D and has the first-class automated production equipment, standard clean automation production plant and anti-static system devices.
Q4:What services can we provide?
A4: 2-year quality warranty and life-long repairing service.
If any components need to repair or replace, you can send it back to Shenzhen.
