P8 Adhesive Transparent LED Display 3.5KG Per Panel UV Resistance 80% Transparency
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC,FCC |
| Model Number: | TP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export carton box, Plywood case |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P8 Adhesive Transparent LED Display 3.5KG Per Panel UV Resistance 80% Transparency | Pixel Pitch: | P6/P8/P10 |
|---|---|---|---|
| Brightness: | 1500-3000nits | Module Size: | 1000*240mm |
| Thickness: | 3mm | Transparency: | 65%/70%/80% |
| IP Rating: | IP43 | Weight: | 3.5kg |
| Highlight: | adhesive transparent LED display 3.5KG,transparent LED display UV resistance,P8 LED display 80% transparency |
||
Product Description
P8 Adhesive Transparent LED Display 3.5KG Per Panel UV Resistance 80% Transparency
Product Description:

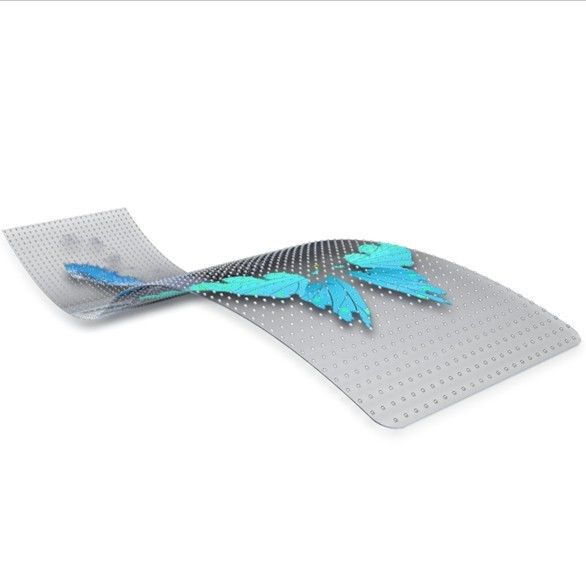

The P8 adhesive transparent LED display is paper-thin and lightweight, seamlessly adhering to curved surfaces like a sticker. The flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, which can be quickly completed without bracket deployment, for architectural curtain walls, and window displays offer an invisible display technology.
Features:

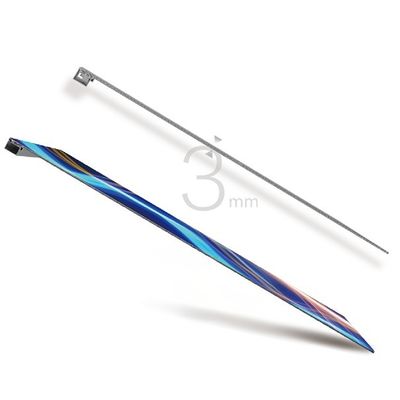

- Ultra thin
3mm thickness makes it the thinnest led display in the market.

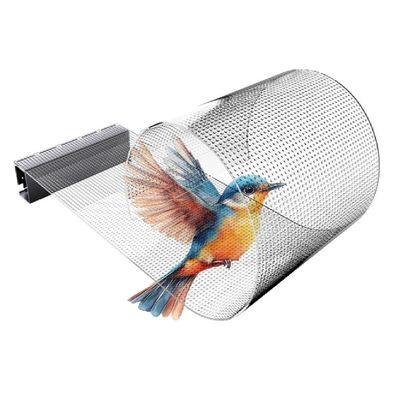

- Flexible
Bendable adhesive film led panel, can fit on curved glass wall.
- High transparency
Transparent film makes it up to 80% transparency rate. Best choice for store window glass.
- UV Resistance
Anti-UV material to avoid to become yellowish.
- Clipping size
The film panel is cuttable to meet different installation condition such irregular glass.
Technical Parameters:
| Product Model | TP6 | TP8 | TP10 |
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | ||
| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
Applications:
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
FAQ
Q1: How much is the freight?
A1: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q2: What is Price per square meter of screen?
A2: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: May I know the Minimum order for your products?
A4: We have no limit for different size of the screen, but usually one screen’s dots are more than 50000 dots will be clear for the viewer to see the video on the screen.
Q5: How does your factory do regarding quality control?
A5: The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
