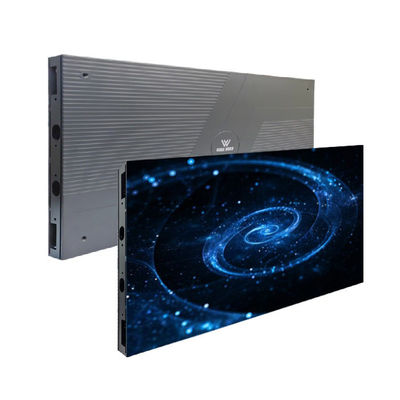

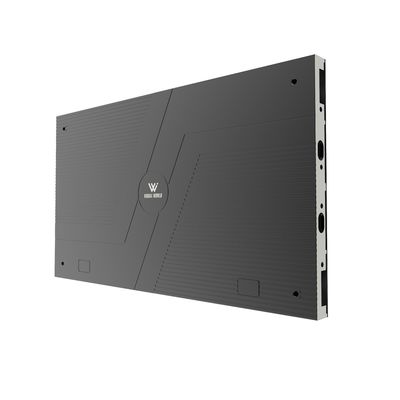

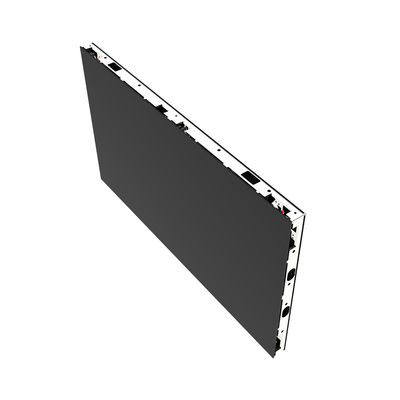

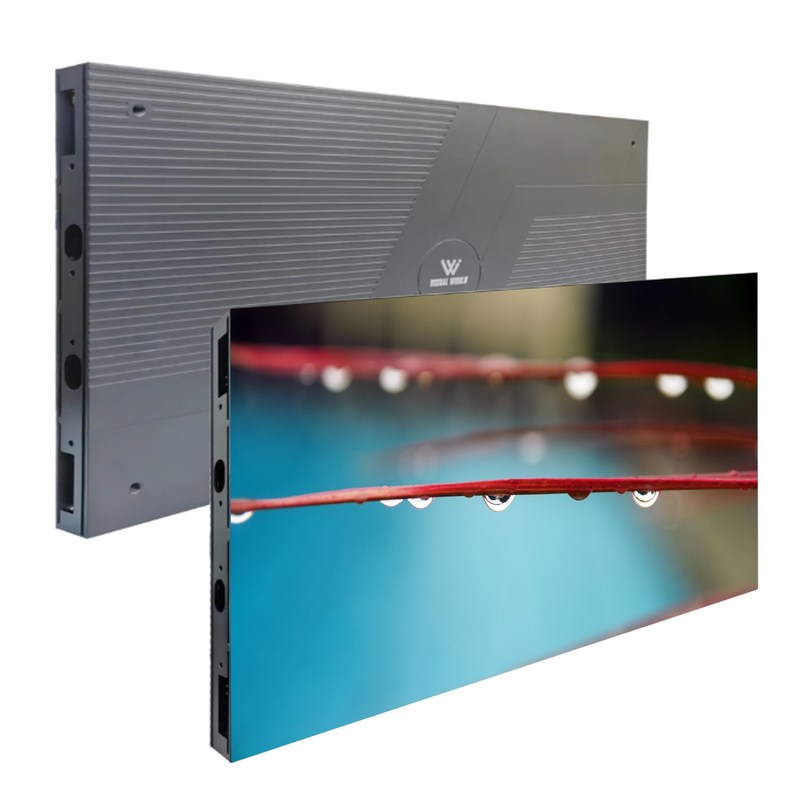

P1.25 Fine Pitch LED Display Flip-COB Die-casting AL Front Maintenance 600*337.5mm
P1.25 Fine Pitch LED Display Flip-COB Die-casting AL Front Maintenance 600*337.5mm
Brand Name
Visual World
Product Model
P1.25
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:
P1.25 fine pitch LED display
,Flip-COB die-casting LED screen
,600x337.5mm maintenance LED display
Product Name:
P1.25 Fine Pitch LED Display Flip-COB Die-casting AL Front Maintenance 600*337.5mm
Pixel Pitch:
P0.7/P0.9/P1.25/P1.56
Cabinet Weight:
4.6kg
Brightness:
0-2000nits
Cabinet Material:
Die-casting Aluminum
LED Type:
COB
Cabinet Dimension:
600x337.5mm
Maintenance:
Front Service
Product Description
Detailed Specifications And Features
P1.25 Fine Pitch LED Display Flip-COB Die-casting AL Front Maintenance 600×337.5mm
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600×337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Key Features
Full flip-chip COB process with comprehensive protection including anti-collision, waterproof, moisture-proof, and salt spray resistance
3D ink printing technology increases contrast by 20% and reduces brightness requirements
LCD status display panel for real-time monitoring of cabinet operation status
HDI multi-layer circuit board design ensures excellent color uniformity and even temperature distribution
Sunrise energy-saving common cathode chip technology with 16-bit grayscale for superior performance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | P1.25 |
| Pixel Pitch | 1.25mm |
| LED Type | Flip-COB (common cathode) |
| Cabinet Dimension | 600×337.5×29.5mm |
| Cabinet Resolution | 480×270 pixels |
| Module Size | 150×168.75mm |
| Cabinet Weight | 4kg |
| Cabinet Material | Die-casting Aluminum |
| Scan Mode | 1/60 or 1/27 |
| Maintenance | Front Service |
| Brightness | 600/1500 nits |
| Max Power | 330W/m² |
| Average Power | 100W/m² |
| Waterproof Level | Front: IP54 | Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type | Mounting/Hanging/Stacking |
| Gray Scale | 16bit |
Applications
Advertising Publish
Retail Store
Shopping Mall
Home Cinema
Welcome Display
Self-Service Business
Exhibition Hall
Airport
Subway
Elevator
Restaurant & Hotel Supplies
Education
Medical Treatment
Frequently Asked Questions
How much is the freight?
The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
What is Price per square meter of screen?
Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Can I customize it?
Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
May I know the Minimum order for your products?
We have no limit for different size of the screen, but usually one screen's dots are more than 50000 dots will be clear for the viewer to see the video on the screen.
How does your factory do regarding quality control?
The lamp beads used in our LED display are all genuine lamp beads. We do not use scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
