P8 Adhesive Transparent LED Display 80% Transparency UV Resistance 3.5KG Per Panel
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC,FCC |
| Model Number: | TP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export carton box, Plywood case |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P8 Adhesive Transparent LED Display 80% Transparency UV Resistance 3.5KG Per Panel | Pixel Pitch: | P6/P8/P10 |
|---|---|---|---|
| Brightness: | 1500-3000nits | Module Size: | 1000*240mm |
| Thickness: | 3mm | Transparency: | 65%/70%/80% |
| IP Rating: | IP43 | Weight: | 3.5kg |
| Highlight: | adhesive transparent LED display with UV resistance,P8 transparent LED display panel,lightweight adhesive LED display 3.5KG |
||
Product Description
P8 Adhesive Transparent LED Display 80% Transparency UV Resistance 3.5KG Per Panel

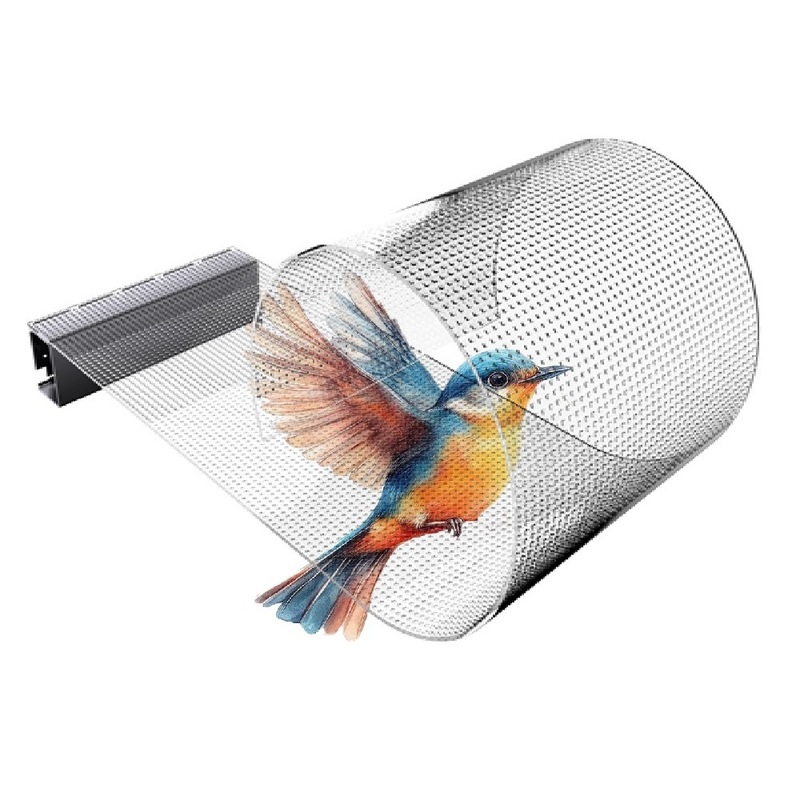

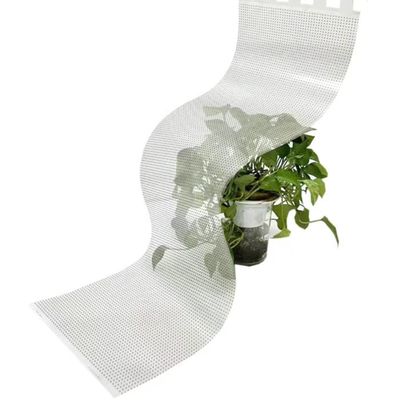

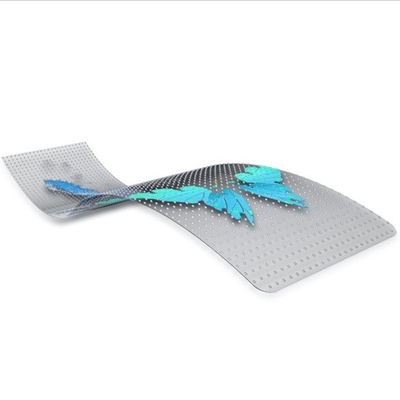

The P8 adhesive transparent LED display is paper-thin and lightweight, seamlessly adhering to curved surfaces like a sticker. The flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, which can be quickly completed without bracket deployment, for architectural curtain walls, and window displays offer an invisible display technology.
Product Quick Details:
- Adhesive film LED display for glass applications
- Lightweight at 3.5 kg per panel
- Easy and quick to install
- High brightness options of 1500-3000 nits
Features:

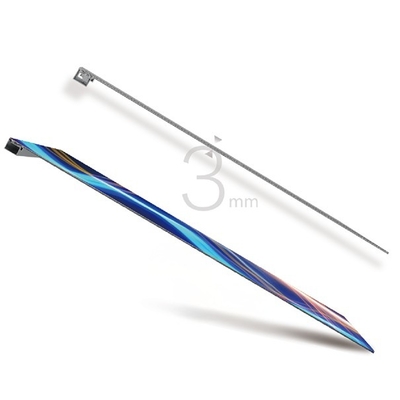

- Ultra thin - 3mm thickness makes it the thinnest LED display in the market.
- Flexible - Bendable adhesive film LED panel, can fit on curved glass wall.
- High transparency - Transparent film makes it up to 80% transparency rate. Best choice for store window glass.
- UV Resistance - Anti-UV material to avoid becoming yellowish.
- Clipping size - The film panel is cuttable to meet different installation conditions such as irregular glass.
Technical Parameters:
| Product Model | TP6 | TP8 | TP10 |
|---|---|---|---|
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | ||
| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
Applications:
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
Frequently Asked Questions
Q1: How can I get technical support?
A1: We treasure every customer that shake hands with our Visual World. We offer you TEAMVIEWER help by Online Video and can send professional engineer to your city to offer on-site guide.
Q2: What about your service?
A2: We can offer a complete LED design solution for your LED project before confirming the order. We can instruct you how to use, configure your LED display, and do some maintenance with spare parts. Also, we can send professional engineer to your city to offer on-site guide and offer training. Mostly, our LED display do not have big problems within warranty time.
Q3: How to operate and use it?
A3: It can by controlled by PC and Smartphone very easily. Welcome to inquiry for more information. We provide video guidance and remote assistance.
Q4: Are you a manufacturer or a trading company? Do you have your own factory and R &D team?
A4: We are a leading LED display manufacturer with over 10 years of experience, boasting a modern production facility and a professional R&D team. This ensures direct control over product quality, cost, and production cycle, enabling us to provide our customers with the most competitive prices and reliable OEM/ODM services.
Q5: What is the minimum order quantity (MOQ)? Do you support sample orders?
A5: We understand the need for new customers to test products. We support sample orders, with an MOQ typically of one standard carton or one minimum order unit. For bulk orders, we offer more competitive pricing. Specific MOQs are negotiable based on product model.
