P2.85 Display Module Full Front Access Die-casting AL For Outdoor Advertising
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, EMC, LVD, ROHS, FCC |
| Model Number: | P2.85 |
| Document: | SMART BLOCK series（waterm....pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | plywood case, carton box |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P2.85 Display Module Full Front Access Die-casting AL For Outdoor Advertising | Pixel Pitch: | 2.85mm |
|---|---|---|---|
| LED Type: | SMD1415 | Maintenance: | Full Front Access |
| Brightness: | 5000 Nits | Refresh Rate: | 3840Hz |
| Module Material: | Die-casting Aluminum | Control System: | NovaStar |
| Highlight: | P2.85 outdoor LED display module,full front access LED module,die-casting AL outdoor display |
||
Product Description
P2.85 Display Module Full Front Access Die-casting AL For Outdoor Advertising
Product Description
The P2.85 Outdoor LED Display Module delivers exceptional visual performance for outdoor environments. With a 2.85mm pixel pitch, this module ensures high clarity and detailed images that capture attention from a distance. The die-casting aluminum cabinet provides durability while remaining lightweight, facilitating easy installation on building facades or freestanding frames.
Key Features
- Die-casting aluminum: Lightweight yet durable construction ensures precise assembly with accurate hole positioning

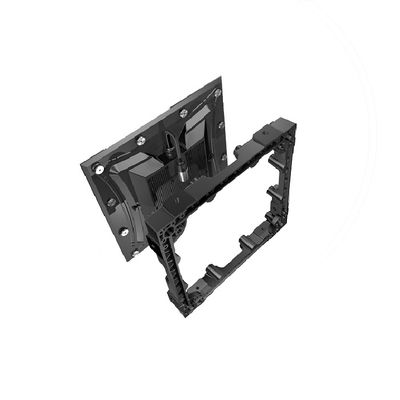

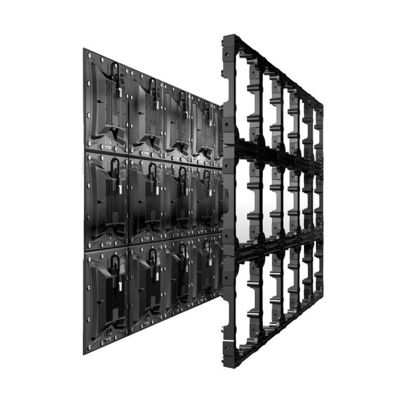

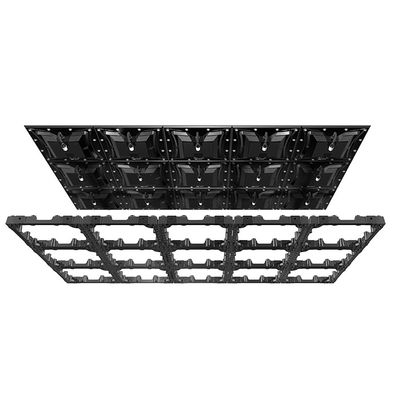

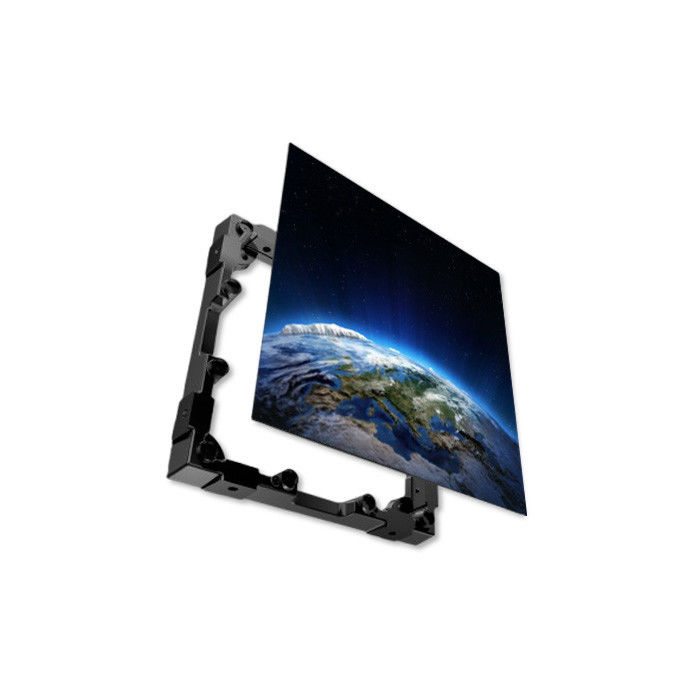

- Front access: Magnetic LED modules securely connect to the frame with optional safety rope for added stability
- Power box integration: Compact design combines power supply, receiving card and hub board for individual module operation
- Curved video wall capability: 45° edge modules enable curved LED wall configurations using simple magnetic mounting
- 2-in-1 transmitting cable: Custom cable simultaneously transmits current and signal for efficient operation
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SMART BLOCK |
| Pixel Pitch | 2.85 mm |
| LED Type | SMD1415 |
| Pixel Density | 122500 dots/sqm |
| Cabinet Dimension | 320x320mm |
| Module Resolution | 112*112 |
| Module Weight | 1.54 kg |
| Module+Frame Weight | 2.22 kg |
| Module Material | Die-casting aluminum |
| Driving Type | 1/16 |
| Brightness | 5000 nits |
| Max/Avg Power | 800/280 W/m2 |
| Maintenance | Front service |
| Environment | Outdoor Use |
| IP Rating | IP67 |
| Refresh Rate | >3840 Hz |
| Installation Type | Mounting/Hanging |
| Gray Scale | 16 bits |
| Viewing Angle | H:140°; V:160° |
| Operational Temp | -30℃~+60℃ |
| Operational Humidity | 10%~80% RH |
Applications
Ideal for outdoor advertising, informational displays, and event backdrops. The high brightness and resolution effectively capture attention and communicate messages clearly in various outdoor environments.
Frequently Asked Questions
Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system that supports cluster play and management. Control options include APP, Phone, WIFI, iPad, Laptop, PC, and Cloud control for convenient operation.
Q2: Can I have a sample order for LED screen?
A2: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q3: Is it OK to print my logo on product?
A3: Yes. Please inform us formally before production and confirm the design first based on our sample.
Q4: What is your best service?
A4: Our comprehensive service includes:
- Dedicated sales engineer for each customer
- Customized project solutions
- Order tracking with detailed updates
- Installation and usage guidance
- Ongoing after-sales support
Q5: How about your delivery time?
A5: Standard delivery takes 7-15 days after deposit receipt. Exact timing depends on product type and order quantity.
Q6: How about your Warranty Term?
A6: 2-year warranty covering structure design, installation, system operation, and usage guidance. Our professional after-sales team provides comprehensive support with assistance from your dedicated sales engineer.
