P3 Flexible LED Display Screen Brightness 1000nits For Architectural Designs
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P3 Flexible LED Display Screen Brightness 1000nits For Architectural Designs | Pixel Pitch: | 3 Mm |
|---|---|---|---|
| Module Size: | 240*120 Mm | Cabinet Weight:: | 20 Kg |
| Brightness: | 1000 Nits | IP Rating: | IP20 |
| Cabinet Material: | Steel | Maintenance: | Front Service |
| Highlight: | flexible LED display screen for architectural designs,P3 LED display screen 1000nits brightness,flexible LED screen with high brightness |
||
Product Description
P3 Flexible LED Display Screen Brightness 1000nits For Architectural Designs
The P3 Flexible LED Video Wall functions as an innovative display solution that delivers crisp high-definition visuals, paired with outstanding adaptability for diverse usage needs. Featuring a 3mm pixel pitch, it produces sharp, detailed images well-suited for close-up viewing and displaying high-resolution content.
Key Features

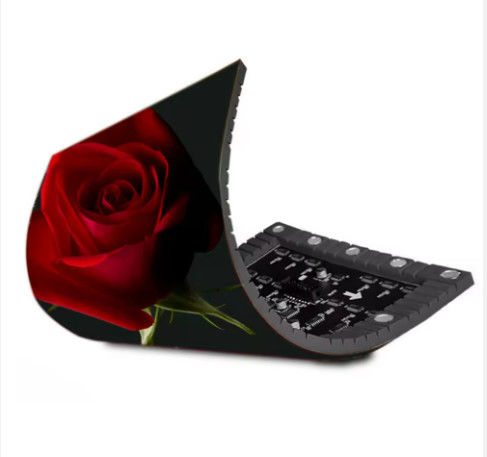

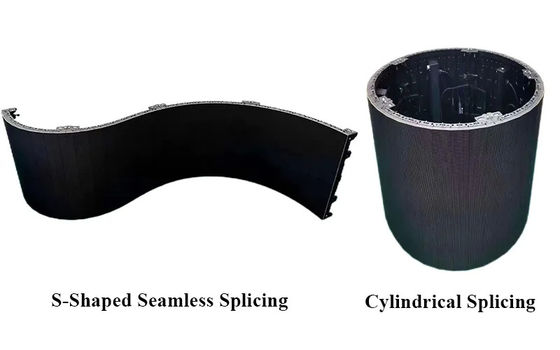

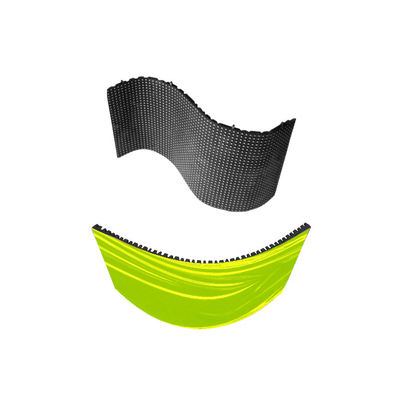

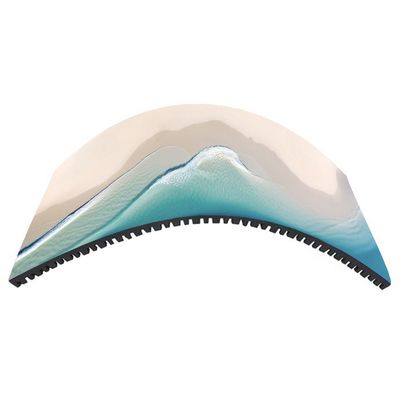

- Flexible Module: Soft PCB design allows for curved, wavy, or column-shaped displays
- Front Service: Magnet-fixed design enables convenient front-side maintenance
- High Quality: Premium LED lamps, driving ICs, and power supply ensure stable performance
- Efficient Heat Dissipation: Advanced thermal management maintains display stability
Technical Specifications
| Pixel Pitch: | 3 mm |
|---|---|
| LED Type: | SMD2020 |
| Cabinet Dimension: | 1200x600 mm |
| Module Size: | 240x120 mm |
| Cabinet Weight: | 20 kg |
| Cabinet Material: | Steel |
| Driving Type: | 1/20 |
| Brightness: | 1000 nits |
| Max/Avg Power: | 760/280 w/m² |
| Maintenance: | Front service |
| IP Rating: | IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°;V:140° |
| Operational Temp: | -20°C~+50°C |
| Operational Humidity: | 10%~90% RH |
Applications
- Creative architectural designs
- Large-scale outdoor advertising displays
- 360° immersive LED display installations
Comprehensive Support Services
Pre-Purchase: Detailed production instructions and expert setup guidance
During Purchase: Custom solutions, creative visual designs, and project examples
Post-Purchase: 2-year warranty, dedicated maintenance team, spare parts availability, free training, and software updates
Frequently Asked Questions
Q: Can you provide customized services?
A: We offer complete customization including size, shape, and special features to meet your specific requirements.
Q: Is it possible to print our logo on the LED screen?
A: Yes, we offer logo customization. Simply share your logo design, and our team will confirm the details with you before proceeding with production.
Q: Can I order a sample for testing?
A: Yes, we welcome sample orders for quality testing. You can choose any item you're interested in.
Q: What warranty do you offer?
A: Yes, a two-year warranty for all products.
Q: What information do I need to provide when ordering?
A: Please provide display dimensions, primary use case, viewing distance, installation photos, and any special requirements for a detailed quotation.
