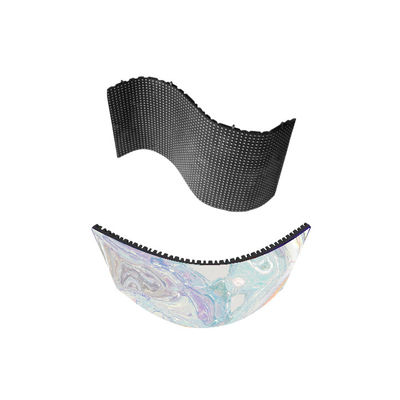

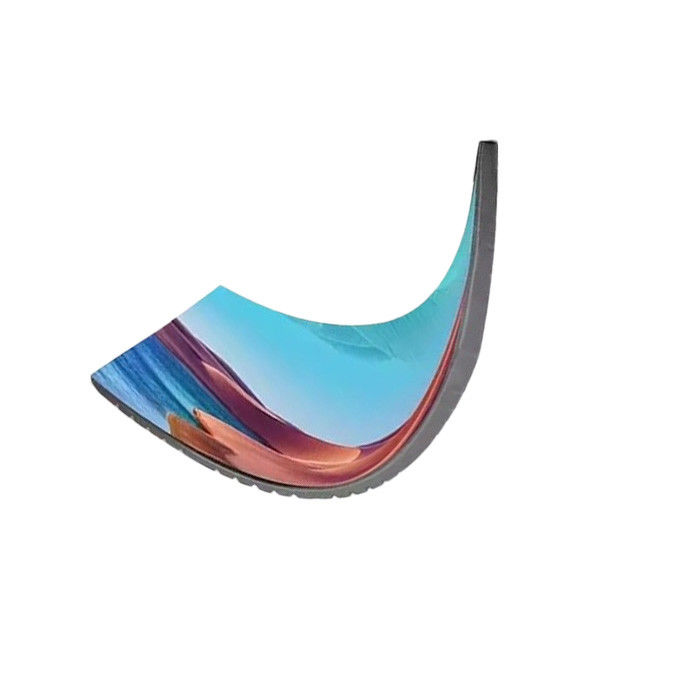

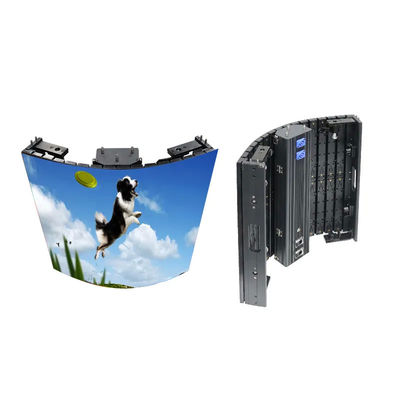

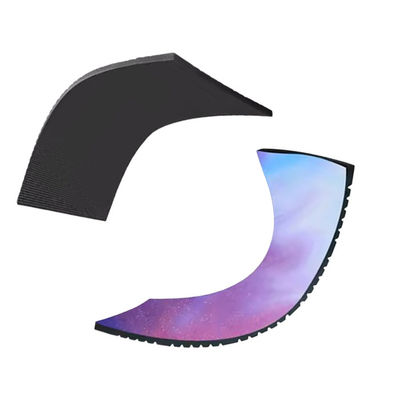

P1.875 Flexible LED Display Screen SMD1515 Curved Module For Creative Designs
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.875 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.875 Flexible LED Display Screen SMD1515 Curved Module For Creative Designs | Pixel Pitch: | 1.875 Mm |
|---|---|---|---|
| Module Size: | 240*120 Mm | Curved Angle: | H:140°; V:140° |
| Cabinet Material: | Steel | Cabinet Weight:: | 17 Kg; 13 Kg |
| Brightness: | 600 Nits | Maintenance: | Front Service |
| Highlight: | P1.875 flexible LED screen,SMD1515 curved LED module,creative design LED display |
||
Product Description
P1.875 Flexible LED Display Screen SMD1515 Curved Module For Creative Designs
The P1.875 Flexible LED Video Wall is an innovative display solution that delivers crisp high-definition visuals with exceptional adaptability for diverse applications. Featuring a 1.875mm pixel pitch, it produces sharp, detailed images ideal for close-range viewing and high-resolution content display.
Key Features
- Flexible Module: Soft PCB design allows for curved, wavy, or column-shaped displays
- Front Service: Magnet-fixed design enables convenient front-side maintenance
- High Quality: Premium LED lamps, driving ICs, and power supply ensure stable performance
- Efficient Heat Dissipation: Advanced thermal management maintains display stability
Technical Specifications
| Pixel Pitch | 1.875 mm |
| LED Type | SMD1515 |
| Cabinet Dimension | 960x600mm; 720x600mm |
| Module Size | 240x120 mm |
| Cabinet Weight | 17 kg; 13 kg |
| Cabinet Material | Steel |
| Driving Type | 1/32 |
| Brightness | 600 nits |
| Max/Avg Power | 760/280 w/m² |
| Maintenance | Front service |
| IP Rating | IP20 |
| Refresh Rate | >3840 Hz |
| Installation Type | Mounting |
| Gray Scale | 14 bit |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | -20°C~+50°C |
| Operational Humidity | 10%~90% RH |
Applications
- Creative architectural designs
- Large-scale outdoor advertising displays
- 360° immersive LED display installations
Comprehensive Support Services
Pre-Purchase: Detailed production instructions and expert setup guidance
During Purchase: Custom solutions, creative visual designs, and project examples
Post-Purchase: 2-year warranty, dedicated maintenance team, spare parts availability, free training, and software updates
Frequently Asked Questions
Q: Can you provide customized services?
A: We offer complete customization including size, shape, and special features to meet your specific requirements.
Q: Is it possible to print our logo on the LED screen?
A: Yes, we provide logo customization. Please share your design for our team to confirm production details.
Q: Can I order a sample for testing?
A: Absolutely. We welcome sample orders for quality evaluation of any product.
Q: What warranty do you offer?
A: All products come with a comprehensive two-year warranty.
Q: What information do I need to provide when ordering?
A: Please provide display dimensions, primary use case, viewing distance, installation photos, and any special requirements for a detailed quotation.
