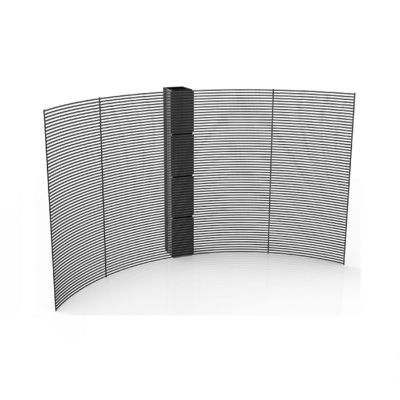

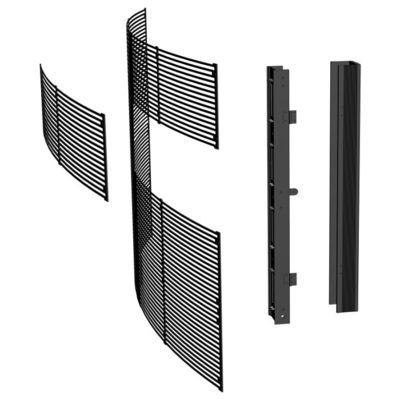

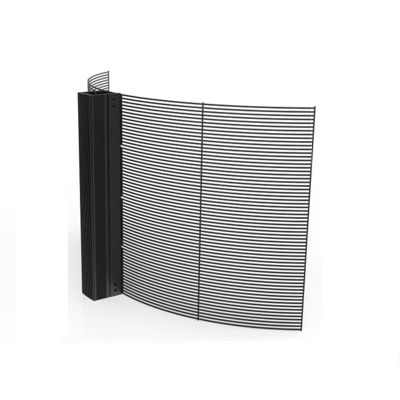

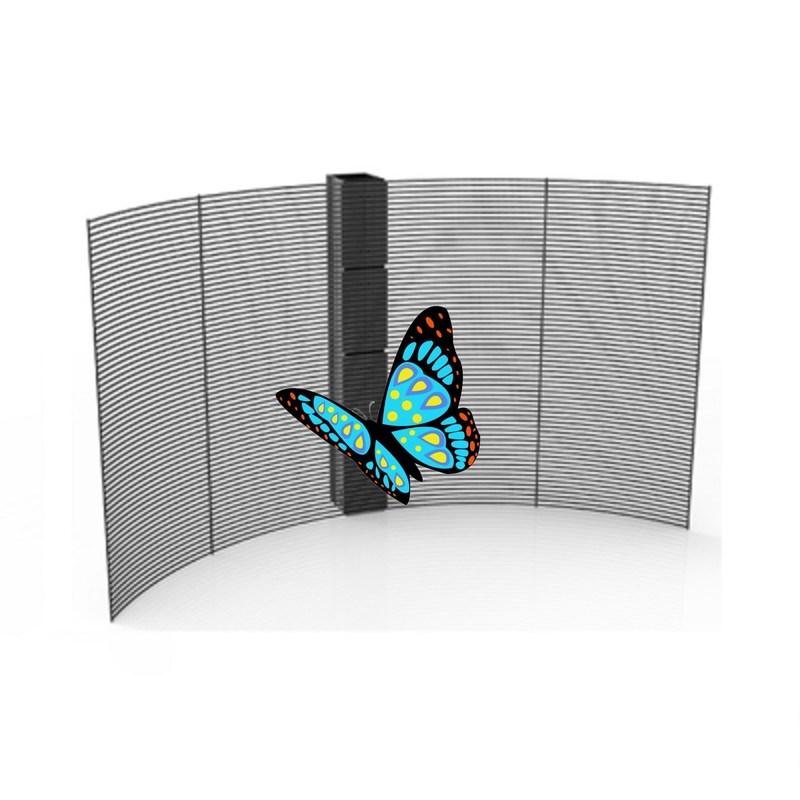

P15.6 Full Color Window Screen Driving Type Static For Glass Curtain Walls
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | TF15.6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, carton box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | P15.6 Full Color Window Screen Driving Type Static For Glass Curtain Walls | Pixel Pitch: | 15.625*15.625 Mm |
|---|---|---|---|
| Module Size: | 500×125mm | Cabinet Size: | 1000×500×84mm |
| LED Type: | SMD2121; SMD1921 | Brightness:: | 800-5500 Nits |
| IP Rating: | F: IP20, R: IP21 | Transparency Rate: | 85% |
| Highlight: | P15.6 full color LED display,static window screen LED display,driving type transparent LED screen |
||
Product Description
P15.6 Full Color Window Screen Driving Type Static For Glass Curtain Walls
The P15.6 Full Color Window Screen combines LED innovation with transparent glass to create a refined visual display solution. This versatile product supports curved formations, borderless mounting, and fully customized designs, demonstrating technical expertise to meet exact client specifications.
Key Features
- Brightness adjustable from 800-5500nits
- Quick installation and maintenance
- Fast lock mechanism
- Frontal protection
Technical Specifications
| Product Model | TF15.6 |
|---|---|
| Pixel Pitch | 15.625*15.625 mm |
| LED Type | SMD2121; SMD1921 |
| Cabinet Dimension | 1000x500x84 mm |
| Module Size | 500x125 mm |
| Cabinet Weight | 3.5 kg |
| Cabinet Material | Aluminum |
| Driving Type | Static |
| Brightness | 800-5500 nits |
| Max/Avg Power | 400/140; 800/280 W/m² |
| Transparency Rate | 85% |
| Environment | Indoor Use |
| IP Rating | F: IP20, R: IP21 |
| Refresh Rate | >1920 Hz |
| Installation Type | Mounting/Hanging |
| Gray scale | 14 bit |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | -20℃~+60℃ |
| Operational Humidity | 10%~90% RH |
Applications
Supermarket, airport advertising display, self-service store, metro station, museum, convenience store, stadium exhibition, chain brand store, high-end conference room, luxury brand store, hotel, bar, theatre, cinema, T stage, showroom, tourist attractions.
Visual World recommends that our customers purchase enough LED display modules for spare replacement. If the LED display modules come from different purchases, they may come from different batches, which could cause color differences.
Frequently Asked Questions
Q1. Can I have a sample order for LED display?
A1: Yes, we gladly accept sample orders for quality assessment and market evaluation.
Q2. Do you have any MOQ limit for LED display order?
A2: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q3. To order a display, what kind of information do I have to offer you?
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4. How can we guarantee quality?
A4: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q5. Is it OK to print my logo on the products?
A5: Yes, we offer logo customization. Please share your logo design and our team will confirm the details before production.
Q6. Do you offer guarantee for the products?
A6: Yes, we offer 1 year warranty for our products.
Q7. How to deal with the faulty?
A7:
1. Our products are produced with strict quality control and the defective rate will be less than 0.2%.
2. During the guarantee period, we will send new modules with new order for small quantity.
3. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
1. Our products are produced with strict quality control and the defective rate will be less than 0.2%.
2. During the guarantee period, we will send new modules with new order for small quantity.
3. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
