P1.56 COB Small Pixel Pitch LED Display Front IP54 Rear IP30 For Home Video Display

P1.56 COB Small Pixel Pitch LED Display Front IP54 Rear IP30 For Home Video Display
Brand Name
Visual World
Product Model
P1.56
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

P1.56 COB LED display

,

small pixel pitch LED screen

,

IP54 waterproof LED display
Product Name: P1.56 COB Small Pixel Pitch LED Display Front IP54 Rear IP30 For Home Video Display
Pixel Pitch: 1.56mm
Refresh Rate: >3840Hz Or >7680Hz
Cabinet Size: 600×337.5×29.5mm
Maintenance: Front Service
IP Rating: Front: IP54 Rear: IP30
Cabinet Weight: 4kg
Installation Type: Mounting/Hanging/Stacking
Product Description
Detailed Specifications And Features
P1.56 COB Small Pixel Pitch LED Display
The P1.56 Flip-COB Small Pixel Pitch LED Display utilizes sophisticated full flip-chip COB architecture to create an exceptionally slender and lightweight form factor. Its standardized 16:9 aspect ratio guarantees perfect synchronization with various media formats, complemented by convenient front-service access for maintenance operations. The enhanced cooling mechanism ensures extended operational lifespan, while integrated dual-signal and power backup systems maintain continuous performance—establishing this display as the ultimate choice for demanding visual environments.

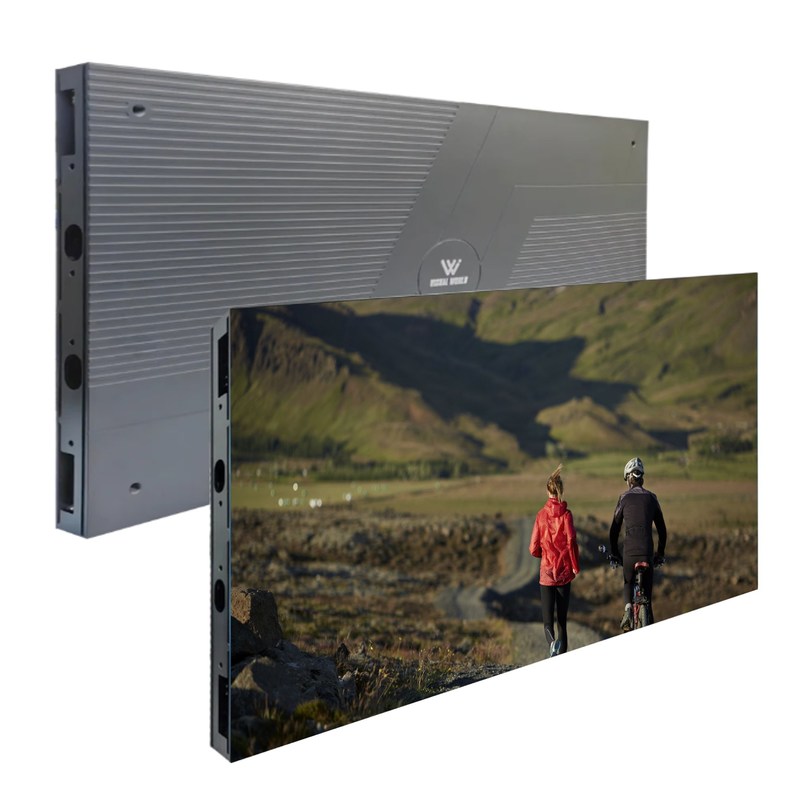

P1.56 Flip-COB LED Display product showcasing slim design and high-resolution display
Key Features
  • The full flip-chip COB process integrates advanced protective technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection
  • The module incorporates 3D ink printing technology, enhancing contrast by 20% and reducing brightness requirements for optimal display performance
  • A built-in LCD status display panel provides real-time insights into the cabinet's operational status, ensuring efficient monitoring and maintenance
  • The PCB design features an HDI multi-layer circuit structure, guaranteeing uniform color representation and stable temperature management
  • This series leverages Sunrise's energy-efficient common cathode chips, delivering exceptional grayscale performance with levels of up to 16 bits
Technical Specifications
Model P1.56
Pixel Pitch 1.56mm
LED Type Flip-COB (common cathode)
Cabinet Dimension 600*337.5*29.5mm
Cabinet Resolution 384*216
Module Size 150x168.75mm
Cabinet Weight 4kg
Cabinet Material Die-casting Aluminum
Driving Type 1/48
Maintenance Front service
Brightness 600/1000 nits
Max Power 330W/m²
Avg Power 100W/m²
IP Rating Front: IP54 Rear: IP30
Refresh Rate >3840Hz or >7680Hz
Installation Type Mounting/Hanging/Stacking
Gray Scale 16bit
Viewing Angle H:170° V:170°
Operational Temperature -20℃~+50℃
Operational Humidity 10%-90%RH
Applications
  • Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information, ensuring visibility in bright settings
  • Football Stadiums: Delivers high-res replays, scores, and ads with reliable performance and efficient heat dissipation for long events
  • Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation and maintenance
  • Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast for live events, promotions, and announcements
LED Display application example showing digital signage in commercial setting LED Display installation example demonstrating mounting and setup
Service and Support
  • Pre-Sale Services: 24-hour response to inquiries, market research and customized solutions, datasheets, samples, custom packing, and factory visits
  • In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
  • After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training, and comprehensive documentation
Frequently Asked Questions
Q1: Do you offer sample orders?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen.
Q2: Is there a warranty included?
A2: Yes, 1 year or 2 years after service.
Q3: Can I customize the product?
A3: Yes, we can design different categories of products according to your requirements.
Q4: What is your minimum order quantity (MOQ)?
A4: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q5: To order a display, what kind of information do I have to offer you?
A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
