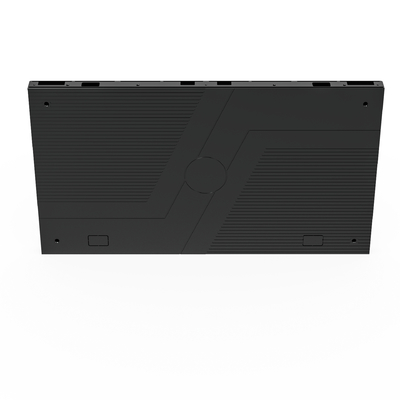

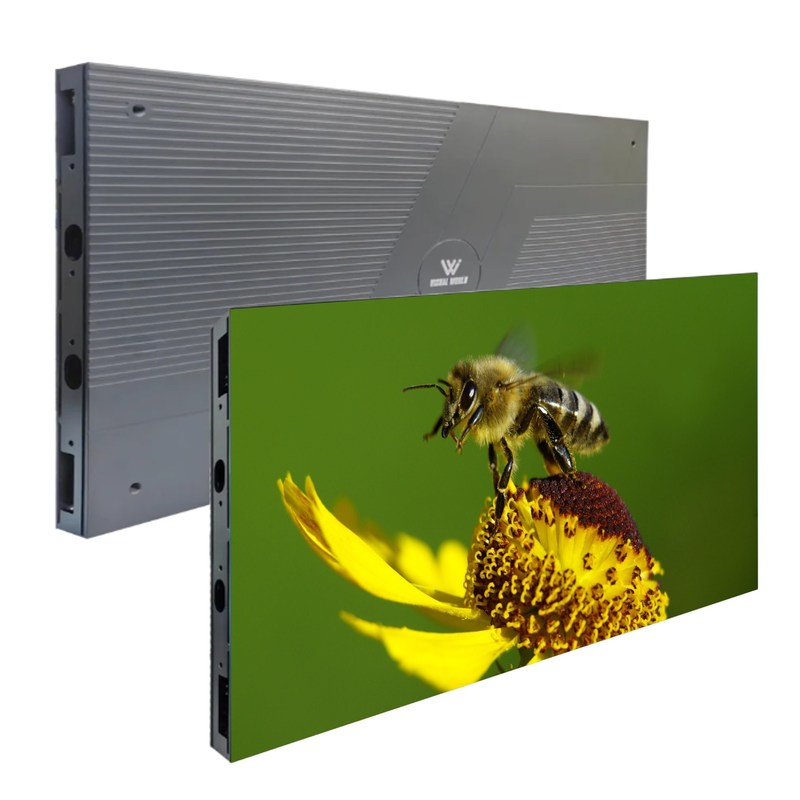

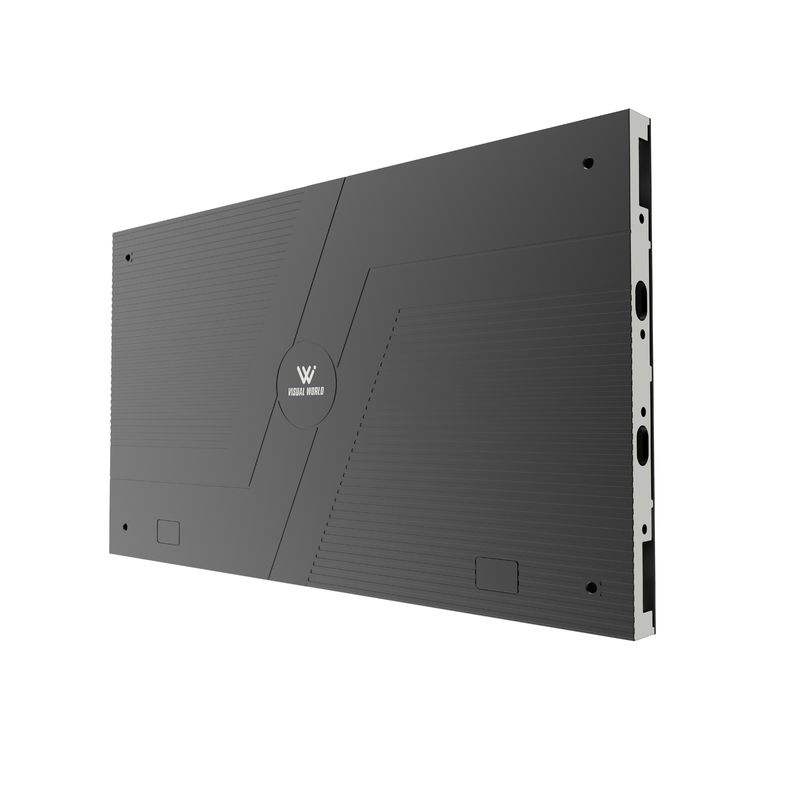

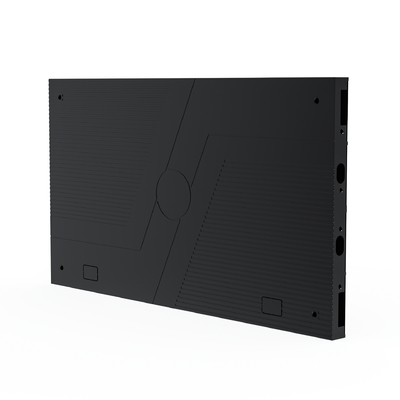

P1.25 COB Small Pixel Pitch LED Display Front Access 600/1500nits For Activists
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 COB Small Pixel Pitch LED Display Front Access 600/1500nits For Activists | Pixel Pitch: | 1.25mm |
|---|---|---|---|
| Refresh Rate: | >3840Hz Or >7680Hz | Cabinet Size: | 600×337.5×29.5mm |
| Maintenance: | Front Service | IP Rating: | Front: IP54 Rear: IP30 |
| Cabinet Weight: | 4kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P1.25 COB LED display front access,small pixel pitch LED display 600nits,fine pitch LED screen 1500nits |
||
Product Description
P1.25 COB Small Pixel Pitch LED Display Front Access 600/1500nits For Activists
The P1.25 COB Small Pixel Pitch LED Display employs next-generation flip-chip COB architecture to achieve a remarkably compact and featherlight profile. Its universal 16:9 aspect ratio provides native compatibility with all mainstream content formats, while tool-free front service access simplifies maintenance procedures. The advanced thermal regulation system guarantees extended operational lifespan, and built-in redundant signal/power circuits ensure fault-tolerant performance--positioning this display as the definitive solution for mission-critical visualization environments.
Key Features
- Full flip-chip COB process with advanced protective technologies including anti-collision, waterproofing, moisture resistance, and salt-spray protection
- 3D ink printing technology enhances contrast by 20% while reducing brightness requirements
- Built-in LCD status display panel for real-time operational monitoring
- HDI multi-layer PCB design ensures uniform color representation and stable temperature management
- Energy-efficient common cathode chips deliver exceptional 16-bit grayscale performance
Technical Specifications
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size (mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Driving Type | 1/36 | 1/36 or 1/54 | 1/27 or 1/60 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz or >7680Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
| Viewing Angle | H:170° V:170° | |||
| Operational Temp | -20℃~+50℃ | |||
| Operational Humidity | 10%-90%RH | |||
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices with vibrant, high-brightness displays for dynamic content
- Football Stadiums: Delivers high-resolution replays and scores with reliable performance and efficient heat dissipation
- Perimeter LED Posters: Perfect for sports fields and event venues with easy installation and maintenance
- Arena Displays: Designed for concert halls and convention centers with vivid visuals and high contrast
Service & Support
- Pre-Sale Services: 24-hour response, market research, customized solutions, datasheets, samples, and factory visits
- In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
- After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training
Frequently Asked Questions
Q1: Do you offer sample orders?
A1: Yes, we gladly accept sample orders for quality assessment and market evaluation.
Q2: Is there a warranty included?
A2: Yes, 1 year or 2 years after service.
Q3: Can I customize the product?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: What is your minimum order quantity (MOQ)?
A4: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q5: To order a display, what kind of information do I have to offer you?
A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
