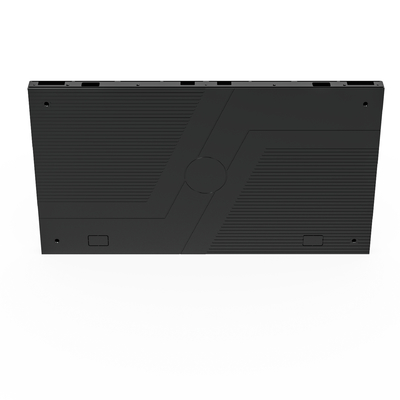

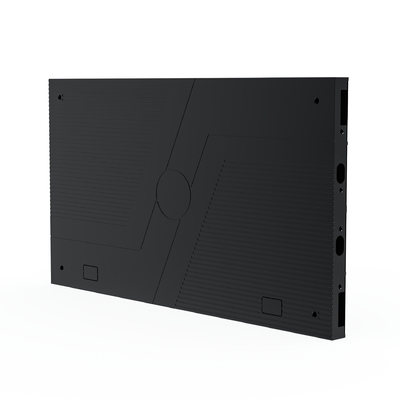

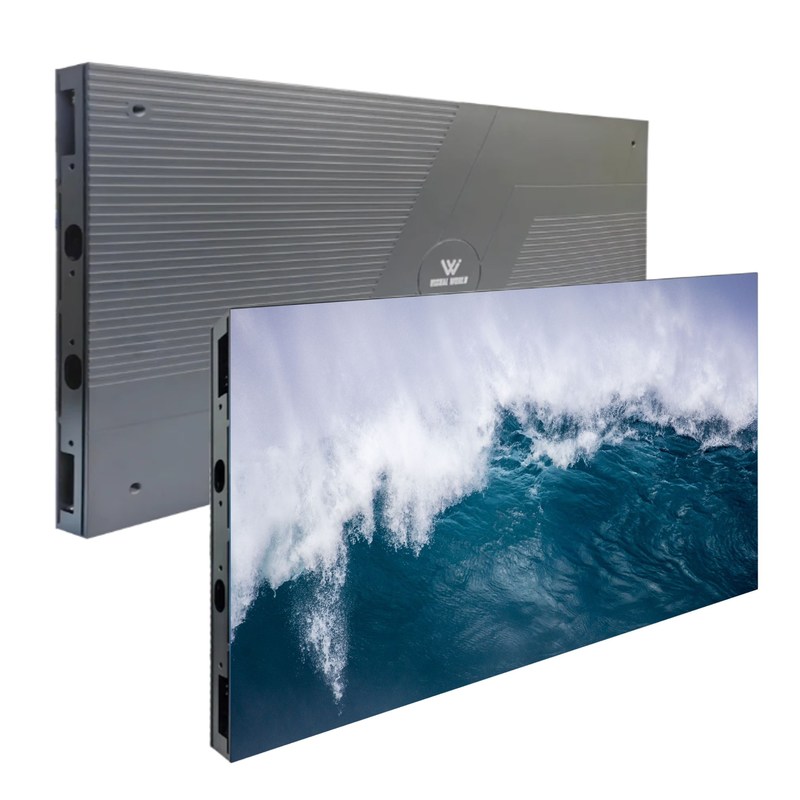

P0.9 Small Pixel Pitch LED Display COB Cabinet Weight 4kg For Home Video Display
P0.9 Small Pixel Pitch LED Display COB Cabinet Weight 4kg For Home Video Display
Brand Name
Visual World
Product Model
P0.9
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:
P0.9 COB LED display cabinet
,small pixel pitch LED display for home
,4kg lightweight LED video display
Product Name:
P0.9 Small Pixel Pitch LED Display COB Cabinet Weight 4kg For Home Video Display
Pixel Pitch:
P0.9
Cabinet Weight:
4kg
Cabinet Size:
600x337.5×29.5mm
Maintenance:
Front Service
IP Rating:
Front: IP54 Rear: IP30
Cabinet Material:
Die-casting Aluminum
Installation Type:
Mounting/Hanging/Stacking
Product Description
Detailed Specifications And Features
P0.9 Small Pixel Pitch LED Display COB Cabinet
The P0.9 COB Small Pixel Pitch LED Display utilizes sophisticated full flip-chip COB architecture to create an exceptionally slender and lightweight form factor weighing only 4kg. Its standardized 16:9 aspect ratio guarantees perfect synchronization with various media formats, complemented by convenient front-service access for maintenance operations. The enhanced cooling mechanism ensures extended operational lifespan, while integrated dual-signal and power backup systems maintain continuous performance—establishing this display as the ultimate choice for demanding visual environments.
Key Features
- Full flip-chip COB process integrates advanced protective technologies, including anti-collision, waterproofing, moisture resistance, and salt-spray protection
- Module incorporates 3D ink printing technology, enhancing contrast by 20% and reducing brightness requirements for optimal display performance
- Built-in LCD status display panel provides real-time insights into cabinet operational status for efficient monitoring and maintenance
- PCB design features HDI multi-layer circuit structure, guaranteeing uniform color representation and stable temperature management
- Utilizes Sunrise's energy-efficient common cathode chips, delivering exceptional grayscale performance with levels up to 16 bits
Technical Parameters
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size (mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Driving Type | 1/36 | 1/36 or 1/54 | 1/27 or 1/60 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz or >7680Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
| Viewing Angle | H:170° V:170° | |||
| Operational Temp | -20℃~+50℃ | |||
| Operational Humidity | 10%-90%RH | |||
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices, offering vibrant, high-brightness displays for dynamic ads and information, ensuring visibility in bright settings
- Football Stadiums: Delivers high-resolution replays, scores, and ads with reliable performance and efficient heat dissipation for long events
- Perimeter LED Posters: Perfect for sports fields and event venues, providing dynamic ads and info with easy installation and maintenance
- Arena Displays: Designed for concert halls, convention centers, and arenas, offering vivid visuals with high contrast for live events, promotions, and announcements
Service and Support
- Pre-Sale Services: 24-hour response to inquiries, market research and customized solutions, datasheets, samples, custom packing, and factory visits
- In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
- After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training, and comprehensive documentation
Frequently Asked Questions
Do you offer sample orders?
Yes, we welcome sample orders so you can assess the quality and test the market before committing to bulk purchases.
Is there a warranty included?
Definitely! We provide a 24-month warranty on all our products to guarantee your satisfaction and confidence in our offerings.
Can I customize the product?
Yes, we can design different categories of products according to your requirements.
What is your minimum order quantity (MOQ)?
Low MOQ, 1 square meter or a module checking is available.
To order a display, what kind of information do I have to offer you?
You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
