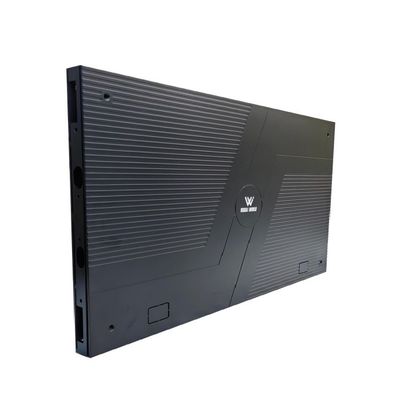

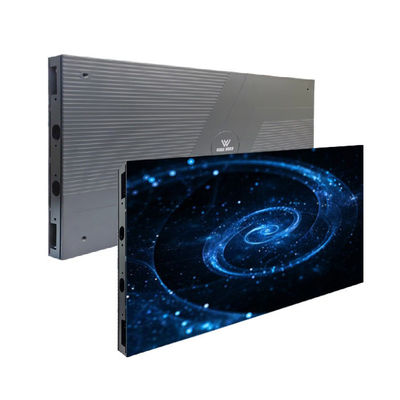

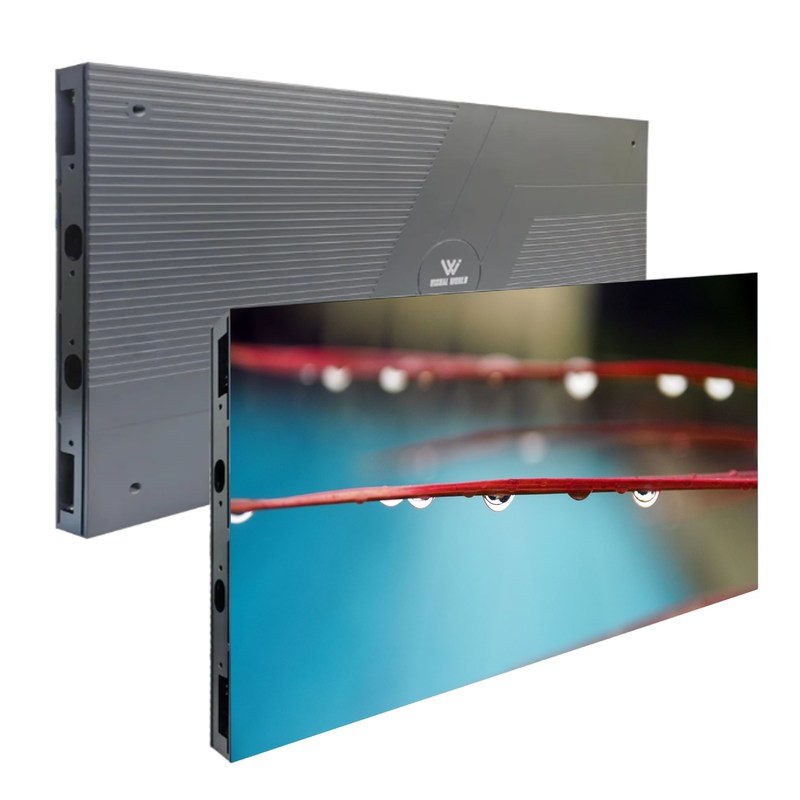

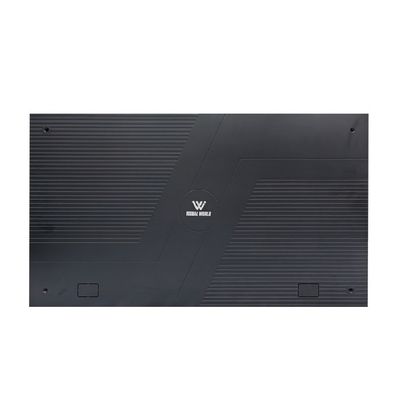

P1.25 Fine Pitch LED Display Flip-COB Front Service Only 29.5mm Thickness
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pitch LED Display Flip-COB Front Service Only 29.5mm Thickness | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aluminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P1.25 fine pitch LED display,Flip-COB front service LED,29.5mm thin LED display |
||
Product Description
P1.25 Fine Pitch LED Display Flip-COB Front Service Only 29.5mm Thickness
Product Description:
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
|
Model |
P0.7 |
P0.9 |
P1.25 |
P1.56 |
|
Pixel Pitch |
0.78mm |
0.9375mm |
1.25mm |
1.56mm |
|
LED Type |
Flip-COB (common cathode) |
|||
|
Cabinet Dimension (mm) |
600*337.5*29.5 |
|||
|
Cabinet Resolution |
768*432 |
640*360 |
480*270 |
384*216 |
|
Module Size(mm) |
150x168.75 |
|||
|
Cabinet Weight |
4kg |
|||
|
Cabinet Material |
Die-casting Aluminum |
|||
|
Scan Mode |
1/36 |
1/54 or 1/36 |
1/60 or 1/27 |
1/48 |
|
maintenance |
Front service |
|||
|
Brightness |
600/2000 nits |
600/2000 nits |
600/1500 nits |
600/1000 nits |
|
Max Power |
390W/m² |
420W/m² |
330W/m² |
330W/m² |
|
Avg Power |
136W/m² |
147W/m² |
100W/m² |
100W/m² |
|
Waterproof Level |
Front: IP54 Rear: IP30 |
|||
|
Refresh Rate |
>3840Hz |
|||
|
Installation Type |
Mounting/Hanging/Stacking |
|||
|
Gray Scale |
16bit |
|||
Applications:
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
FAQ:
Q1: Are you a manufacturer or a trading company?
A1: We are a professional OEM & ODM manufacturer with more than 10 years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained lS09001, 1S014001, CE, RoHS, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can benegotiated.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.
Q5.Can we make any size we want? And What's the best size of led screen?
A5:Yes, we can design any size according to your size requirement. Normally, advertising ,stage led screen.The best aspect ratio of LED display are W16:H9 or W4:H3.
Q6.What's the function of video processor?
A6:lt can tranfter the video source to make the screen performance more clear, and normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if want to play other kind video source, such as HDMl, SDIVGA signal port, that will need.Or the HD led screen, its resolution is high, need more than 2pcs sending cards also need video processor.
