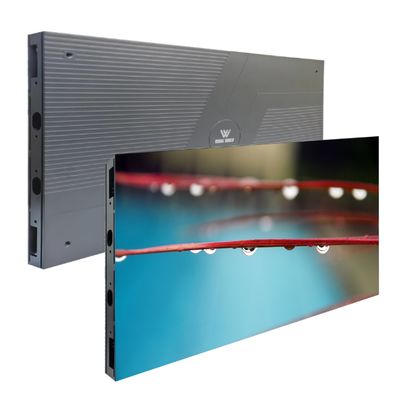

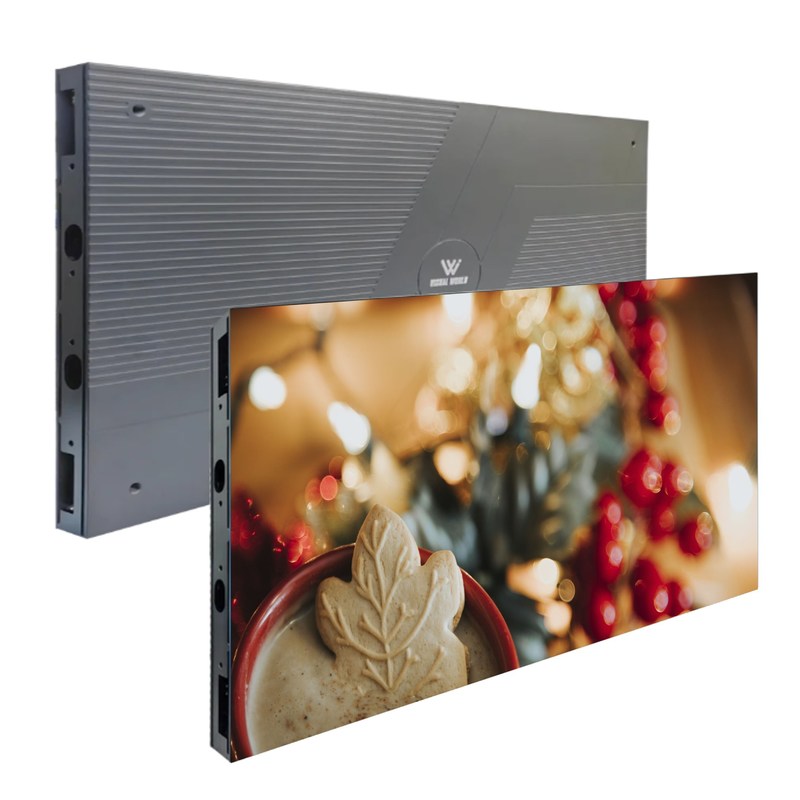

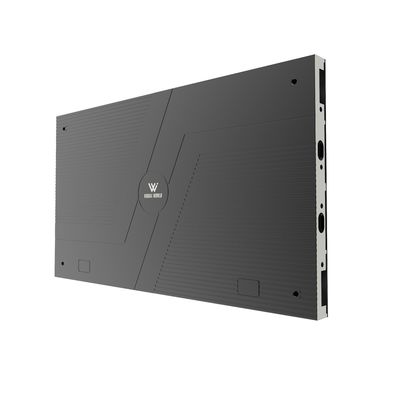

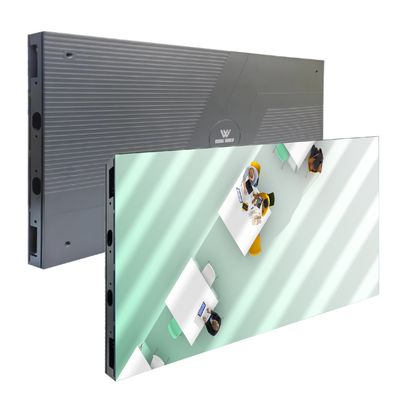

P0.7 COB Small Pixel Pitch LED Display Cabinet 600*337.5mm For Exhibition Hall
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.7 COB Small Pixel Pitch LED Display Cabinet 600*337.5mm For Exhibition Hall | Pixel Pitch: | 0.78mm |
|---|---|---|---|
| Refresh Rate: | >3840Hz Or >7680Hz | Cabinet Size: | 600×337.5×29.5mm |
| Maintenance: | Front Service | IP Rating: | Front: IP54 Rear: IP30 |
| Cabinet Weight: | 4kg | Installation Type: | Mounting/Hanging/Stacking |
| Highlight: | P0.7 COB LED display cabinet,small pixel pitch LED display for exhibition,600x337.5mm fine pixel LED screen |
||
Product Description
P0.7 COB Small Pixel Pitch LED Display Cabinet 600*337.5mm For Exhibition Hall
Product Description
The P0.7 COB Small Pixel Pitch LED Display utilizes advanced full flip-chip COB technology to deliver a slim, lightweight, and ultra-thin structure. Its 16:9 aspect ratio ensures effortless compatibility with varied content formats, while front-access maintenance streamlines servicing. An optimized thermal management system extends product longevity, and integrated signal and power redundancy ensures continuous operation--establishing it as the ideal choice for high-performance display applications.
Key Features
- Full flip-chip COB process with advanced protective technologies including anti-collision, waterproofing, moisture resistance, and salt-spray protection
- 3D ink printing technology enhances contrast by 20% and reduces brightness requirements
- Built-in LCD status display panel for real-time operational monitoring
- HDI multi-layer PCB design ensures uniform color representation and stable temperature management
- Energy-efficient common cathode chips deliver exceptional 16-bit grayscale performance
Technical Specifications
| Model | P0.7 |
|---|---|
| Pixel Pitch | 0.78mm |
| LED Type | Flip-COB (common cathode) |
| Cabinet Dimension | 600*337.5*29.5mm |
| Cabinet Resolution | 768*432 |
| Module Size | 150x168.75mm |
| Cabinet Weight | 4kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type | 1/36 |
| Maintenance | Front service |
| Brightness | 600/2000 nits |
| Max Power | 390W/m² |
| Avg Power | 136W/m² |
| IP Rating | Front: IP54 Rear: IP30 |
| Refresh Rate | >3840Hz or >7680Hz |
| Installation Type | Mounting/Hanging/Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170° V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications
- Digital Signage Systems: Ideal for malls, airports, stations, and offices with vibrant, high-brightness displays for dynamic content
- Football Stadiums: Delivers high-resolution replays, scores, and ads with reliable performance and efficient heat dissipation
- Perimeter LED Posters: Perfect for sports fields and event venues with dynamic content and easy installation
- Arena Displays: Designed for concert halls and convention centers with vivid visuals and high contrast for live events
Service and Support
- Pre-Sale Services: 24-hour response, market research, customized solutions, datasheets, samples, and factory visits
- In-Sale Process: Production monitoring, photos/videos upon request, free spare parts included
- After-Sales Support: 24-hour complaint response, maintenance guidance within 48 hours, 24-month warranty, free technician training
Frequently Asked Questions
Q1: Do you offer sample orders?
A1: Yes, we welcome sample orders so you can assess the quality and test the market before committing to bulk purchases.
Q2: Is there a warranty included?
A2: Yes, a two-year warranty for all products.
Q3: Can I customize the product?
A3: Yes, we can design different categories of products according to your requirements.
Q4: What is your minimum order quantity (MOQ)?
A4: Low MOQ, 1 square meter or a module checking is available.
Q5: To order a display, what kind of information do I have to offer you?
A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, and any special requirements.
