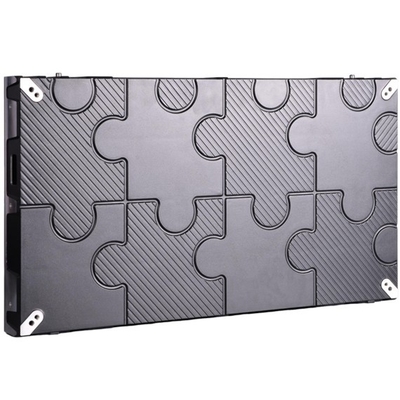

P1.25 Small Pixel Pitch LED Display Die-casting Aluminum For Virtual Display
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Small Pixel Pitch LED Display Die-casting Aluminum For Virtual Display | Pixel Pitch: | 1.25mm |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | Brightness: | 600nits |
| Cabinet Weight:: | 5.5kg | IP Rating: | F: IP30, R: IP45 |
| Highlight: | P1.25 small pixel pitch LED display,die-casting aluminum LED screen,virtual display LED panel |
||
Product Description
P1.25 Small Pixel Pitch LED Display Die-casting Aluminum For Virtual Display
The P1.25 Small Pixel Pitch LED Display excels in delivering exceptional visual performance with ultra-fine detail and vibrant color reproduction. Its optimized 16:9 aspect ratio provides a wide viewing angle and comfortable immersion for diverse audiences. The integrated control system ensures user-friendly operation, while the full front-access maintenance design enables effortless servicing--maintaining peak display performance with minimal downtime.
Key Features
- Full flip-chip COB process with protection technologies including anti-collision, waterproofing, moisture resistance, and salt spray resistance
- 3D ink printing technology enhances contrast by 20% and lowers display brightness requirements
- Includes LCD status display panel for real-time monitoring of cabinet operations
- HDI multi-layer circuit board design ensures excellent color uniformity and even temperature distribution
- Energy-efficient common cathode chip delivers higher performance with grayscale levels up to 16-bit
Technical Specifications
| Product Model | FP0.9 | FP1.25 | FP1.56 | FP1.87 |
|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Type | 4 in 1 LED | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension | 600x337.5x58 mm | 600x337.5x58mm | 600x337.5x58mm | 600x337.5x58mm |
| Module Size | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm |
| Cabinet Weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness | 400 nits | 600 nits | 600 nits | 600 nits |
| Refresh Rate | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Viewing Angle | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° |
Applications
- Digital Signage systems
- Chain stores
- Billboards
- Perimeter LED posters
- Arena displays
Support and Service
- Pre-sales: Detailed production instructions and professional installation guidance
- Sales: Customized solutions, visual designs, and project showcases
- After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, and continuous software improvement
Frequently Asked Questions
Q1: Can you accept sample orders?
A1: Yes, we welcome sample orders for quality testing. You can choose any item you're interested in.
Q2: What LED screen sizes are available?
A2: Screen sizes can be customized based on your requirements.
Q3: What is the warranty period?
A3: Yes, a two-year warranty for all products.
Q4: How is product quality guaranteed?
A4: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q5: Do you have any Minimum Order Quantity (MOQ) limit for LED display order?
A5: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q6: What information is needed to order a display?
A6: Please provide the display dimensions, primary use, viewing distance, scene photos, and any special requirements for a detailed quotation.
