P0.9375 Small Pixel Pitch LED Display Indoor Mounting/Hanging For Billboards
P0.9375 Small Pixel Pitch LED Display Indoor Mounting/Hanging For Billboards
Brand Name
Visual World
Product Model
FP0.9375
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:
P0.9375 fine pixel pitch LED display
,small pixel pitch LED billboard display
,indoor hanging LED display panel
Product Name:
P0.9375 Small Pixel Pitch LED Display Indoor Mounting/Hanging For Billboards
Pixel Pitch:
0.9375mm
Cabinet Material:
Die-casting Aliuminum
Cabinet Size:
600×337.5×58 Mm
Maintenance:
Front Service
Brightness:
400nits
Cabinet Weight::
5.5kg
IP Rating:
F: IP30, R: IP45
Product Description
Detailed Specifications And Features

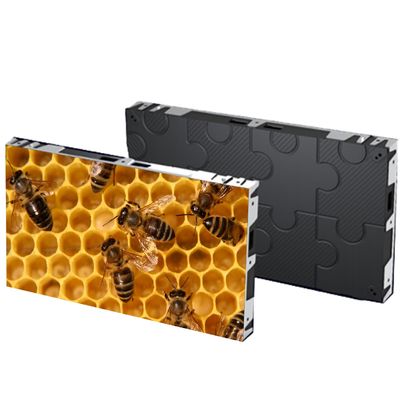

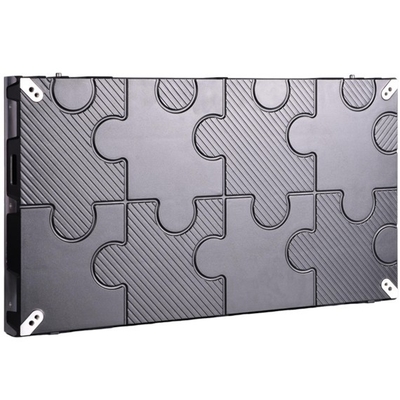

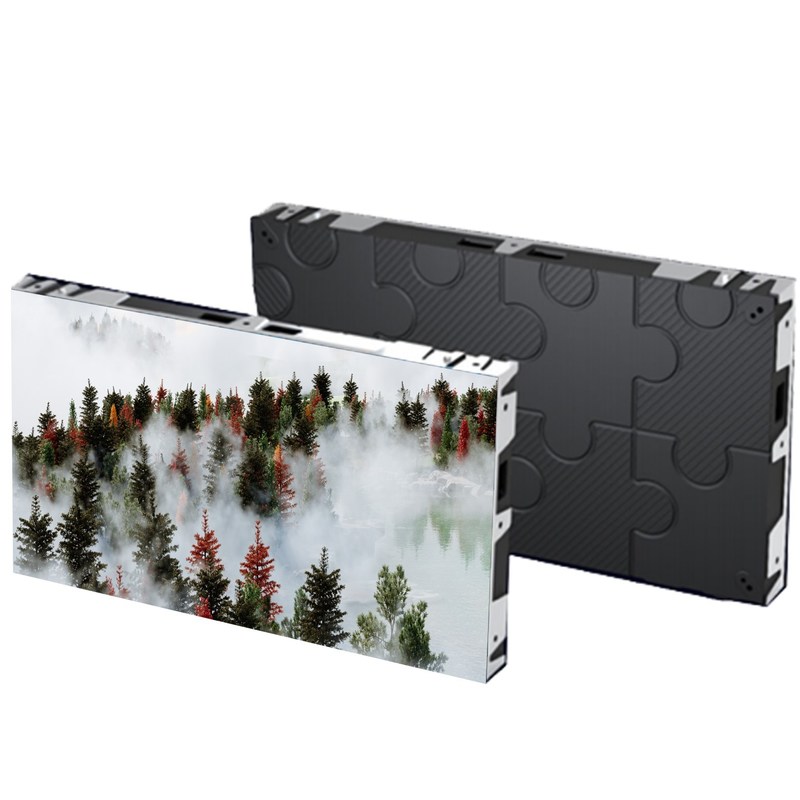

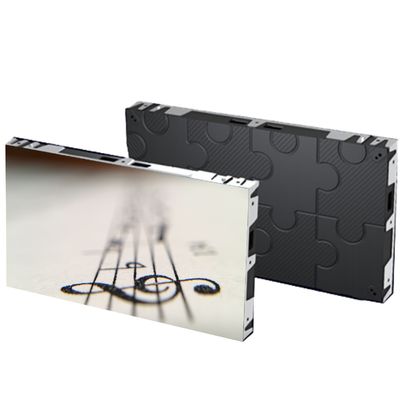

P0.9375 Small Pixel Pitch LED Display Indoor Mounting/Hanging For Billboards
The P0.9375 Small Pixel Pitch LED Display excels in delivering exceptional visual performance with ultra-fine detail and vibrant color reproduction. Its optimized 16:9 aspect ratio provides a wide viewing angle and comfortable immersion for diverse audiences. The integrated control system ensures user-friendly operation, while the full front-access maintenance design enables effortless servicing--maintaining peak display performance with minimal downtime.
Key Features
- Full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance
- 3D ink printing technology enhances contrast by 20% and lowers display brightness requirements
- HDI multi-layer circuit board design ensures good color uniformity and even temperature distribution
- Energy-efficient common cathode chip delivers higher performance with grayscale levels up to 16-bit
- LCD status display panel for intuitive real-time monitoring of cabinet operations
Technical Specifications
| Product Model | FP0.9 | FP1.25 | FP1.56 | FP1.87 |
|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Type | 4 in 1 LED | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension | 600x337.5x58 mm | 600x337.5x58mm | 600x337.5x58mm | 600x337.5x58mm |
| Module Size | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm |
| Cabinet Weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness | 400 nits | 600 nits | 600 nits | 600 nits |
| Max/Avg Power | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² |
| IP Rating | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 |
| Refresh Rate | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Gray Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
Typical Applications
- Digital Signage system
- Chain store displays
- Billboards
- Perimeter LED posters
- Arena displays
Support and Service
Pre-sales: Detailed production instructions and professional installation guidance.
Sales: Customized solutions, visual designs, and project showcases.
After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
Sales: Customized solutions, visual designs, and project showcases.
After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
Frequently Asked Questions
Q1: Can you accept some sample orders?
A1: Yes, we welcome sample orders so you can assess the quality and test the market before committing to bulk purchases.
Q2: What LED screen size you can do?
A2: Screen size can be customized based on your demand.
Q3: Does there have any warranty?
A3: A two-year warranty for all products.
Q4: How to guarantee product quality?
A4: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q5: To order a display, what kind of information do I have to offer you?
A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
