P2.5 Small Pixel Pitch Outdoor LED Display Aluminum Alloy IP65 For Studio

P2.5 Small Pixel Pitch Outdoor LED Display Aluminum Alloy IP65 For Studio
Brand Name
Visual World
Product Model
P2.5
Certificate
CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

P2.5 outdoor LED display

,

small pixel pitch LED screen

,

IP65 aluminum alloy LED display

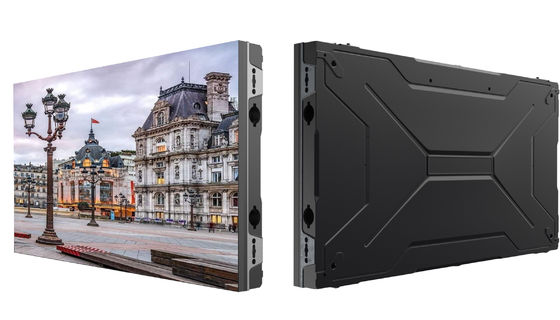

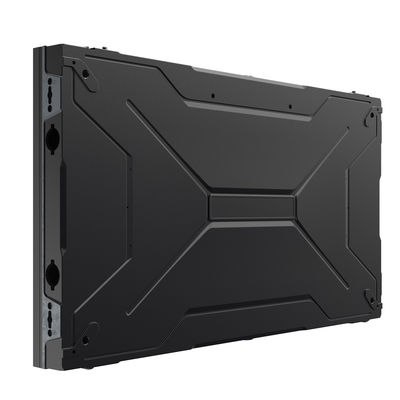

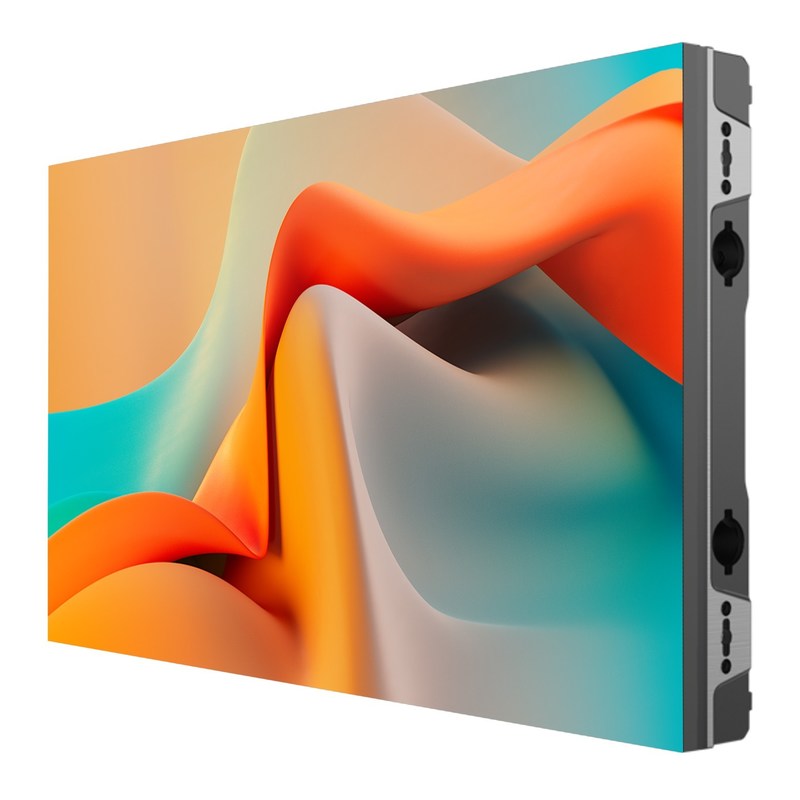

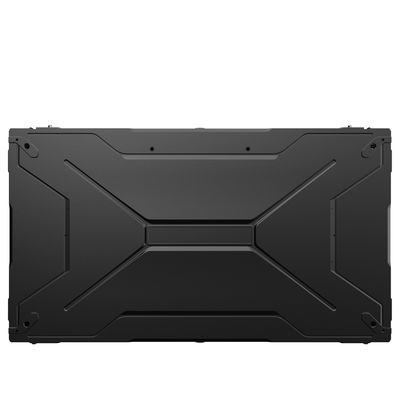

Product Name: P2.5 Small Pixel Pitch Outdoor LED Display Aluminum Alloy IP65 For Studio
Pixel Pitch: 2.5mm
Weight(Kg/Pc): 6
Brightness: 4500nits
Module Size: 300x337.5mm
Cabinet Size: 600x337.5×50mm
Protection Grade: IP65
Cabinet Material: Aluminum Alloy
Product Description
Detailed Specifications And Features
P2.5 Small Pixel Pitch Outdoor LED Display Aluminum Alloy IP65 For Studio
Our advanced Small Pixel Pitch Display delivers exceptional performance, energy efficiency, and seamless ultra-HD visuals. Engineered for high-impact applications, it excels in premium digital signage, control room environments, and immersive VR/XR simulations.
P2.5 Small Pixel Pitch Outdoor LED Display
Key Features
  • Independent module design for easy installation and removal
  • No maintenance access required for outdoor installation
  • Die-cast aluminum cabinet ensures structural stability and excellent heat dissipation
  • Front service installation reduces labor requirements and overall costs
  • High refresh rate (3840Hz+) eliminates screen tearing and shadow dragging
  • Precise synchronization for high-speed shutter shooting and live events
Technical Specifications
Pixel Pitch(mm) 2.5
Module Size(mm) 300 x 337.5
Module Resolution(dot) 120 x 135
Module Assembly 2 x 1
Panel Size(w x h x d)(mm) 600 x 337.5 x 50
Panel Resolution(dot) 240 x 135
LED Type SMD1415
Brightness(cd/m2 ) 4500
Horizontal Viewing Angle 140°
Vertical Viewing Angle 140°
Gray Level 16384
Refresh Rate(Hz) 3840Hz
Max. AC power consumption 700W/m2
Avg. AC power consumption 350W/㎡
Voltage AC100~240 50/60HZ
Operate Temp(℃) -30℃~+50℃
Storage Temp(℃) -40～80 ℃
Operating Humidity 10~95% RH
Protection grade IP65
Operating Environment Outdoor
Cabinet Material Aluminum alloy
LED Lifetime(H) 100,000
Weight(kg/pc) 6
Applications
  • Digital signage systems
  • Chain stores
  • Street furniture
  • Billboards
  • Football stadiums
  • Perimeter LED posters
  • Arena displays
LED Display Application Example LED Display Installation Example
Packing & Shipping
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping Port: Shenzhen, China
Shipping Methods: Air; Express; Ocean; Land Transportation
Delivery Time: 10-15 working days after payment confirmation
Frequently Asked Questions
Q: Can you provide customized services?
A: Yes, we can design different categories of products according to your requirements.
Q: Is it possible to print our logo on the LED screen?
A: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q: Can I order a sample of the LED display?
A: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen.
Q: How much is the freight?
A: Shipping costs depend on screen size and project specifications. Please provide details for an accurate quote.
Q: Do you offer a product warranty?
A: Yes, we provide a 2-year warranty on all our products.
Q: What information do I need to provide to order a display?
A: Provide width/height of the display, main use, viewing distance, scene photos, and special requirements for a detailed quotation.
