P1.25 Flexible LED Display Screen 240*120mm Magnetic Front Service Multiple Shapes
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.25 Flexible LED Display Screen 240*120mm Magnetic Front Service Multiple Shapes | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
| Highlight: | P1.25 flexible LED display screen,magnetic front service LED screen,240x120mm flexible LED panel |
||
Product Description
P1.25 Flexible LED Display Screen 240*120mm Magnetic Front Service Multiple Shapes
The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.
Features

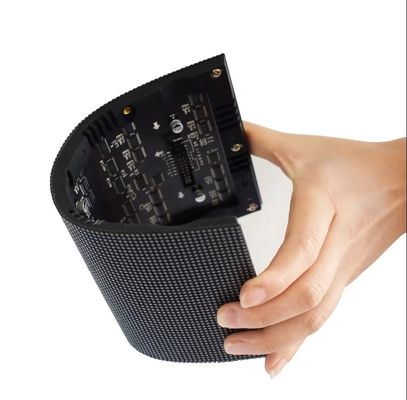

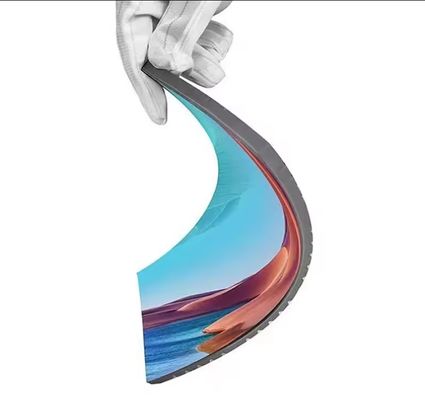

- Flexible Design - Soft PCB allows bending for versatile installations.

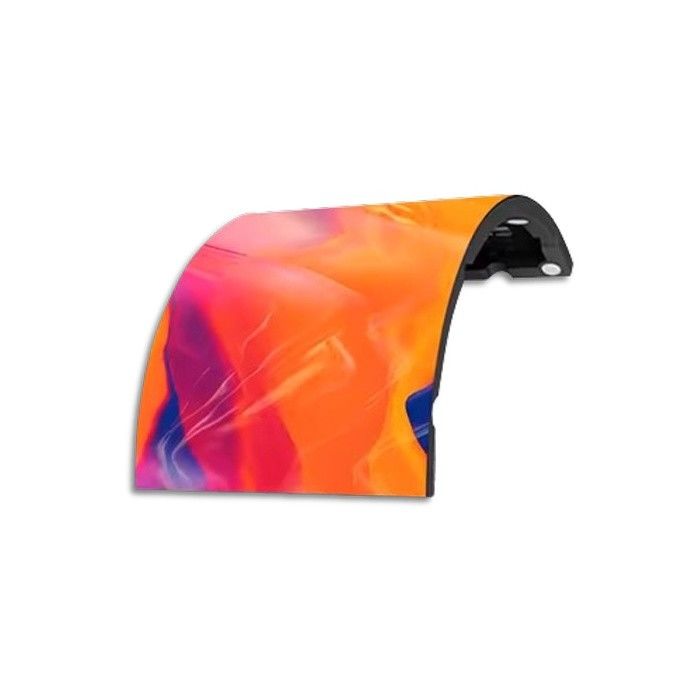

- Curved Display - Supports angles from 110° to 180°, both inner and outer curves.

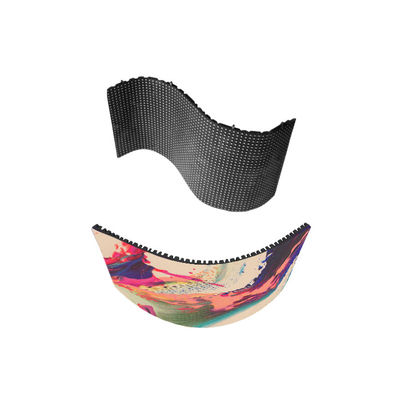

- Multiple Shapes - Adapts to round, convex, concave, S-shaped, and other irregular designs.
- Magnetic Front Service - Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.
Technical Parameters
| Product Model: | P1.25 |
|---|---|
| Pixel Pitch: | 1.25 mm |
| LED Type: | SMD1010 |
| Module Resolution: | 192*96 pixels |
| Module Size: | 240*120mm |
| Module Weight: | 0.215 kg |
| Cabinet Material: | Iron with painting |
| Driving Type: | 1/48 |
| Brightness: | 600-1000 nits |
| Max Power: | 19 w/pcs |
| Maintenance: | Front & Rear service |
| Environment: | Indoor Use |
| IP Rating: | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting / Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Application
- Creative Designs - Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.
- Outdoor Advertising - Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.
- 360° Displays - Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).
FAQ
Q1: How about your delivery time?
A1: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3: How can you ensure your led display product quality?
A3: Visual World has been enrolled in led display industry for more than 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
Q4: What is the control system? How is it?
A4: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/WiFi iPad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q5: What is your best service?
A5: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
