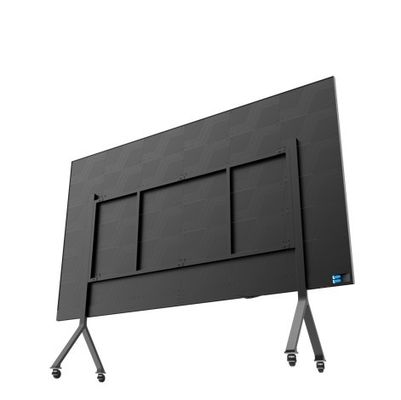

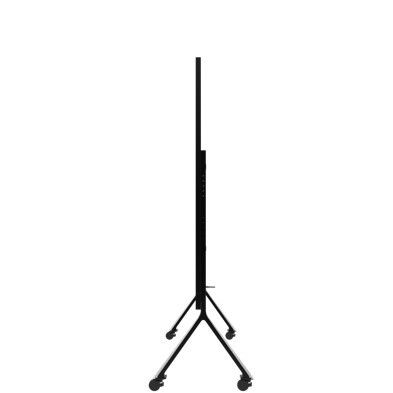

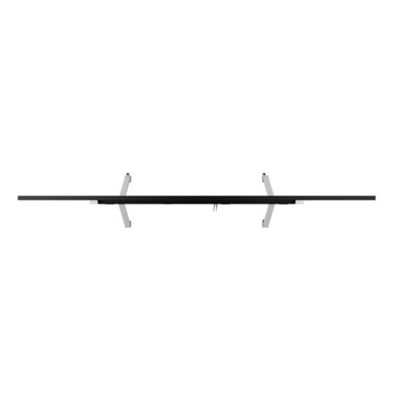

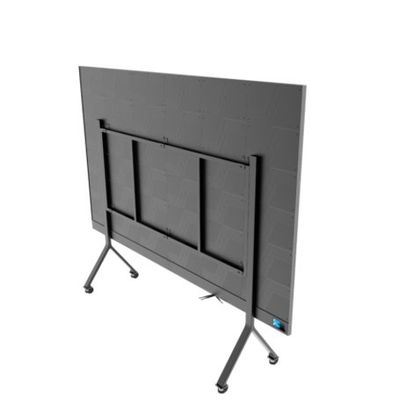

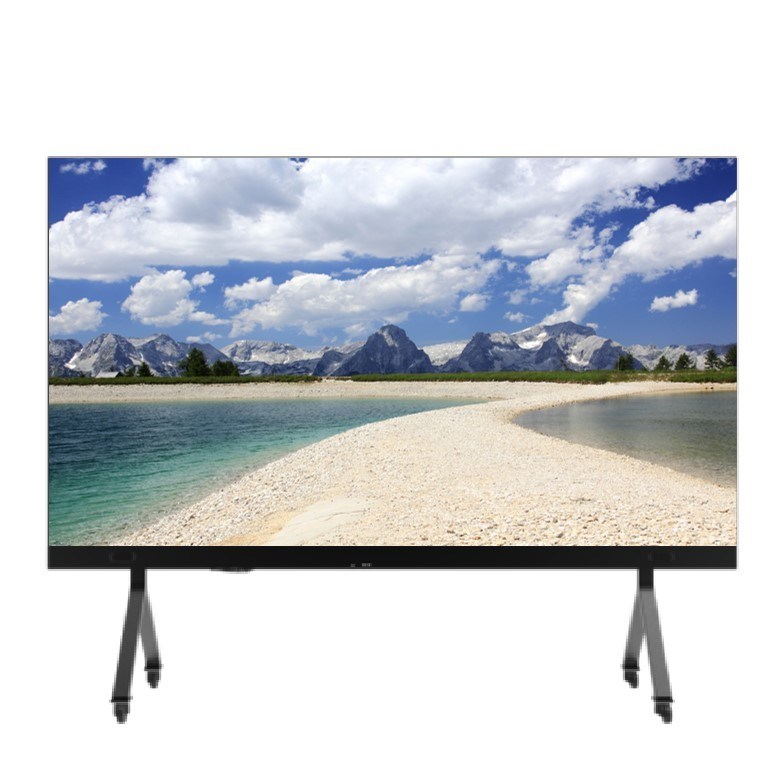

P1.25 Smart Poster LED Screen COB 163" Front Service 600x337.5mm 3840Hz
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.25 Smart Poster LED Screen COB 163" Front Service 600x337.5mm 3840Hz | Pixel Pitch: | 1.25mm |
|---|---|---|---|
| Cabinet Size: | 600*337.5 | Display Size: | 3600*2025mm |
| Display Resolution: | 2880*1620 | IP Rating: | Front:IP65/Rear:lP30 |
| Maintenance: | Front Service | Display Weight: | 245KG (floor Standing) 205KG(wall-mounted) |
| Highlight: | P1.25 COB LED screen,Smart poster display 3840Hz,Front service LED screen 600x337.5mm |
||
Product Description
P1.25 Smart Poster LED Screen COB 163" Front Service 600x337.5mm 3840Hz
PRODUCT DESCRIPTION
The P1.25 Smart Poster LED Screen (16:9 Ratio COB) is a cutting-edge display solution engineered for versatile applications such as exhibitions, advertising, and conferences. With an ultra-fine 1.25mm pixel pitch and an expansive 163-inch screen, it produces exceptionally sharp imagery and vibrant colors that command attention in any setting.
FEATURES
- Ultra-thin: Easy+no need install, just work like a big TV.
- Adjustable height: Suitable for more scenes.
- Wireless screen sharing: Supports wireless screen sharing on Windows, Mac OS, iOS, and Android systems.
- File management: Supports file management and playback, management file deletion can be single-selected or all-selected, and files can be classified into pictures, music, videos, etc.
TECHNICAL SPECIFICATIONS
| Model | CrystalTV 163 "(6×6) |
|---|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| Cabinet Dimension(mm) | 600*337.5 |
| Module Size(mm) | 150×168.75 |
| LED Type | COB |
| Display Size(mm) | 3600*2025 |
| Display Resolution | 4608*2592 | 3840*2160 | 2880*1620 | 2304*1296 |
| Display Weight | 245KG (floor standing) 205KG(wall-mounted) |
| Driving Type | 1/36 | 1/54 or 1/36 | 1/60 or 1/27 | 1/48 |
| Maintenance | Front service |
| Brightness | 600/2000nits | 600/2000nits | 600/1500nits | 600/1000nits |
| Max/Avg Power | 196/65W/m² | 280/95W/m² | 330/110W/m² | 330/100W/m² |
| IP Rating | Front:IP65/Rear:lP30 |
| Refresh Rate | >3840Hz |
| Installation Type | standing/Mouting/Hanging |
| Gray Scale | 16bit |
| Viewing Angle | H: 170° V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%~90%RH |
APPLICATION
- Conference room
- Lecture theater
- Multimedia room
- Educational establishment
- Telemedicine
SUPPORT AND SERVICE
Pre-Sale Service:
- Respond to inquiries within 24 hours.
- Provide market research, forecasts, and tailored solutions.
- Offer datasheets, samples, custom packaging design, and factory visits upon request.
In-Sale Service:
- Monitor production and share photos/videos as requested.
- Supply spare parts at no extra cost.
After-Sale Service:
- Address complaints within 24 hours and resolve issues within 48 hours.
- 24-month warranty included.
- Free technician training and comprehensive documentation (installation guides, manuals, maintenance guides, software CDs) are provided.
FAQ
Q1: How about your delivery time?
A1: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3: How can you ensure your led display product quality?
A3: Visual World has been enrolled in led display industry for more than 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
Q4: What is the control system? How is it?
A4: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/WiFi iPad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q5: What is your best service?
A5: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
Want to Know more details about this product
