P8 Adhesive Transparent LED Display 3mm Thickness 80% Transparency 3.5kg Per Panel
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC,FCC |
| Model Number: | TP8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Export carton box, Plywood case |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P8 Adhesive Transparent LED Display 3mm Thickness 80% Transparency 3.5kg Per Panel | Pixel Pitch: | P6/P8/P10 |
|---|---|---|---|
| Brightness: | 1500-3000nits | Module Size: | 1000*240mm |
| Thickness: | 3mm | Transparency: | 65%/70%/80% |
| IP Rating: | IP43 | Weight: | 3.5kg |
| Highlight: | adhesive transparent LED display 3mm thickness,transparent LED display 80% transparency,LED display panel 3.5kg weight |
||
Product Description
P8 Adhesive Transparent LED Display 3mm Thickness 80% Transparency 3.5kg Per Panel
Product Description

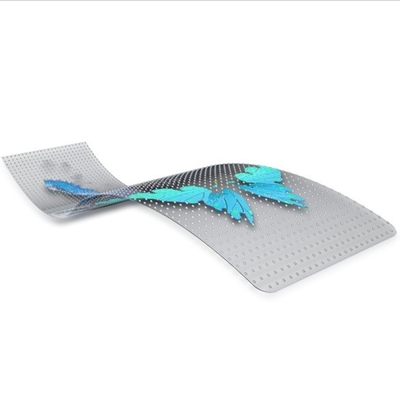

The P8 adhesive transparent LED display is paper-thin and lightweight, seamlessly adhering to curved surfaces like a sticker. The flexible substrate can be freely bent to fit the shaped space. Subvert the traditional installation mode, which can be quickly completed without bracket deployment, for architectural curtain walls, and window displays offer an invisible display technology.
Product Quick Details
- Adhesive film LED display for glass applications
- Lightweight at 3.5 kg per panel
- Easy and quick to install
- High brightness options of 1500-3000 nits
Features

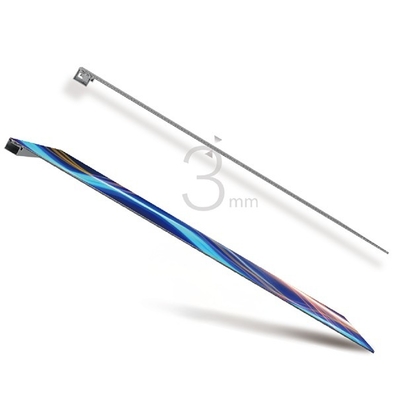

- Ultra thin: 3mm thickness makes it the thinnest led display in the market.

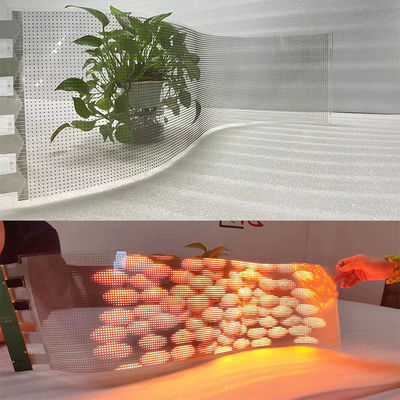

- Flexible: Bendable adhesive film led panel, can fit on curved glass wall.
- High transparency: Transparent film makes it up to 80% transparency rate. Best choice for store window glass.
- UV Resistance: Anti-UV material to avoid to become yellowish.
- Clipping size: The film panel is cuttable to meet different installation condition such irregular glass.
Technical Parameters
| Product Model | TP6 | TP8 | TP10 |
|---|---|---|---|
| Pixel Pitch | 6*6mm | 8*8mm | 10*10mm |
| LED Type | SMD2121 | ||
| Module Dimension(mm) | 1000*240*3mm | ||
| Weight | 3.5kg/panel | ||
| Brightness | 1500-3000nits | ||
| Transparency | 65% | 70% | 80% |
| Max/Avg Power(m²) | 800/280w/m² | ||
| IP Rating | IP43 | ||
Applications
- Building glass facade
- Shopping center glass wall
- Store window glass
- Brand flagship store
- Glass hall and corridor
FAQ
Q1: How about your delivery time?
A1: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3: How can you ensure your led display product quality?
A3: Visual World has been enrolled in led display industry for more than 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
Q4: What is the control system? How is it?
A4: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/WiFi iPad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q5: What is your best service?
A5: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen;
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
Want to Know more details about this product
