P1.25 Fine Pitch LED Display Flip-COB Front Service 4kg/Cabinet 600X337.5mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pitch LED Display Flip-COB Front Service 4kg/Cabinet 600X337.5mm | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aluminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P1.25 fine pitch LED display,Flip-COB front service LED,600X337.5mm LED display cabinet |
||
Product Description

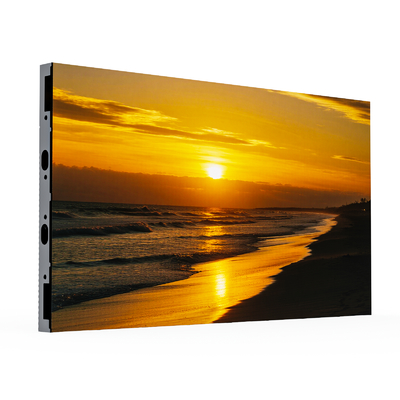

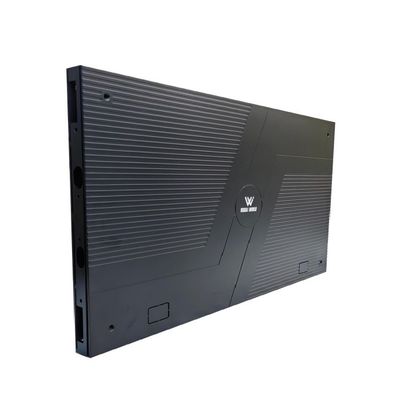

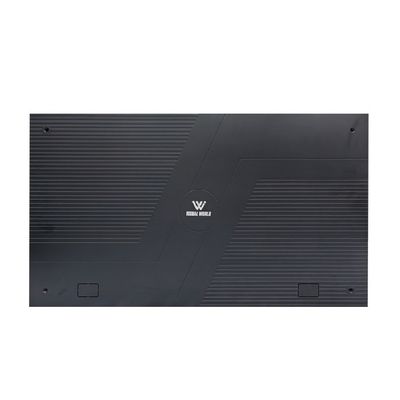

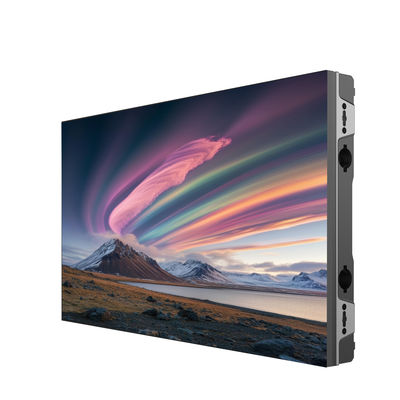

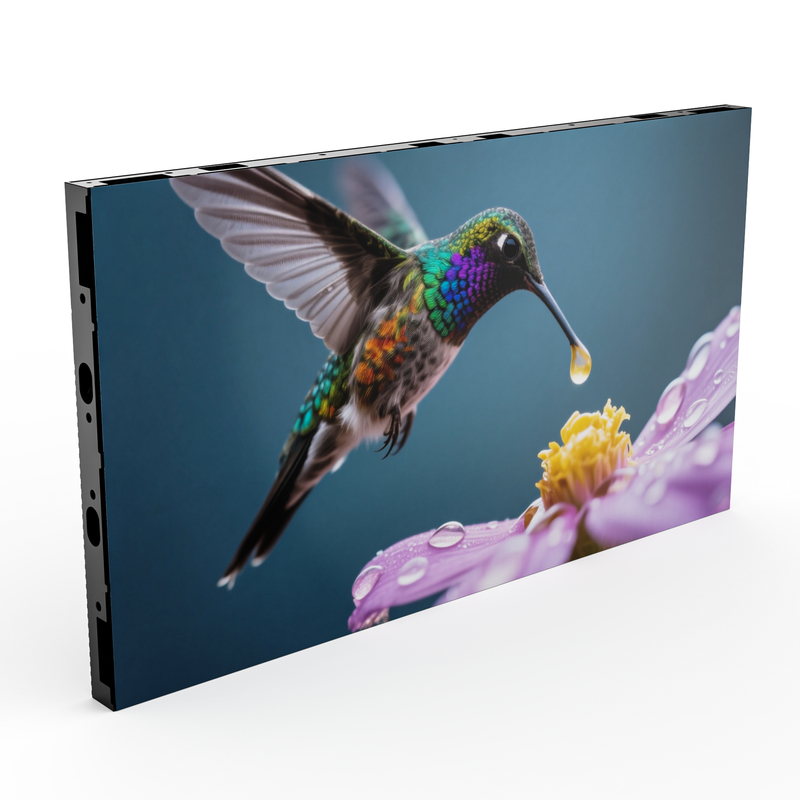

P1.25 Fine Pitch LED Display Flip-COB Front Service 4kg/Cabinet 600X337.5mm
P1.25 Fine Pitch LED Display Flip-COB Front Service 4kg/Cabinet 600X337.5mm
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size(mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Scan Mode | 1/36 | 1/54 or 1/36 | 1/60 or 1/27 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| Waterproof Level | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
Applications
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment
FAQ
Q1: How about your delivery time?
A1: Generally, it will take 15 to 25 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3: How can you ensure your led display product quality?
A3: Visual World has been enrolled in led display industry for more than 10 years, and professional R&D team and skilled QC team with standard process to assure quality products.
Q4: What is the control system? How is it?
A4: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/WiFi iPad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Q5: What is your best service?
A5: One to one sales engineer to customer responsibility system. We will do:
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
1. Know your project and provide the best solution for it
2. Track your order and let you know each step and detail of it
3. Teach you how to install and use the screen
4. Care the subsequent use of your screen and ensure your after-sales service be well
5..6... etc.
